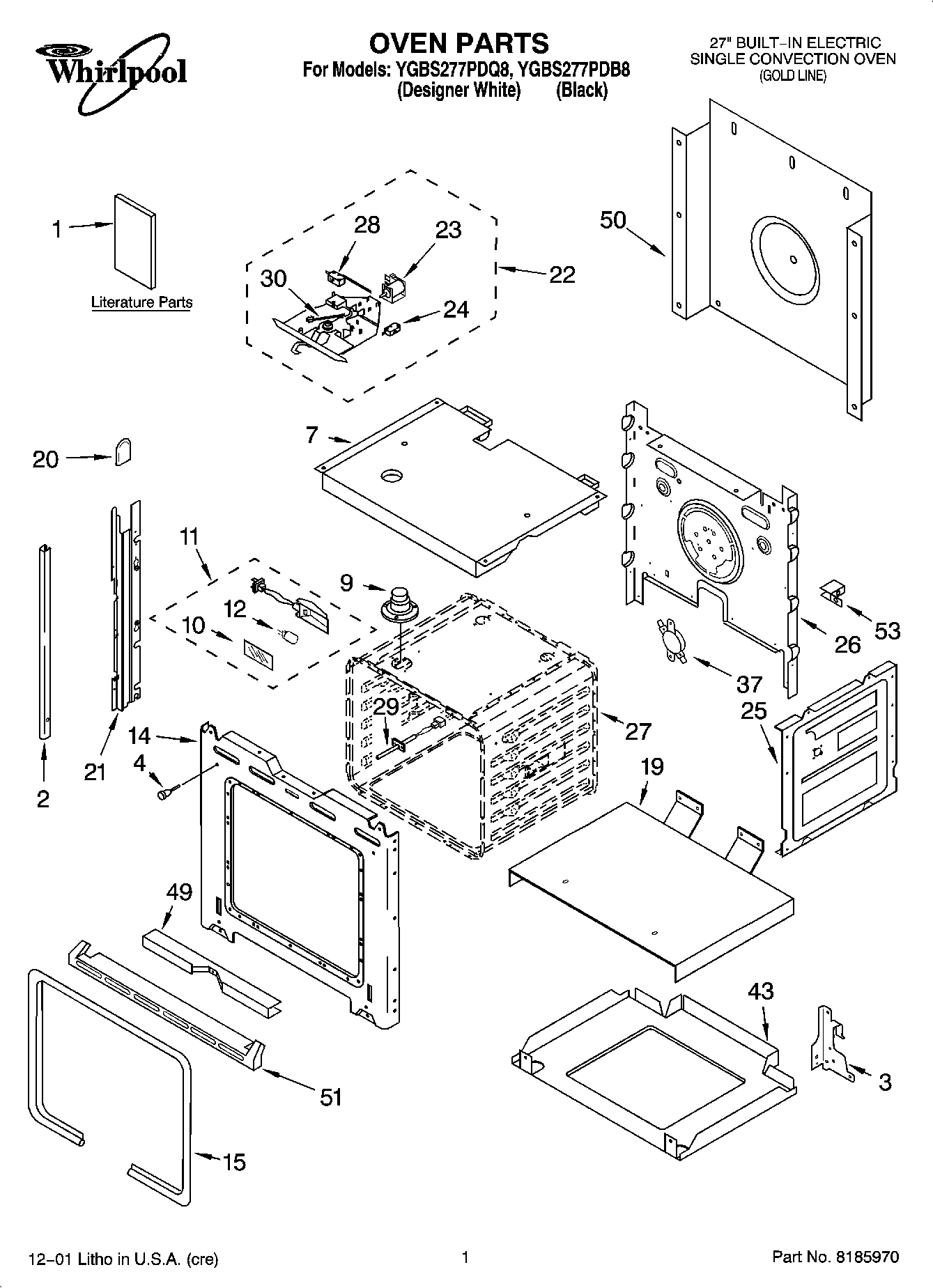

YGBS277PDQ8 01 – OVEN PARTSadmin2025-04-26T11:06:32+00:00YGBS277PDQ8 01 – OVEN PARTS
Products
| Position | Product |
|---|
| 1 | Safer Cooking Tips |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Use & Care Guide (French)) |
| 1 | Literature Parts (Use & Care Guide) |
| 2 | Trim, Side (White, Right) |
| 2 | WP8281236 Whirlpool Screw |
| 2 | WP694091 Whirlpool Screw |
| 2 | Trim, Side (RH Black) |
| 2 | Trim, Side (LH Black) |
| 2 | Trim, Side (LH White Screw) |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 4 | 4448520 Whirlpool Oven Bumper |
| 7 | Top, Chassis |
| 9 | W10861715 Whirlpool Vent Tube |
| 9 | SCREW |
| 10 | Lens, Light |
| 11 | WPW10734065 Whirlpool Light |
| 12 | WP4173175 Whirlpool Light Bulb |
| 14 | Frame, Front |
| 14 | Screw |
| 14 | WP4450118 Whirlpool Nut |
| 15 | WP4455381 Whirlpool Door Gasket |
| 19 | Support, Insulation |
| 20 | Cap, Spacer |
| 21 | WP4448444 Whirlpool Grommet |
| 21 | 814372 Whirlpool Oven Rail Mount |
| 21 | 814371 Whirlpool Oven Rail Mount |
| 22 | Latch Assembly |
| 23 | Solenoid |
| 24 | Microswitch N.C. |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not serviceable) |
| 28 | Microswitch |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 30 | Spring, Latch |
| 37 | WP9759243 Whirlpool Thermostat |
| 43 | Base, Chassis |
| 49 | WP4449154 Whirlpool Screw |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | WP4451747 Whirlpool Rear Cover |
| 51 | WPL 4448476 |
| 51 | WP3400832 Whirlpool Screw |
| 51 | Tri |
| 53 | WP4449809 Whirlpool Screw |
| 53 | WPL 4449315 |
| 53 | WPL 4449845 |
| 53 | WPL 4450364 |
| 53 | FOLLOWING PARTS NOT ILLUSTRATED INSULATION |
