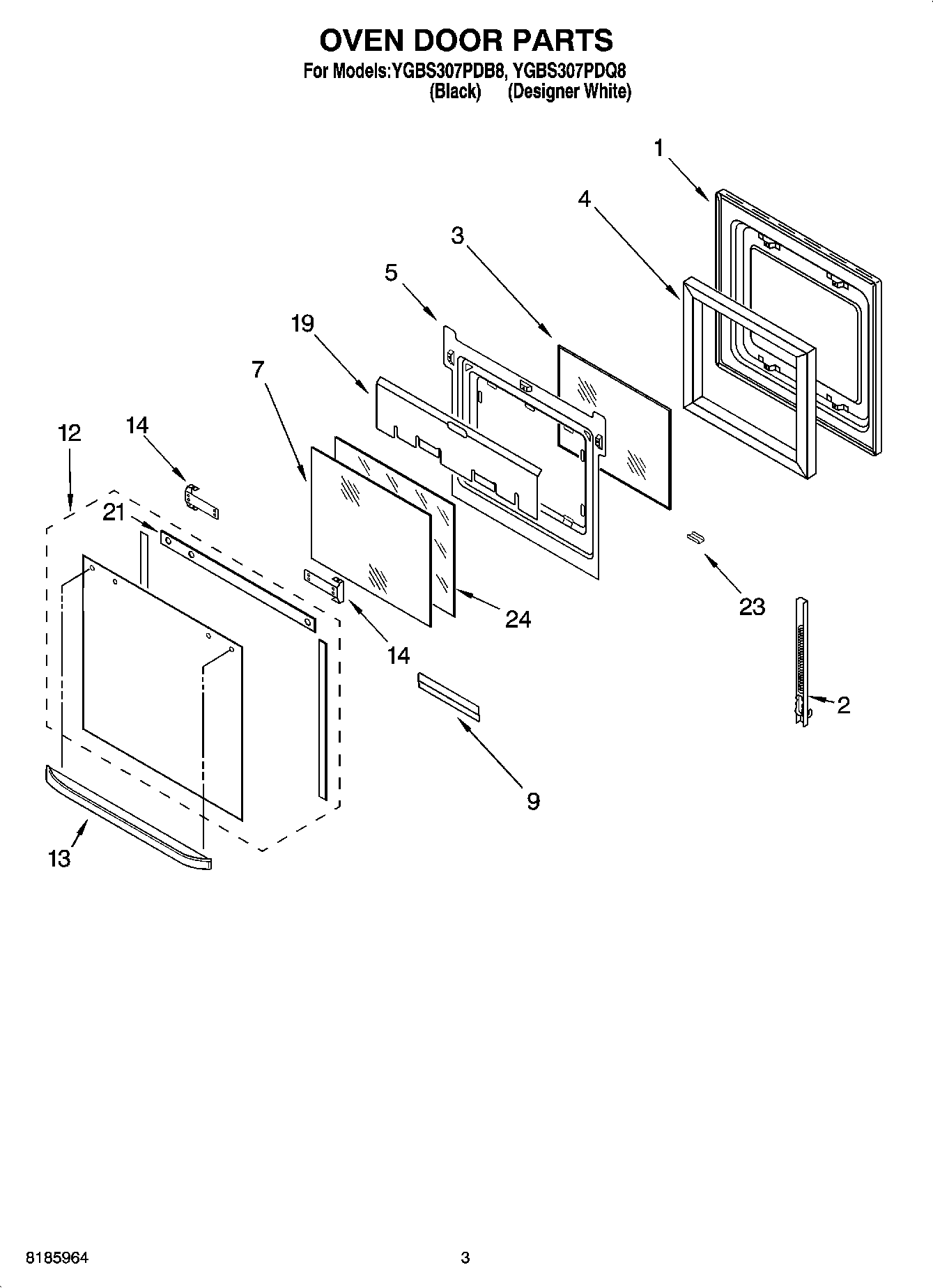

YGBS307PDB8 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass (White Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
19	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	WP4449743 Whirlpool Screw
24	Glass, Inner
