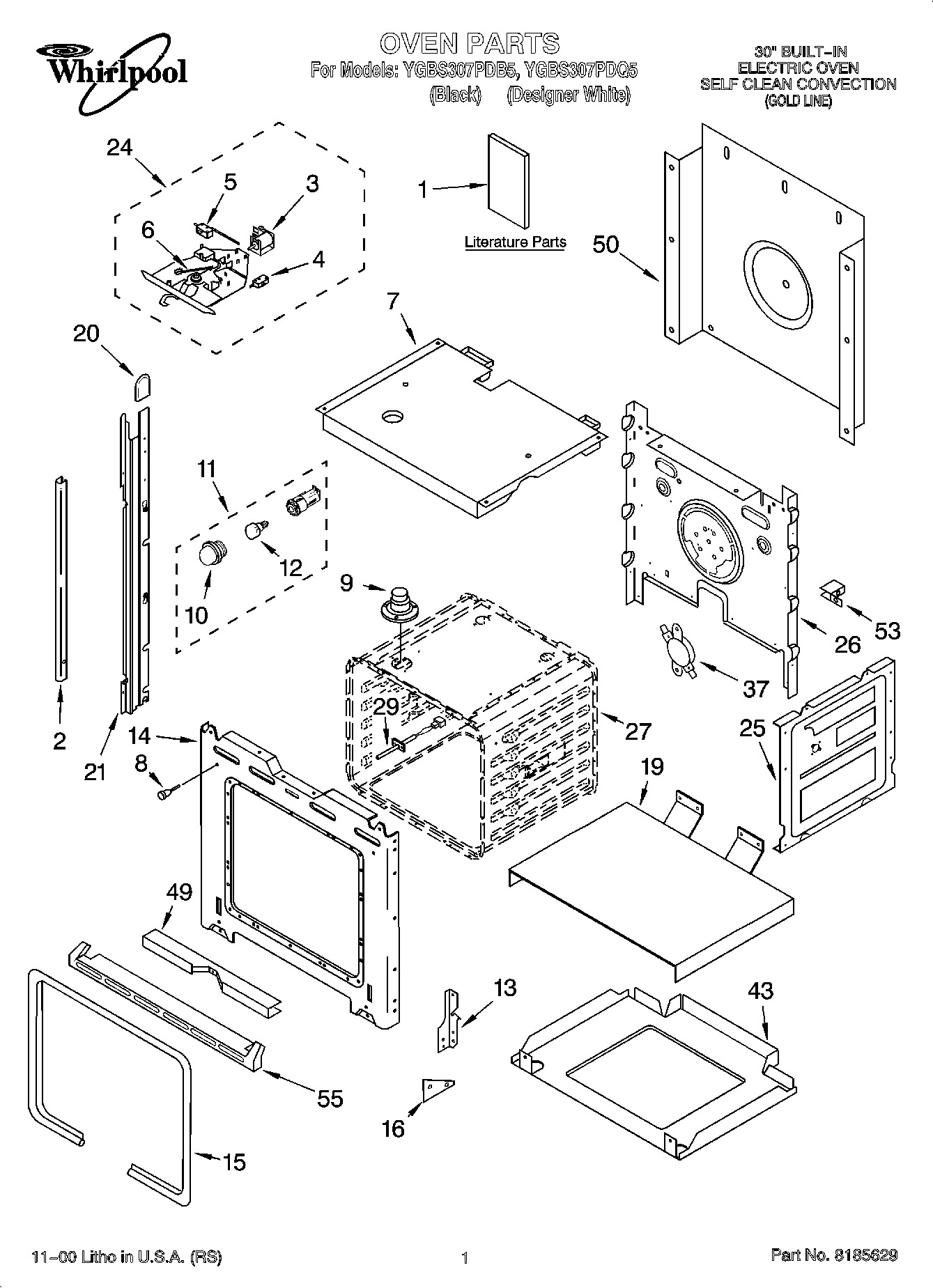

YGBS307PDQ5 01 – OVEN PARTS

YGBS307PDQ5 01 – OVEN PARTS

Written by

in

YGBS307PDQ5 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Use & Care Guide) (French)
1Literature Parts (Installation Instructions)
1Use & Care Guide
1Literature Parts (Tech Sheet)
2Trim, Side (LH White Screw)
2Trim, Side (LH Black)
2Trim, Side (White, Right)
2Trim, Side (RH Black)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
3Solenoid
4Microswitch N.C.
5Microswitch
6Spring, Latch
7Top, Chassis
84448520 Whirlpool Oven Bumper
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Reciever, Hinge (Left Hand)
13Reciever, Hinge (Right Hand)
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16WP4455509 Whirlpool Support Bracket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
24Latch Assembly
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55WPL 4448478
55WPL 4450365
55Screw, (2)
55WPL 4448477
55W11684730 Whirlpool Insulation
55WPL ARI136397A
