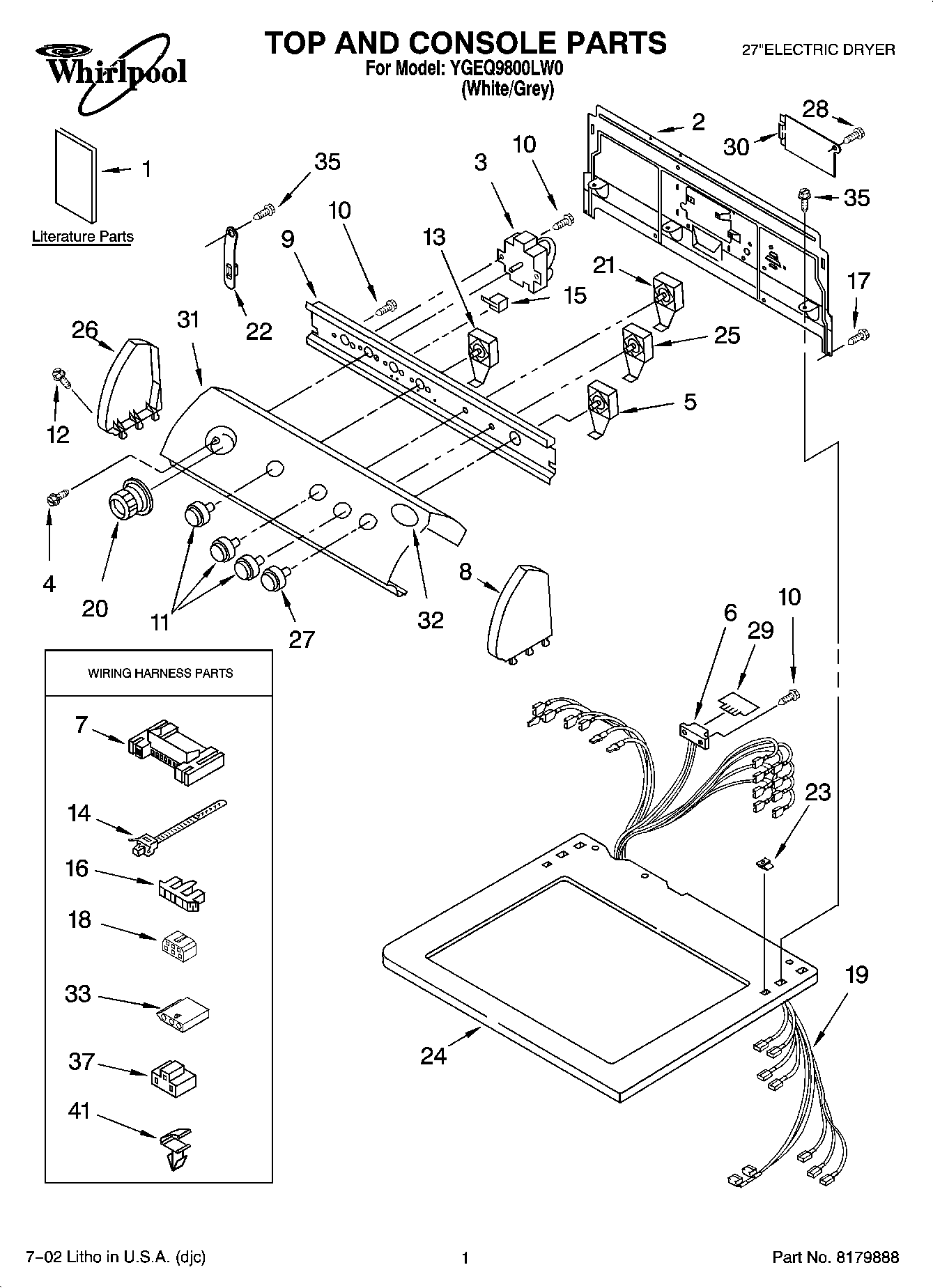

YGEQ9800LW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Dryer
1	Literature Parts (Instructions Installation)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Wiring Diagram)
2	285909 Whirlpool Rear Panel
3	WP3406725 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398094 Whirlpool Push To Start Switch
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	KNOB
12	WP388326 Whirlpool Screw
13	8528330 Whirlpool Temperature Control Switch
14	WP3391018 Whirlpool Wire Tie
15	WP694419 Whirlpool Buzzer Adjuster
16	Connector, Timer
17	WP693995 Whirlpool Screw
18	Block, Disconnect
19	Harness, Electric
20	WP8557455 Whirlpool Knob Timer
21	3405154 Whirlpool Primary Switch
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top
25	3405152 Whirlpool Switch Assembly
27	Knob, Push-To-Start (LGR5636LW0)
28	WPW10119283 Whirlpool Terminal Cover
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30	WP90767 Whirlpool Screw
31	Panel, Control (Includes Illus. 32)
32	Medallion
33	3936144 Whirlpool Connector
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
