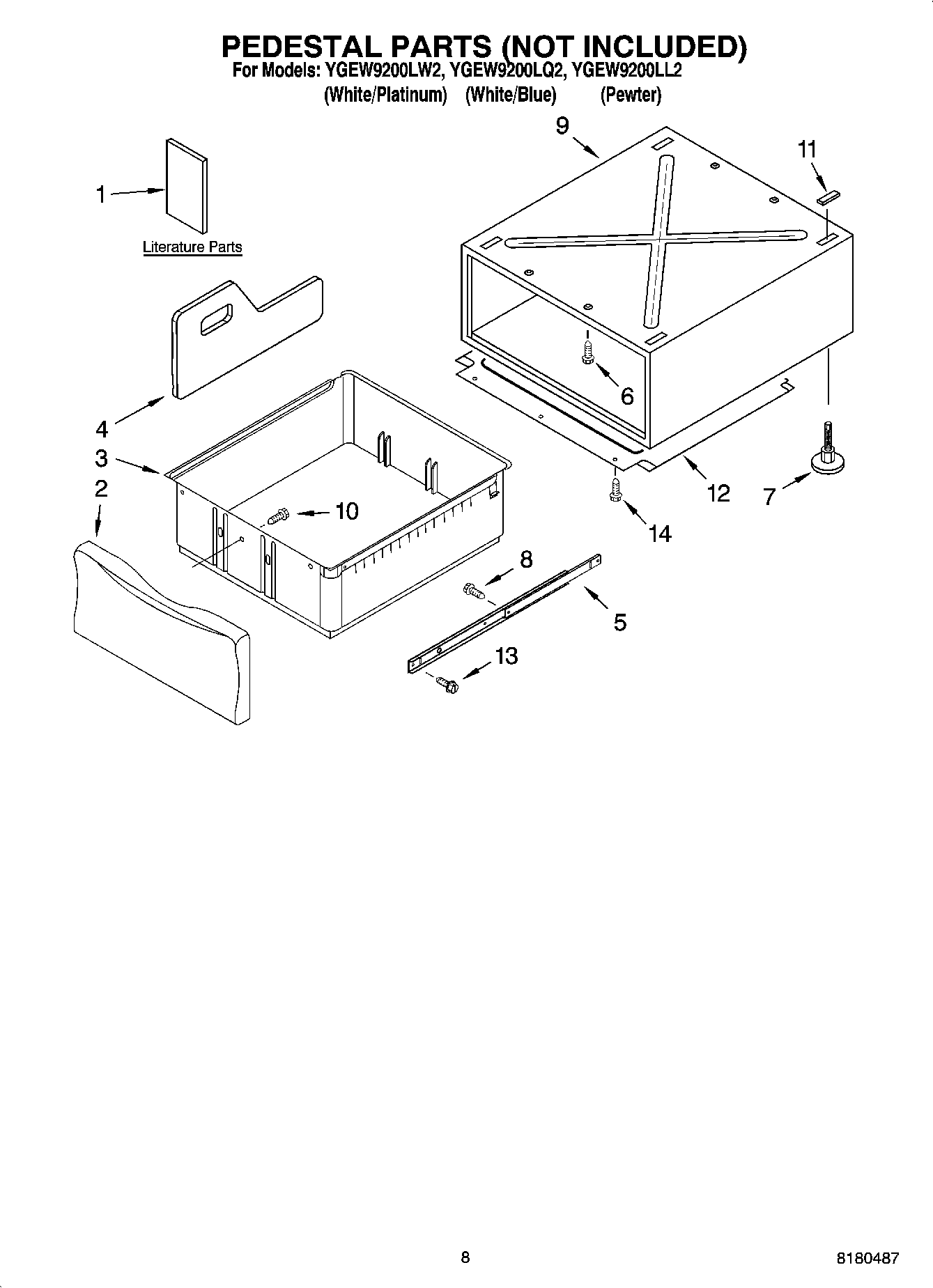

YGEW9200LQ2 05 – PEDESTAL PARTS (NOT INCLUDED), OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	8541503 Whirlpool Stacking Kit
	WP4396174 Whirlpool Touch-Up Paint
	ACCESSORY PARTS, KIT, HOLD DOWN
	4392067 Whirlpool Dryer Repair Kit
	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
	W11224254 Whirlpool Test Kit
	Blue
	Platinum
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	ACCESSORY PARTS
	8530072 Whirlpool Door Kit
1	Literature Parts (Installation Instructions)
1	Literature Parts (Parts List)
2	Drawer Front Assembly (Meteorite)
2	Drawer Front Assembly (Pewter)
2	Drawer Front Assembly (Graphite)
2	Drawer Front Assembly (Biscuit)
2	Drawer Front Assembly (White)
3	For LAB2700PMT
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4	Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4	For LAB2700PMT
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP1163283 Whirlpool Air Conditioner Screw
11	Pad (4)
12	Pan, Bottom
13	WP9740848 Whirlpool Dishwasher Screw
14	WP90767 Whirlpool Screw
