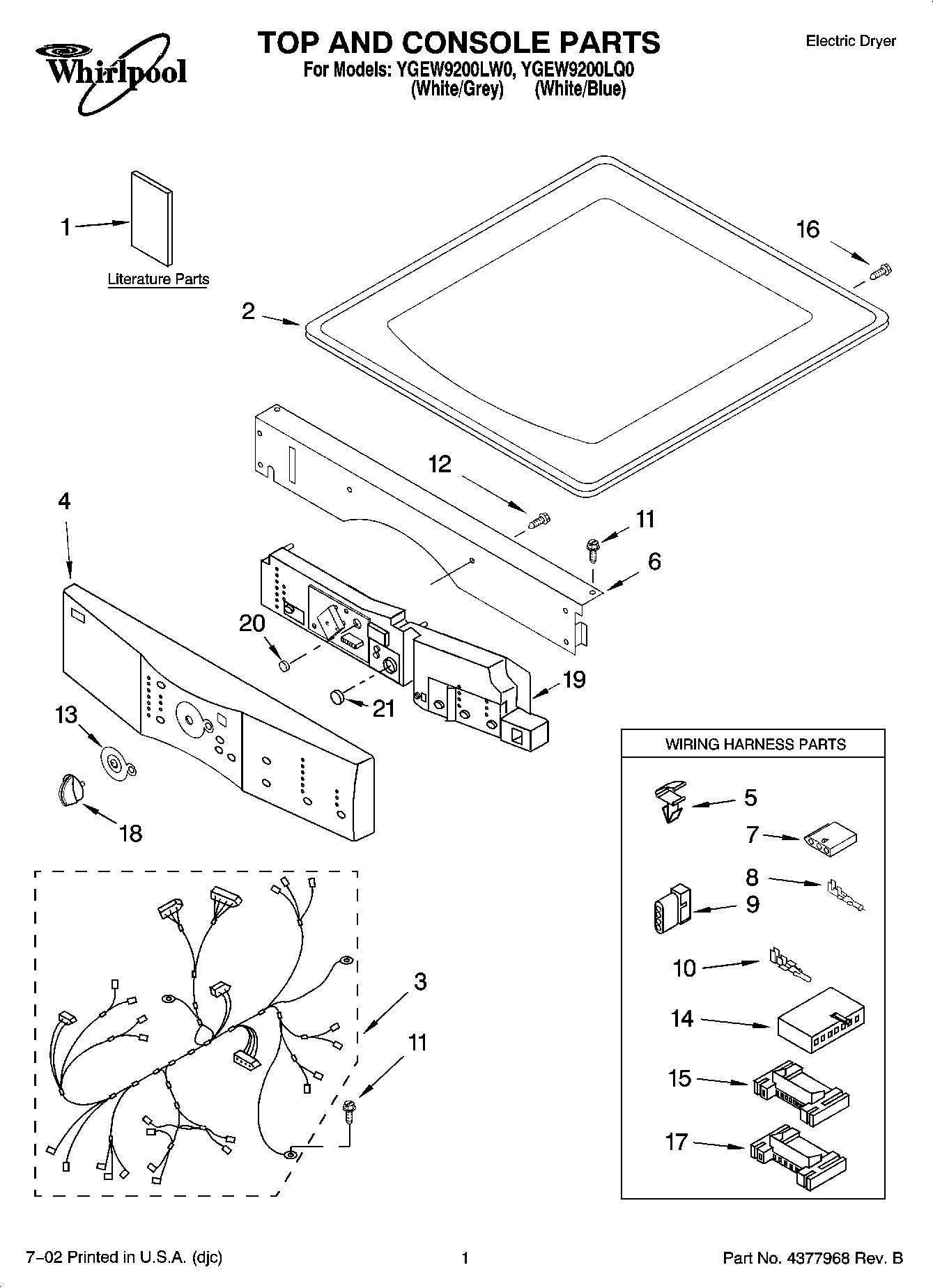

YGEW9200LW0 01 – TOP AND CONSOLE PARTS

YGEW9200LW0 01 – TOP AND CONSOLE PARTS

Written by

in

YGEW9200LW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
1Literature Parts (Label, Energy Guide)
1Literature Parts (Wiring Diagram)
2Top (White)
3Harness, Main
4Panel, Console (Blue)
4Panel, Console (Platinum)
5WP3394427 Whirlpool Clip
6Bracket, Console
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WP488787 Whirlpool Refrigerator Screw
13Bezel, Cycle
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16Screw, 8-18 x 1/2
172203186 Whirlpool Connector
18WP8181859 Whirlpool Knob
18WP8181881 Whirlpool Knob
19User Interface (Platinum)
19User Interface (Blue)
20Button, Start
21Button, Pause/Cancel
