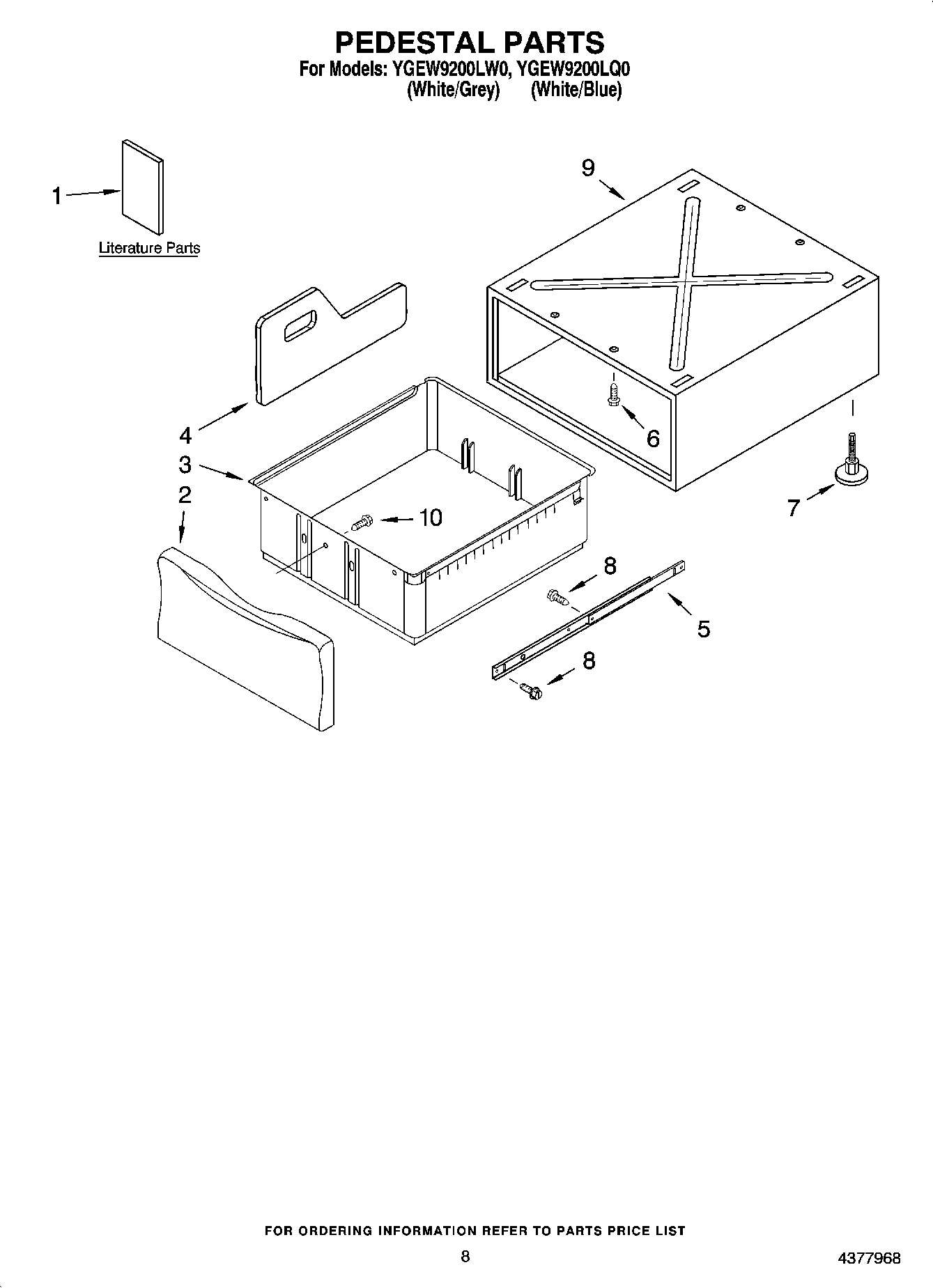

YGEW9200LW0 05 – PEDESTAL PARTS

Products

Position	Product
1	Literature Parts (Parts List)
1	Literature Parts (Installation Instructions)
2	Drawer Front Assembly (White)
2	Drawer Front Assembly (Biscuit)
2	Drawer Front Assembly (Graphite)
3	Drawer
4	Divider, Drawer (Set Of 2)
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP694091 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP488729 Whirlpool Refrigerator Door Screw
