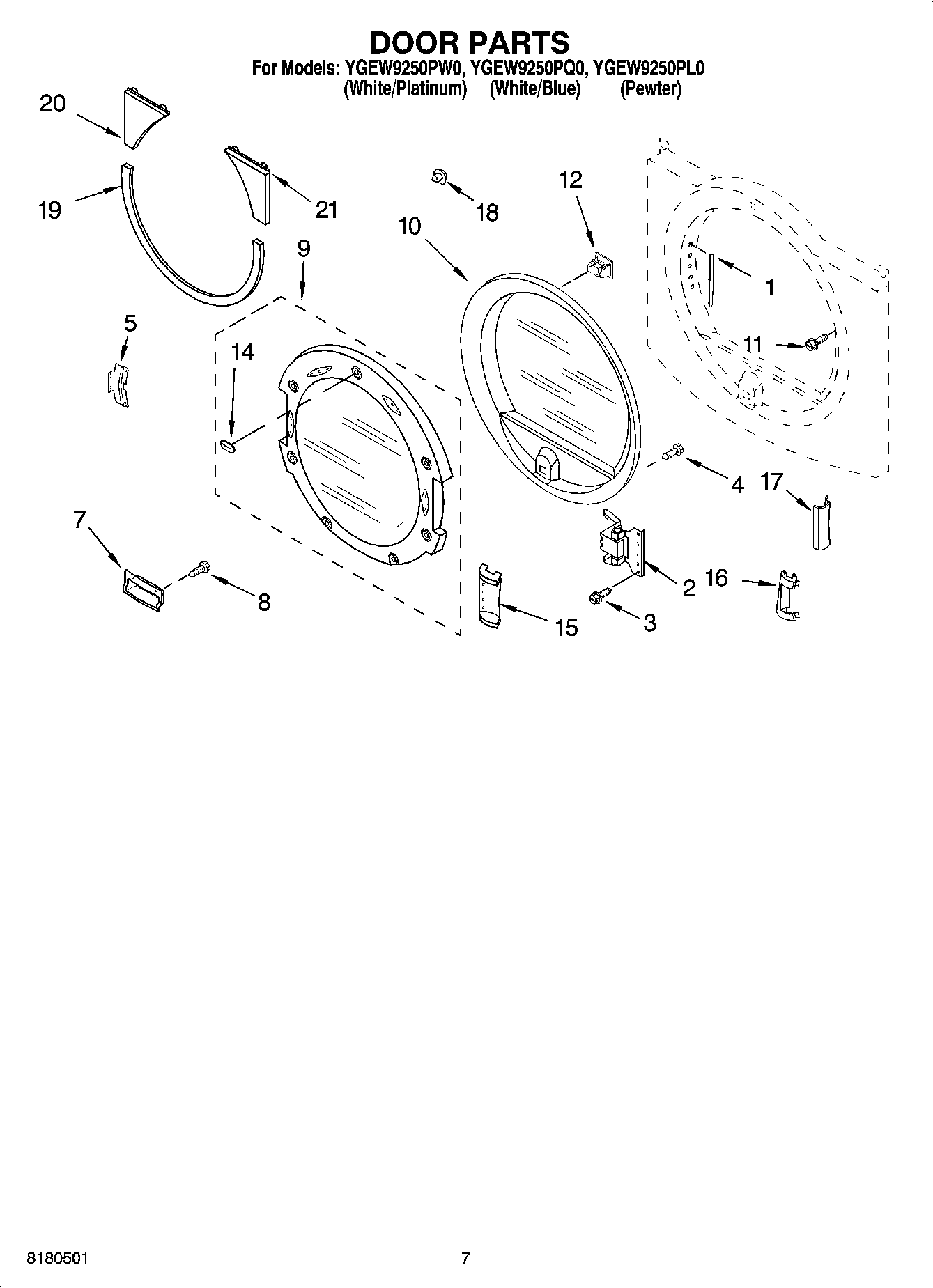

YGEW9250PW0 04 – DOOR PARTS

Products

Position	Product
1	Plug, Strip
2	280200 Whirlpool Hinge Assembly
3	Screw, 10-32 x 1/2
4	SCREW
5	Bracket, Handle
7	Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Pewter)
7	Handle, Door Assembly (LH) (Platinum)
7	Handle, Door Assembly (LH) (Blue)
7	Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Platinum)
7	Handle, Door Assembly (LH) (Pewter)
7	Handle, Door Assembly (LH) (Following Parts Not Included) Handle, Door Assembly (RH) (Blue)
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer) (Blue)
9	Door Assembly (Outer) (Pewter)
9	Door Assembly (Outer) (Platinum)
10	Inner Door Assembly (Includes Illus. 5, 8 & 20)
11	WP355515 Whirlpool Screw
12	WP3389441 Whirlpool Door Catch
14	Badge, Assembly
15	Filler Handle (LH) (Blue)
15	Filler Handle (LH) (Platinum)
15	Filler Handle (LH) (Blue)
15	Filler Handle (LH) (Pewter)
15	Filler Handle (LH) (Platinum)
15	Filler Handle (LH) (Pewter)
16	WPL 8559714
16	WPL 8559713
16	WPL 8559712
16	WPL 8559718
16	WPL 8559719
16	WPL 8559715
17	WPL 8559724
17	WPL 8559722
17	WPL 8559549
18	Clip, Trim Panel
19	WPL 8558683
19	WPL 8558685
19	WPL 8558682
20	WPL 8558686
20	WPL 8558692
20	WPL 8558687
21	WPL 8558688
21	WPL 8558689
21	WPL 8558693
