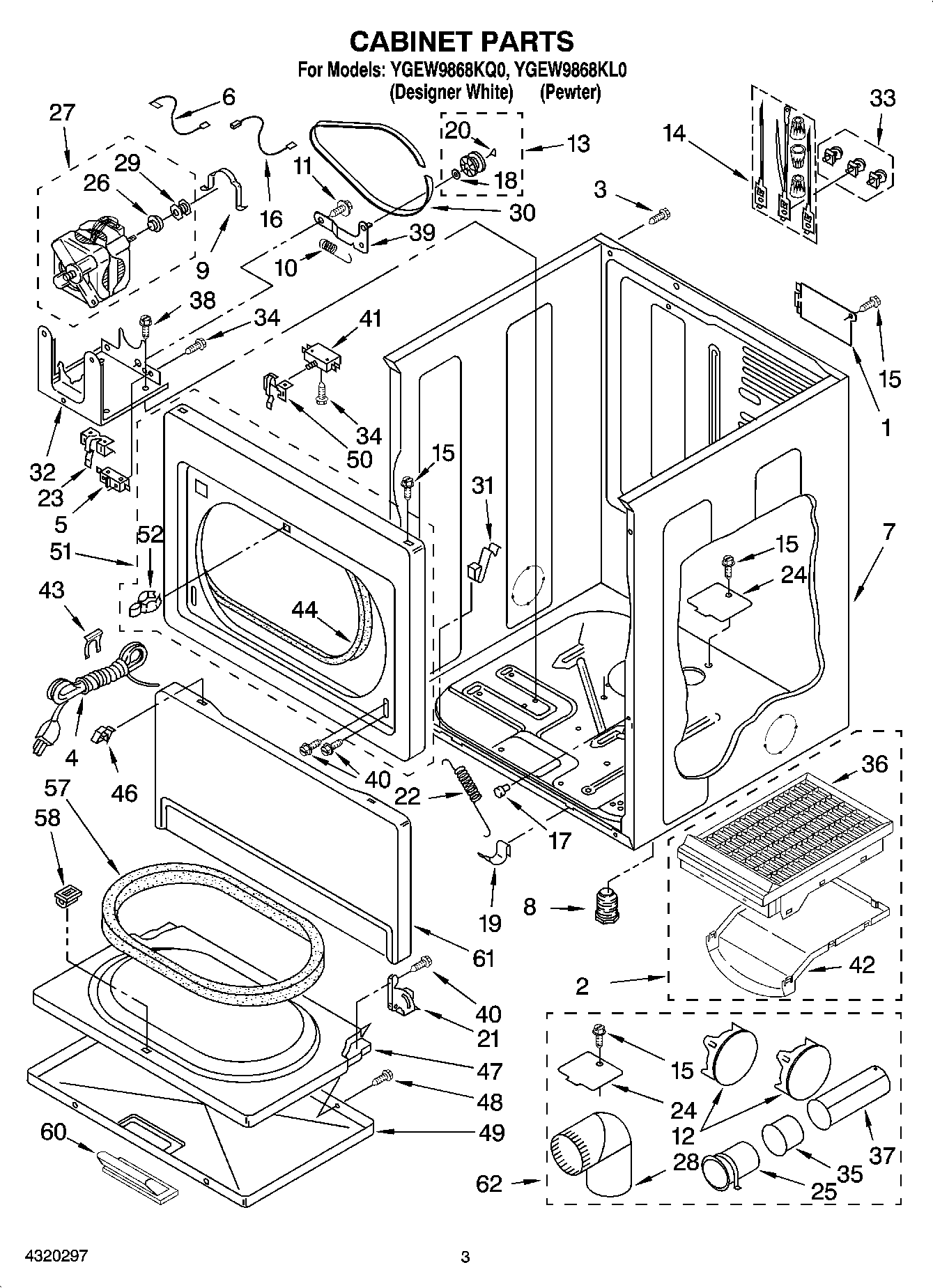

YGEW9868KQ0 02 – CABINET PARTS
Written by
in
YGEW9868KQ0 02 – CABINET PARTS
Products
Position
Product
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
WP4396174 Whirlpool Touch-Up Paint
1
WPW10119283 Whirlpool Terminal Cover
3
W10850756 Whirlpool Screw
4
CORD-POWER
5
279782 Whirlpool Lid Switch
6
3398948 Whirlpool Wire
7
Cabinet (Pewter)
7
W11417441 Whirlpool Cabinet
8
49621 Whirlpool Leveling Feet
9
WP660658 Whirlpool Clamp
10
WPW10446781 Whirlpool Spring
11
WP3389420 Whirlpool Screw
12
WPW10404617 Whirlpool Plug Assembly
13
279640 Whirlpool Dryer Idler Pulley Kit
14
279318 Whirlpool Terminal
15
WP488729 Whirlpool Refrigerator Door Screw
16
Wire, Belt Switch
17
693152 Whirlpool Bumper
18
WPW10121334 Whirlpool Washer
19
WP297092 Whirlpool Clip
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
WP3387559 Whirlpool Door Hinge
21
WP3387560 Whirlpool Door Hinge
22
WP3387565 Whirlpool Door Spring
23
WP8066120 Whirlpool Lever Assembly
24
WPW10354249 Whirlpool Cover
25
WP8563747 Whirlpool Exhaust Pipe
26
WP3393657 Whirlpool Belt Retainer
27
279787 Whirlpool Dryer Drive Motor
28
WPW10416072 Whirlpool Elbow
29
W10837625 Whirlpool Dryer Motor Pulley
30
661570V Whirlpool Dryer Drum Belt
31
Clip, Lint Duct
32
WP3387118 Whirlpool Base Assembly
33
279393 Whirlpool Terminal Block Screw and Nut Kit
34
WP98129 Whirlpool Screw
35
WPW10331278 Whirlpool Exhaust Pipe
37
WP8563749 Whirlpool Exhaust Pipe
38
SCREW
39
W10837240 Whirlpool Dryer Idler Pulley
40
WP308685 Whirlpool Microwave Screw
41
W10820036 Whirlpool Door Switch Kit
42
8212450A Whirlpool Dryer Rack Assembly
43
W11712577 Whirlpool Clip
44
WP3387242 Whirlpool Seal
46
WP3388229 Whirlpool Dryer Spring Clip
47
Door, Rear
48
WP694091 Whirlpool Screw
49
Door, Front (White)
49
Door, Front (Pewter)
50
WP691581 Whirlpool Actuator
51
PANEL, FRONT (WHITE)
51
Upper Front Panel (Pewter)
57
W10823582 Whirlpool Door Seal
58
279570 Whirlpool Dryer Door Latch Kit
60
WPL 8521931
60
WPL 8521932
61
WP3406797 Whirlpool Toe Panel
61
WPL 3979197
62
W10470674 Whirlpool Dryer Side Vent Exhaust Kit
←
