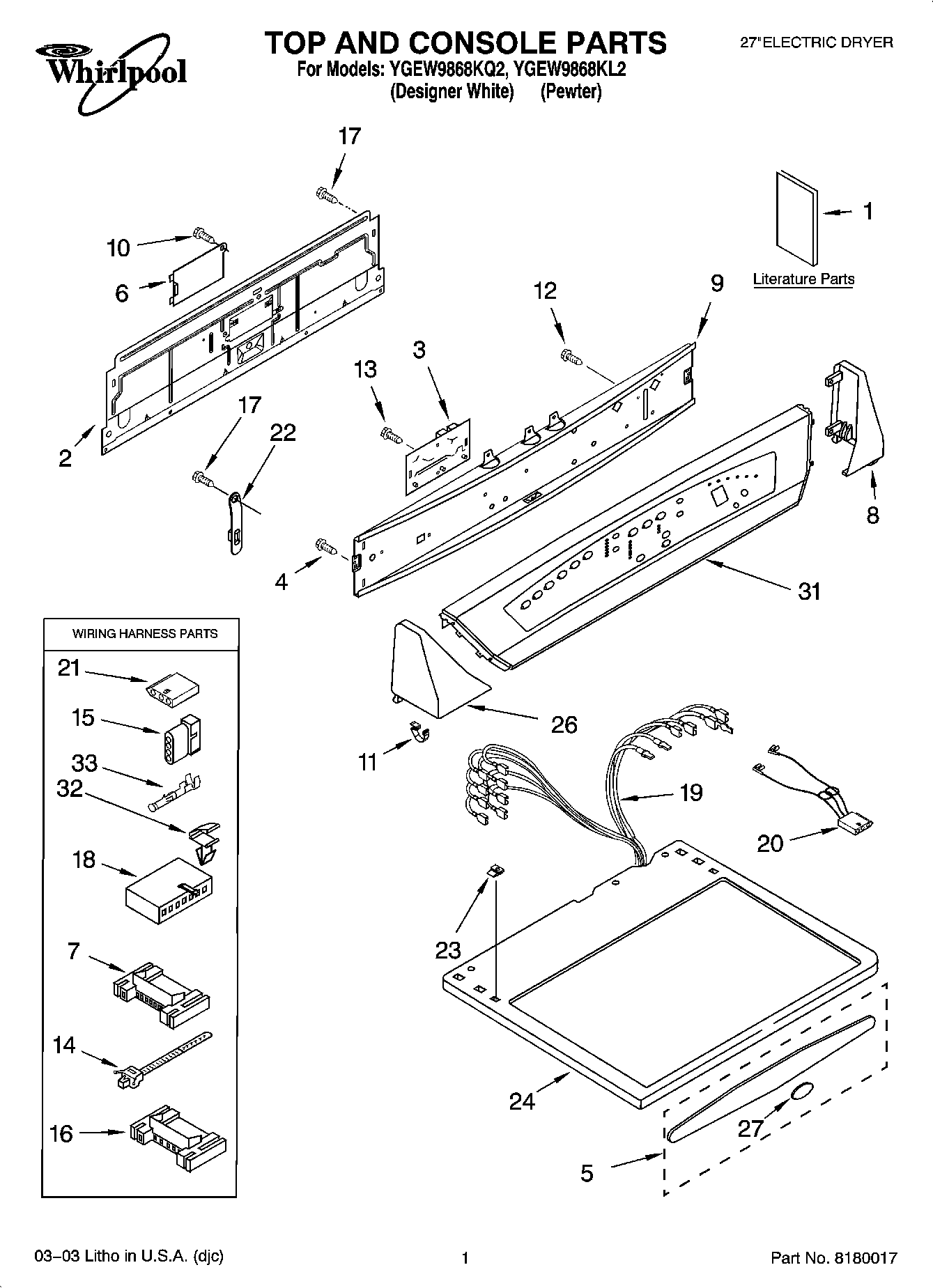

YGEW9868KQ2 01 – TOP AND CONSOLE PARTS

YGEW9868KQ2 01 – TOP AND CONSOLE PARTS

Written by

in

YGEW9868KQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Instructions Installation)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Tech Sheet)
1Literature Parts (Label, Energy Guide)
1Literature Parts (Guide, Use & Care)
1Dryer
2Panel, Rear Console
3Control Board
4WP304231 Whirlpool Dishwasher Screw
5Medallion Assembly (Sage)
5Medallion Assembly (Pewter)
6WPW10119283 Whirlpool Terminal Cover
73395683 Whirlpool Connector
8Cap, End (R.H.) (Pewter)
8Cap, End (R.H.) (White)
9Bracket, Control
10WP90767 Whirlpool Screw
11WP8312709 Whirlpool Endcap Clip
123400073 Whirlpool Screw
133400826 Whirlpool Screw
14WP3391018 Whirlpool Wire Tie
15353424 Whirlpool Connector
162203186 Whirlpool Connector
17WP693995 Whirlpool Screw
183936150 Whirlpool Connector
19Harness, Electric
20WP3406653 Whirlpool Wire Harness
213936144 Whirlpool Connector
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (White)
24Top (Pewter)
26Cap, End (L.H.) (White)
26Cap, End (L.H.) (Pewter)
27Medallion
31Panel, Console (Includes Keyswitch) (Pewter)
31Panel, Console (Includes Keyswitch) (Pearl)
32WP3394427 Whirlpool Clip
33WP94614 Whirlpool Terminal
