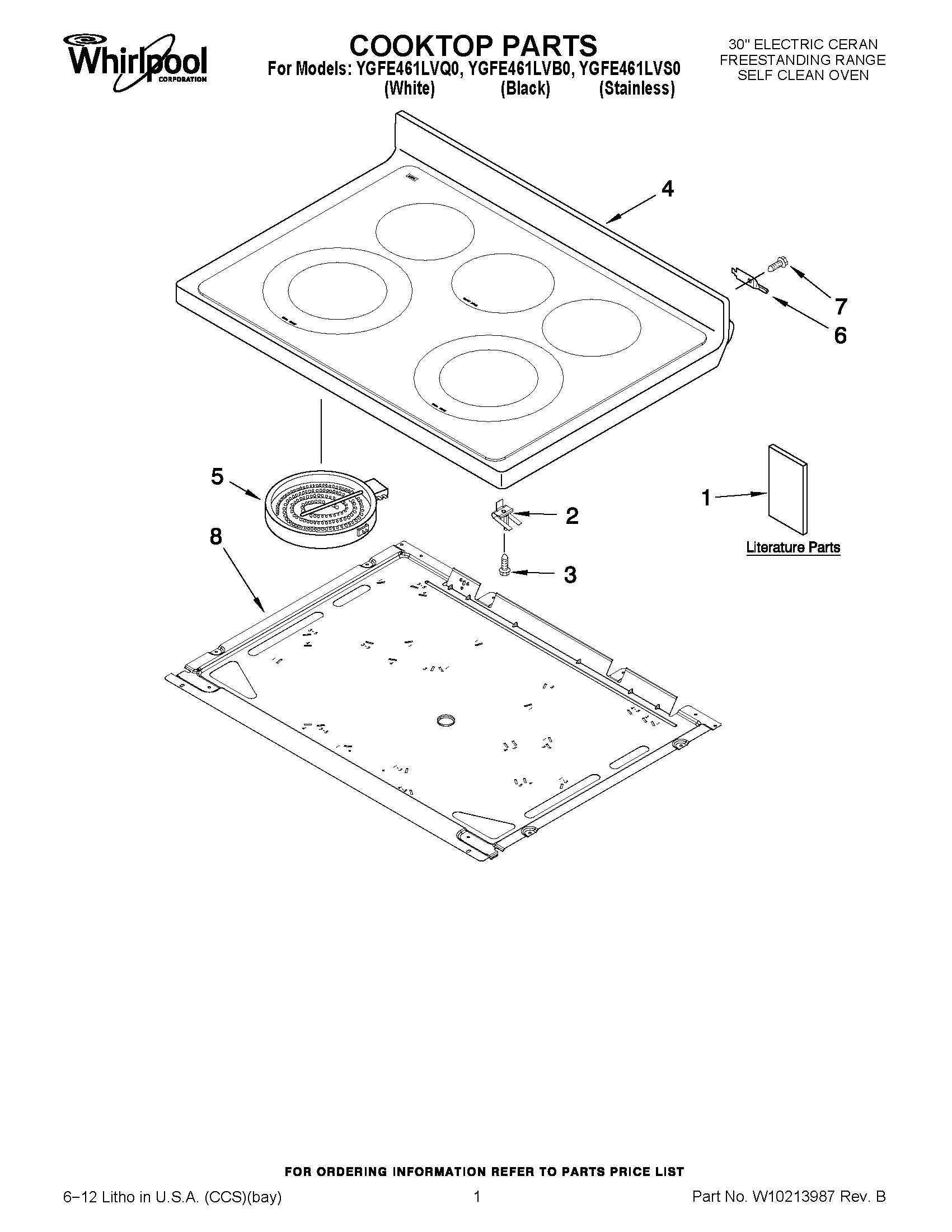

YGFE461LVB0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1U&C GUIDE
1Instructions Installation
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
2WPW10225448 Whirlpool Spring Assembly
3WP3196170 Whirlpool Screw
4W10651914 Whirlpool Cooktop
4W10651915 Whirlpool Cooktop
5WP9762851 Whirlpool Surface Element
5W10823727 Whirlpool Stove Right Front Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6WP3195060 Whirlpool Cooktop Pin
7WP3196557 Whirlpool Screw
8W10170526 Whirlpool Pan
