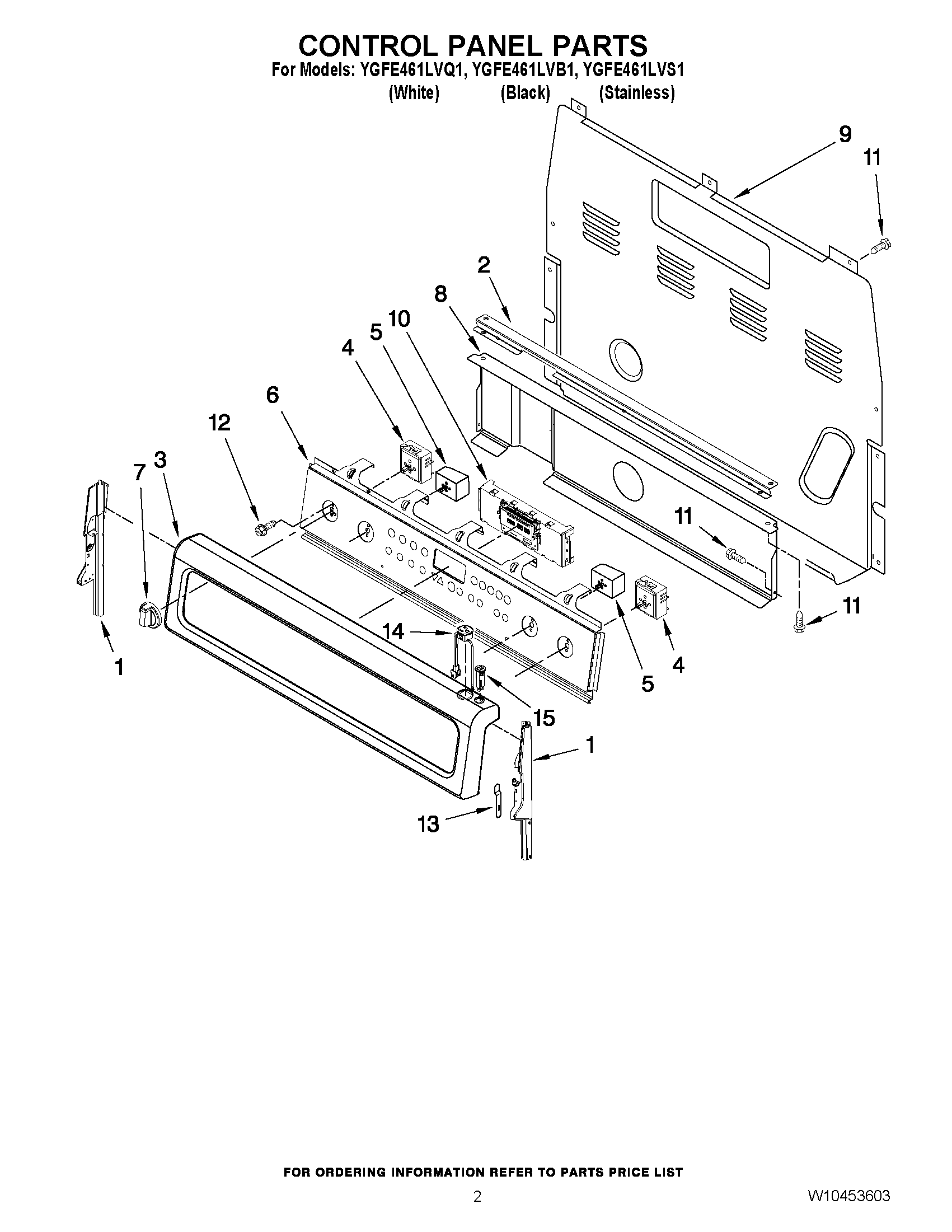

YGFE461LVB1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	Panel, Backguard (Black)
3	PANEL, BACKGUARD (STAINLESS)
3	Panel, Backguard (White)
4	SWITCH-INF
5	WP3149404 Whirlpool Oven Surface Element Switch
6	WPW10224758 Whirlpool Dishwasher Membrane Switch
6	W10224757 Whirlpool Membrane Switch
7	W10154955 Whirlpool Knob Assembly
7	KNOB, INFINITE (BLACK)
8	W10134247 Whirlpool Heat Shield
9	WP8272473 Whirlpool Rear Cover
10	Control, Range
11	SCREW
12	WP3400882 Whirlpool Screw
13	3196200 Whirlpool Clip
14	Receptacle (Stainless Steel)
14	Receptacle (Black)
14	Receptacle (2)
15	Breaker, 15Amp (Architect Grey)
15	WP9757602 Whirlpool Breaker
15	WP9757601 Whirlpool Breaker
