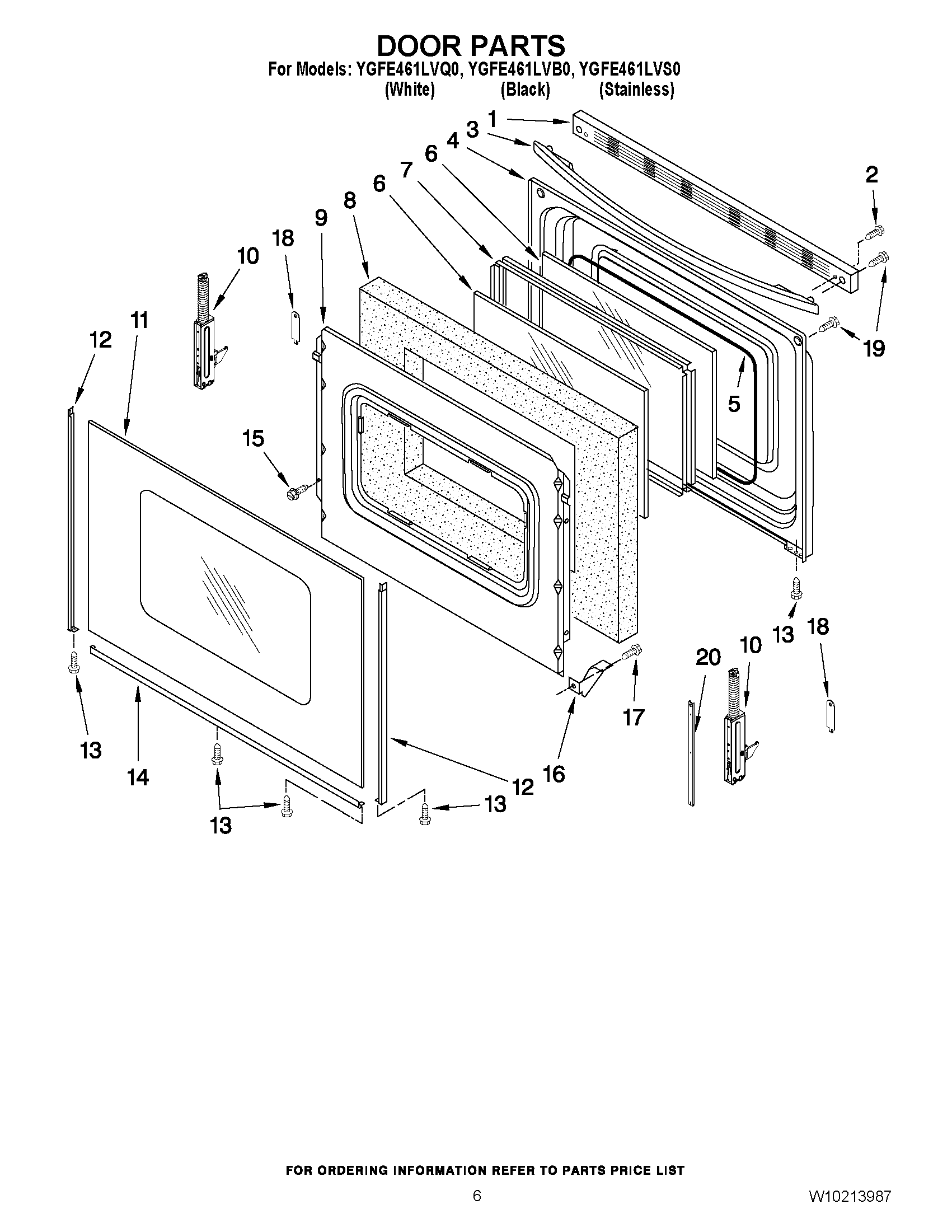

YGFE461LVQ0 05 – DOOR PARTS

Products

Position	Product
1	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
11	WPW10330077 Whirlpool Door Glass
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W10137382 Whirlpool Clip
17	WP3196175 Whirlpool Screw
18	9761517 Whirlpool Oven Clip Assembly
19	W10777162 Whirlpool Screw
20	W11502236 Whirlpool Door Trim
