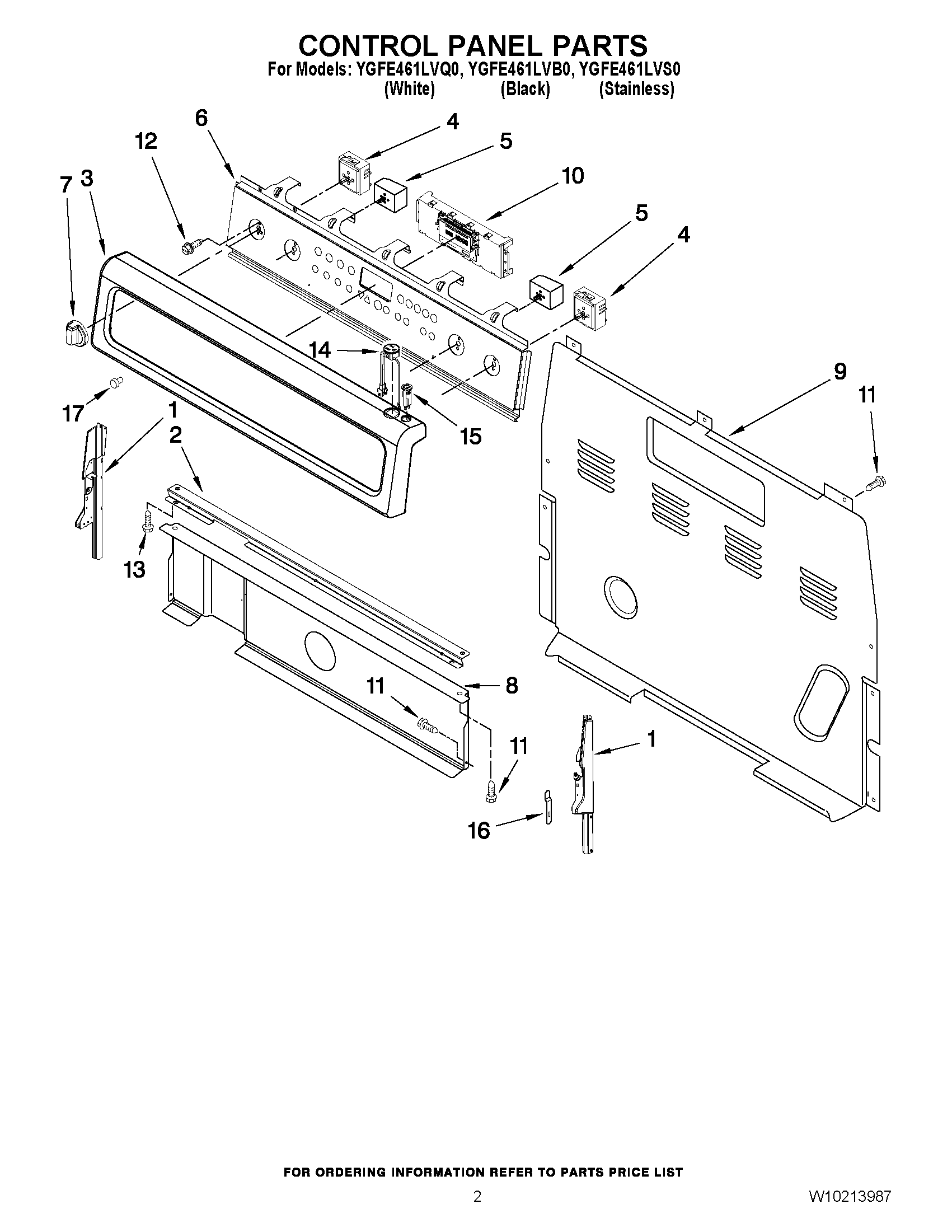

YGFE461LVS0 02 – CONTROL PANEL PARTS

YGFE461LVS0 02 – CONTROL PANEL PARTS

Written by

in

YGFE461LVS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3Panel, Backguard (Black)
3PANEL, BACKGUARD (STAINLESS)
3Panel, Backguard (White)
4WPW10149355 Whirlpool Infinite Switch
5WP3149404 Whirlpool Oven Surface Element Switch
6W10224757 Whirlpool Membrane Switch
6WPW10224758 Whirlpool Dishwasher Membrane Switch
7W10154955 Whirlpool Knob Assembly
7KNOB, INFINITE (BLACK)
8W10134247 Whirlpool Heat Shield
9WP8272473 Whirlpool Rear Cover
10Control, Range
11SCREW
12WP3400882 Whirlpool Screw
133196166 Whirlpool Screw
13WP3400832 Whirlpool Screw
14Receptacle (Black)
14Receptacle (Stainless Steel)
14Receptacle (2)
15Breaker, 15Amp (Architect Grey)
15WP9757602 Whirlpool Breaker
15WP9757601 Whirlpool Breaker
163196200 Whirlpool Clip
17WP3196068 Whirlpool Light Lens
