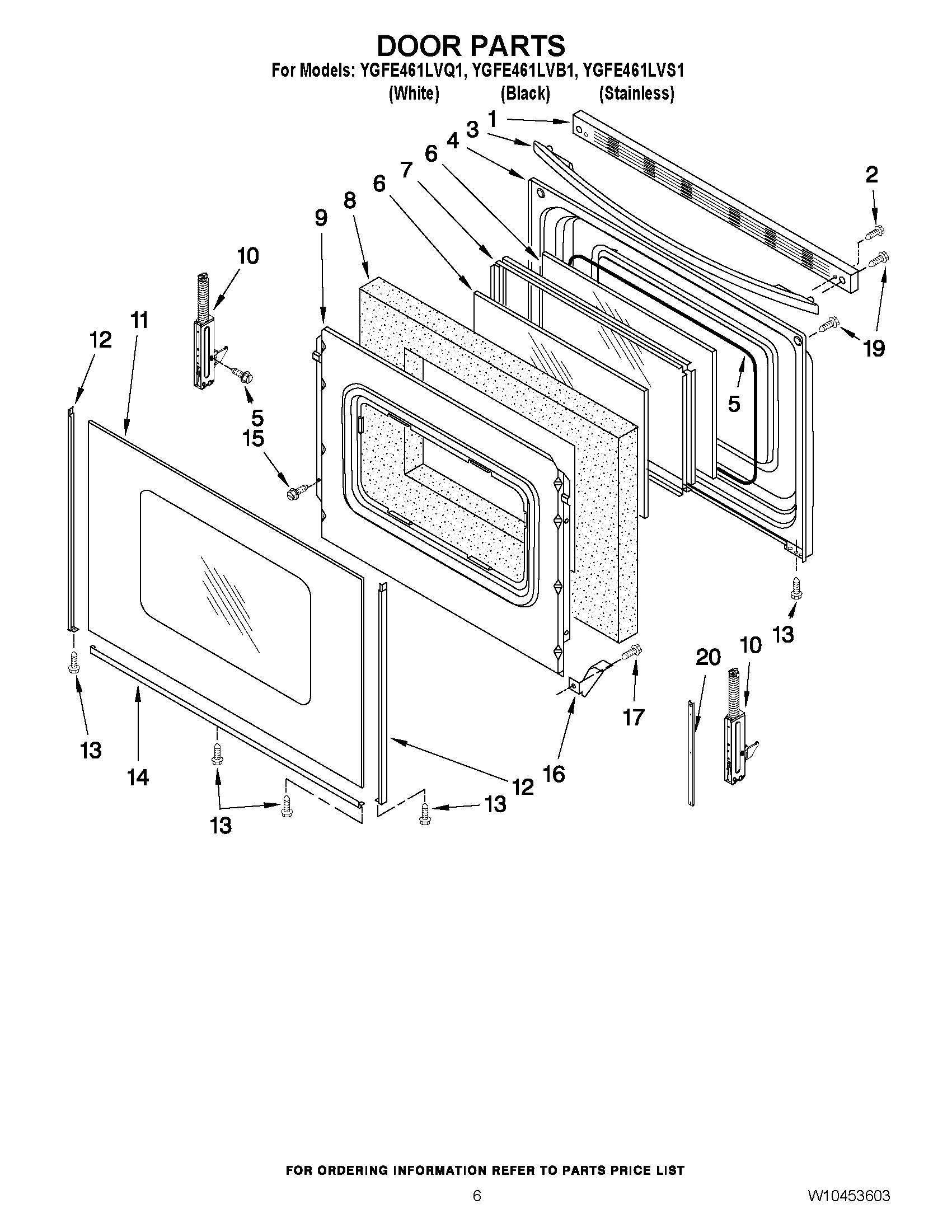

YGFE461LVS1 05 – DOOR PARTS
Written by
in
YGFE461LVS1 05 – DOOR PARTS
Products
Position
Product
1
TRIM-VENT
1
W10817433 Whirlpool Vent Trim
2
W10817436 Whirlpool Screw
3
W10817434 Whirlpool Door Handle
3
WPW10323589 Whirlpool Door Handle
4
WP9761344 Whirlpool Door Liner
5
WPW10200660 Whirlpool Range Oven Door Handle Screw
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
WPW10299227 Whirlpool Range Door Hinge
10
WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523172 Whirlpool Left Door Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523177 Whirlpool Door Trim Assembly
15
WPW10031790 Whirlpool Screw
16
W10137382 Whirlpool Clip
17
WP3196175 Whirlpool Screw
19
W10777162 Whirlpool Screw
20
W11502236 Whirlpool Door Trim
←
