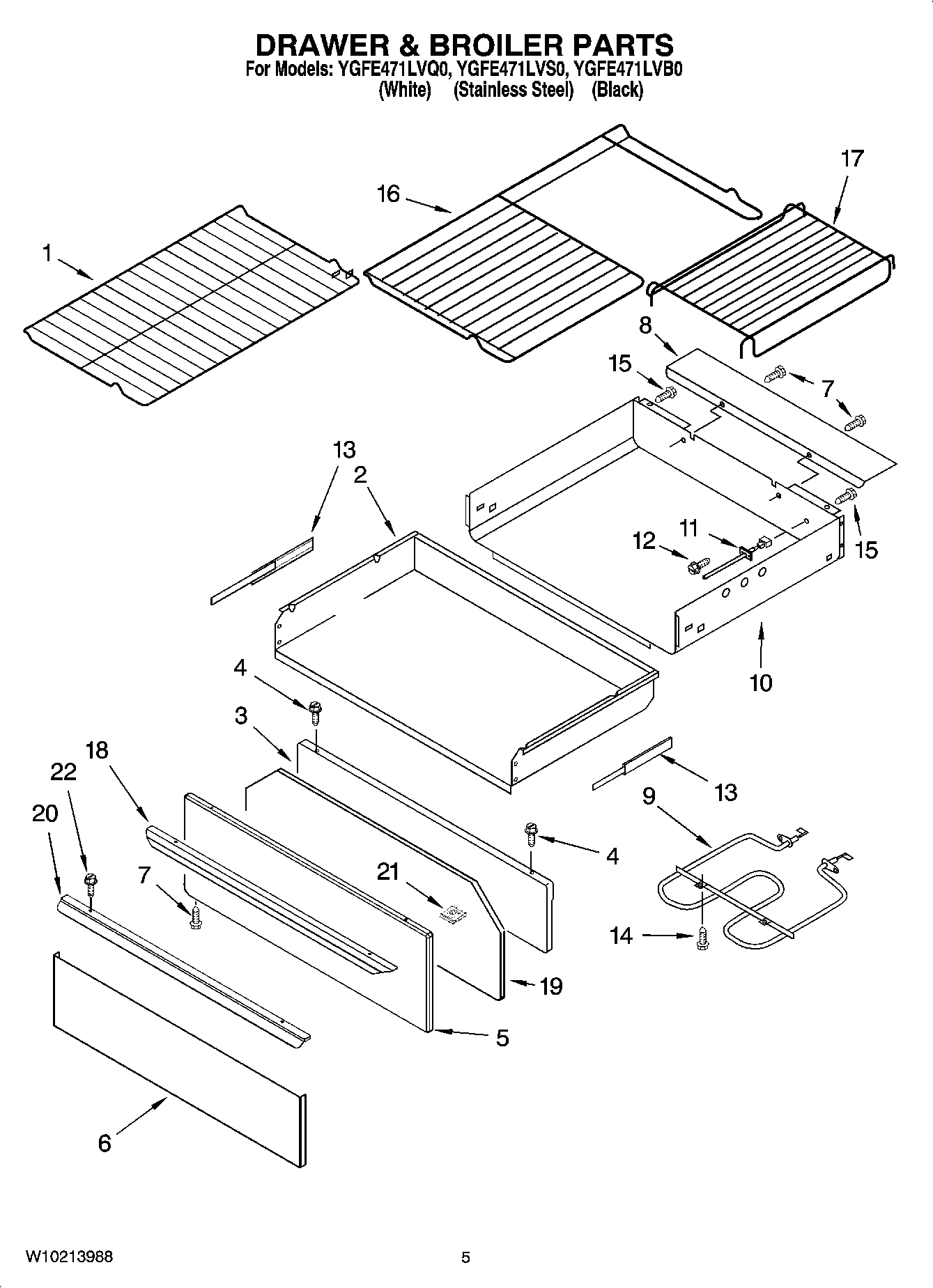

YGFE471LVB0 04 – DRAWER & BROILER PARTS

YGFE471LVB0 04 – DRAWER & BROILER PARTS

Written by

in

YGFE471LVB0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Warming
3Panel, Inner
4Screw (White)
4WP3196567 Whirlpool Screw
5Panel, Drawer Frnt (Black)
5Panel, Drawer Frnt (White)
6PANEL (SS MODEL)
7WP3400832 Whirlpool Screw
8Heat Shield, Element
9Element, Warming
10Enclosure, Drawer
11WPW10131827 Whirlpool Sensor
12WPY706189 Whirlpool Stove Screw
13Slide, Drawer (Left Hand)
13Slide, Drawer (Right Hand)
14WP3196174 Whirlpool Screw
15SCREW
16WP8274021 Whirlpool Oven Rack
17WP8274022 Whirlpool Oven Rack
18Handle (White)
18Handle (Black)
19Insulation
20Handle (SS Model)
21WP9781235 Whirlpool Clip
22WPW10031790 Whirlpool Screw
