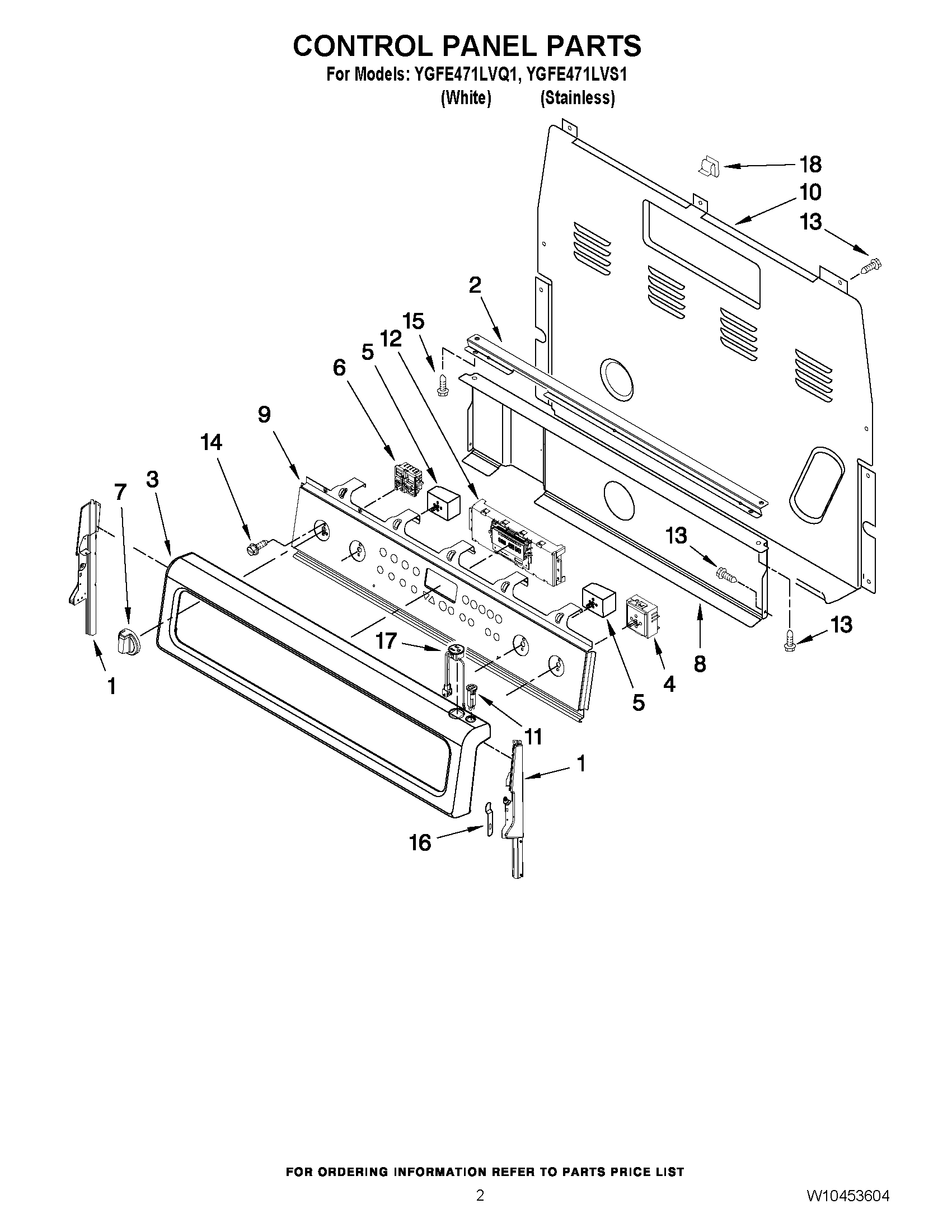

YGFE471LVQ1 02 – CONTROL PANEL PARTS

YGFE471LVQ1 02 – CONTROL PANEL PARTS

Written by

in

YGFE471LVQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3PANEL, BACKGUARD (STAINLESS)
3Panel, Backguard (White)
4WPW10149355 Whirlpool Infinite Switch
5WP3149404 Whirlpool Oven Surface Element Switch
6WPW10169580 Whirlpool Infinite Switch
7W10154955 Whirlpool Knob Assembly
7KNOB, INFINITE (BLACK)
8W10134247 Whirlpool Heat Shield
9W10224760 Whirlpool Membrane Switch Assembly
9W10224761 Whirlpool Membrane Switch
10WP8272473 Whirlpool Rear Cover
11Breaker, 15Amp (Architect Grey)
11WP9757601 Whirlpool Breaker
12Control, Range
13SCREW
14WP3400882 Whirlpool Screw
15WP3196175 Whirlpool Screw
163196200 Whirlpool Clip
17Receptacle (Stainless Steel)
17Receptacle (2)
18WP8273564 Whirlpool Clip
