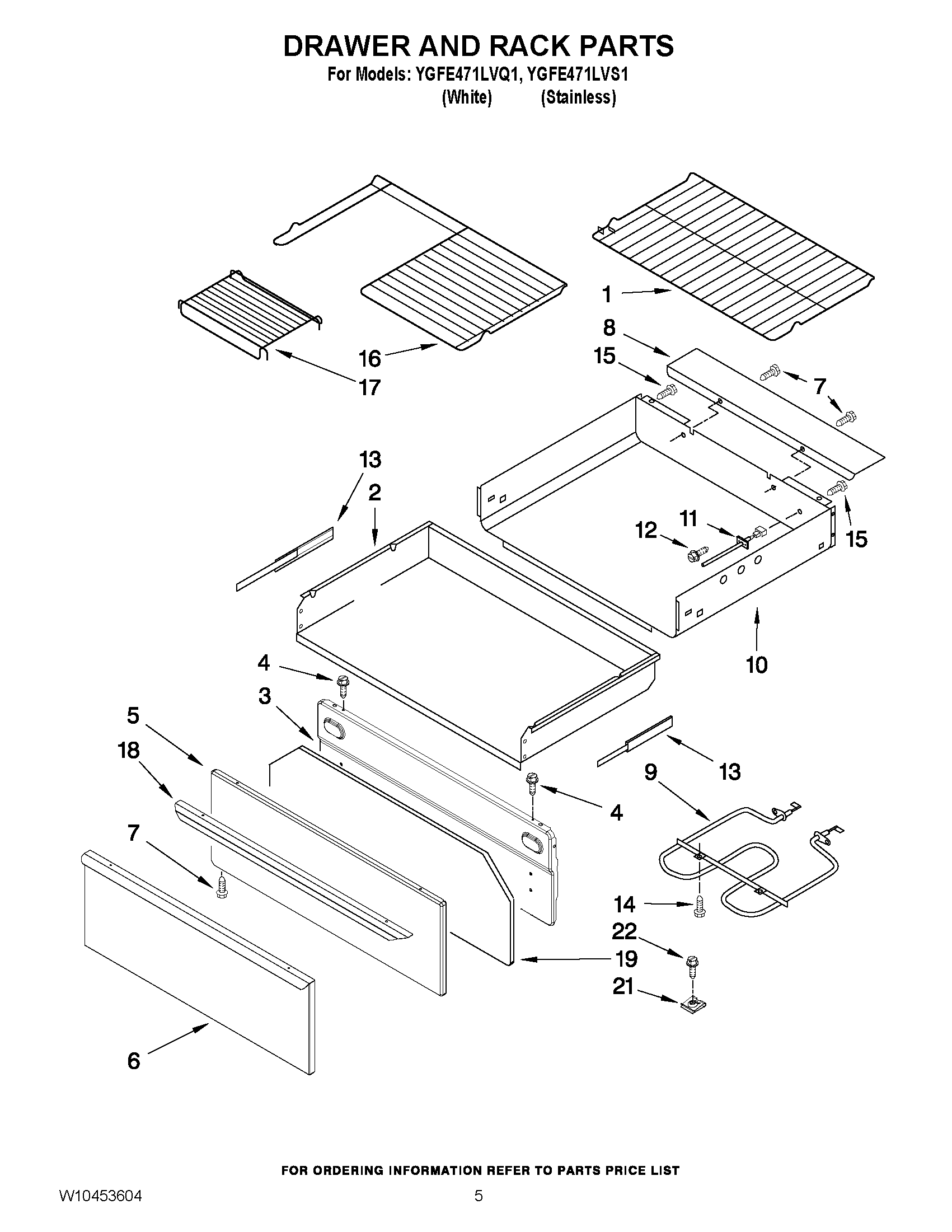

YGFE471LVQ1 04 – DRAWER AND RACK PARTS

YGFE471LVQ1 04 – DRAWER AND RACK PARTS

Written by

in

YGFE471LVQ1 04 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK-OVEN
2Drawer, Warming
3Panel, Inner
4Screw (White)
4W11396735 Whirlpool Screw
5Panel, Drawer Frnt (White)
5PANEL, DRAWER FRNT (BLACK)
6WRAP, STAINLESS MODEL
7WP3400832 Whirlpool Screw
8Heat Shield, Element
9ELEMENT, WARMING DRAWER
10Enclosure, Drawer
11WPW10131827 Whirlpool Sensor
12WPY706189 Whirlpool Stove Screw
13Slide, Drawer (Left Hand)
13Slide, Drawer (Right Hand)
14WP3196174 Whirlpool Screw
15SCREW
16WP8274021 Whirlpool Oven Rack
17WP8274022 Whirlpool Oven Rack
18Handle (White)
19Insulation
21WP9781235 Whirlpool Clip
22WPW10031790 Whirlpool Screw
