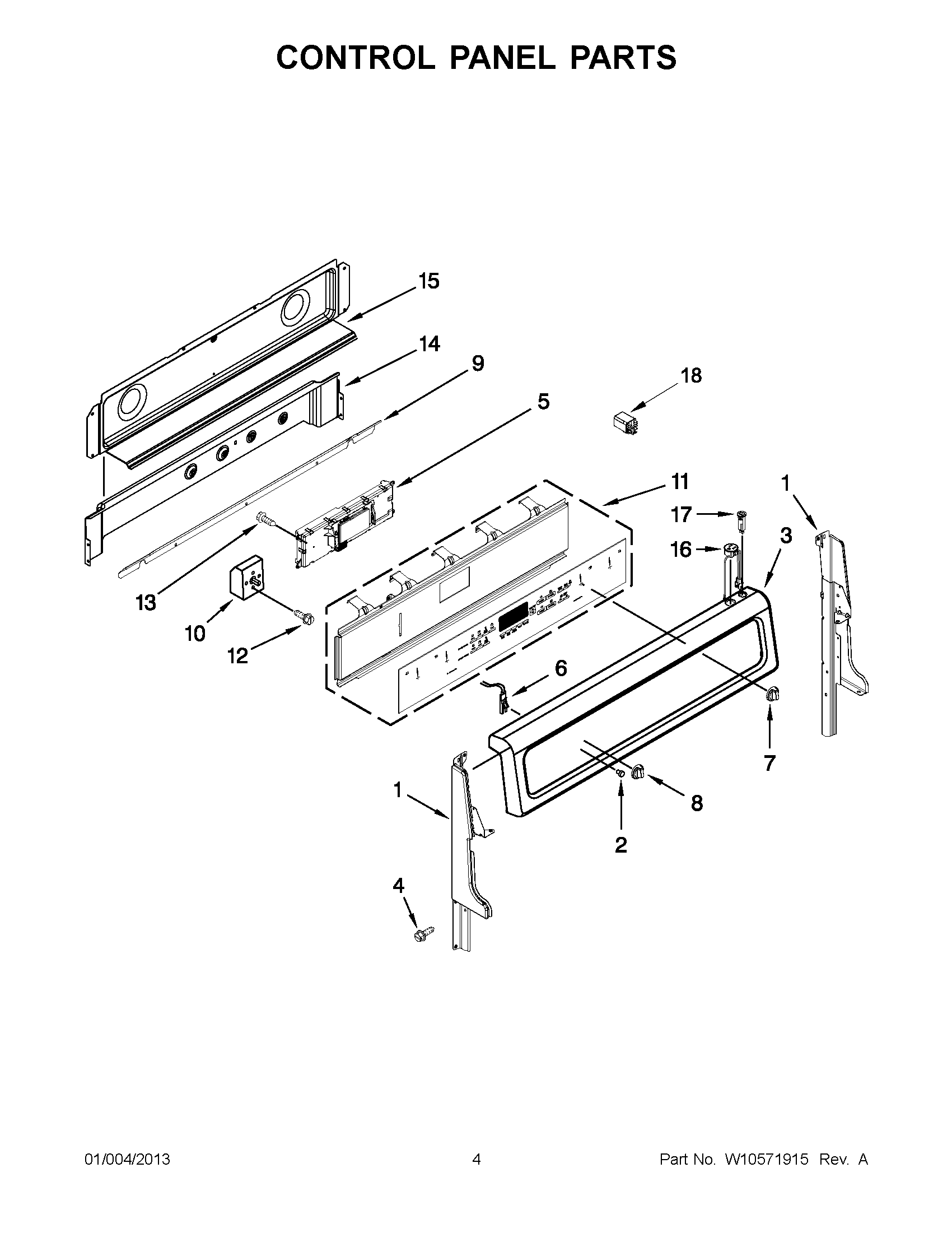

YGGE390LXQ03 02 – CONTROL PANEL PARTS

YGGE390LXQ03 02 – CONTROL PANEL PARTS

Written by

in

YGGE390LXQ03 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319112 Whirlpool Panel Endcap
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
1W10319110 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3CONSOLE (STAINLESS)
3CONSOLE (WHITE)
4SCREW (WHITE)
5WPW10365412-includeCORE Whirlpool WPW10365412 Refrigerator Electronic Control Board + Core
6Light, Indicator
7KNOB (WHITE)
7KNOB (BLACK)
8KNOB, DUAL (BLACK)
8KNOB, DUAL (WHITE)
10SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
10SWITCH, INFINITE (RIGHT REAR)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
11W10321792 Whirlpool Membrane Switch
12WPL 7101P30960
13SCREW
14W10278697 Whirlpool Vent Shield Assembly
15W10296773 Whirlpool Rear Cover
16W10849725 Whirlpool Electrical Outlet
16W10861164 Whirlpool Electrical Outlet
17WP9757601 Whirlpool Breaker
17WP9757602 Whirlpool Breaker
18RELAY (12V)
