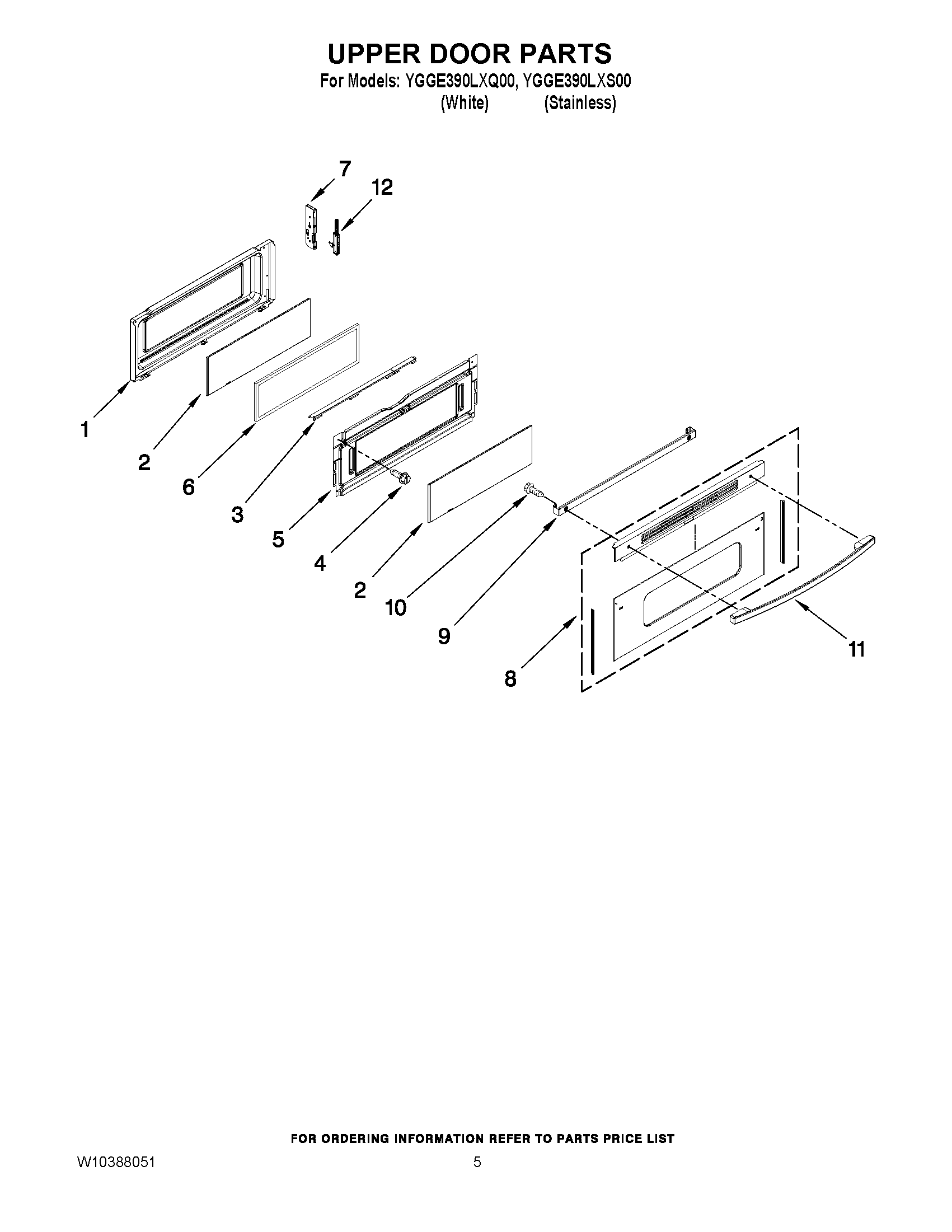

YGGE390LXS00 04 – UPPER DOOR PARTS

Products

Position	Product
1	LINING, DOOR
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	RETAINER, INSUL.
6	WPW10321271 Whirlpool Insulation Assembly
7	W10277006 Whirlpool Hinge Receiver
8	ASSEMBLY, DOOR GLASS (STAINLESS)
8	ASSEMBLY, DOOR GLASS (WHITE)
9	WPW10144883 Whirlpool Door Handle
9	W10817434 Whirlpool Door Handle
9	WPW10294695 Whirlpool Mounting Bracket
10	WPW10317886 Whirlpool Screw
11	CABINET (NOT A SERVICEABLE PART)
12	HINGE, DOOR (LEFT)
12	HINGE, DOOR (RIGHT)
