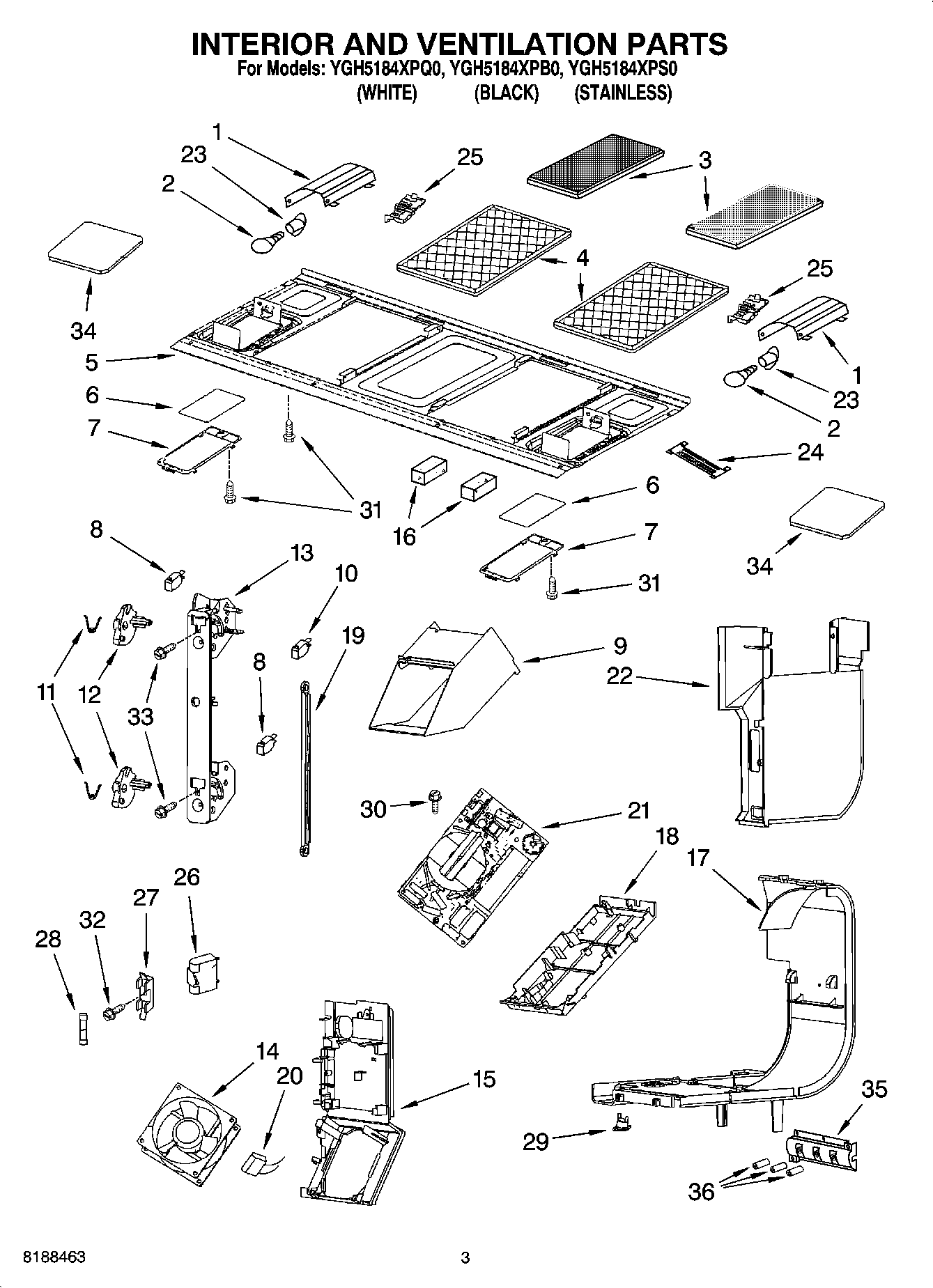

YGH5184XPB0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10112514A Whirlpool Microwave Vent Hood Charcoal Filter
4	W10113040A Whirlpool Grease Filter Aluminum
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	W10211974 Whirlpool Microwave Door Interlock Micro Switch
9	Cover, Inverter
10	W10211972 Whirlpool Microwave Switch
11	Spring, Interlock
12	Plate, Cam
13	Support, Interlock
14	Fan, DC 12 V
15	Housing, Fan
16	Seal, Foam
17	Bracket, Holder
18	Holder, Inverter
19	Rod-Locking Link
20	Capacitor, 125 V
21	W10217710 Whirlpool Microwave Inverter
22	Plate, Side
23	Holder, Lamp
24	Cable
25	Cover, Terminal
26	Capacitor
27	Holder, Fuse
28	FUSE-THRML
29	Thermostat
30	SCREW
31	W11380570 Whirlpool Microwave Screw
32	SCREW
33	8169479 Whirlpool Microwave Screw
34	Foil, Lamp
35	Brkt-Support Ferrite Holder
36	Ferrite Ring
