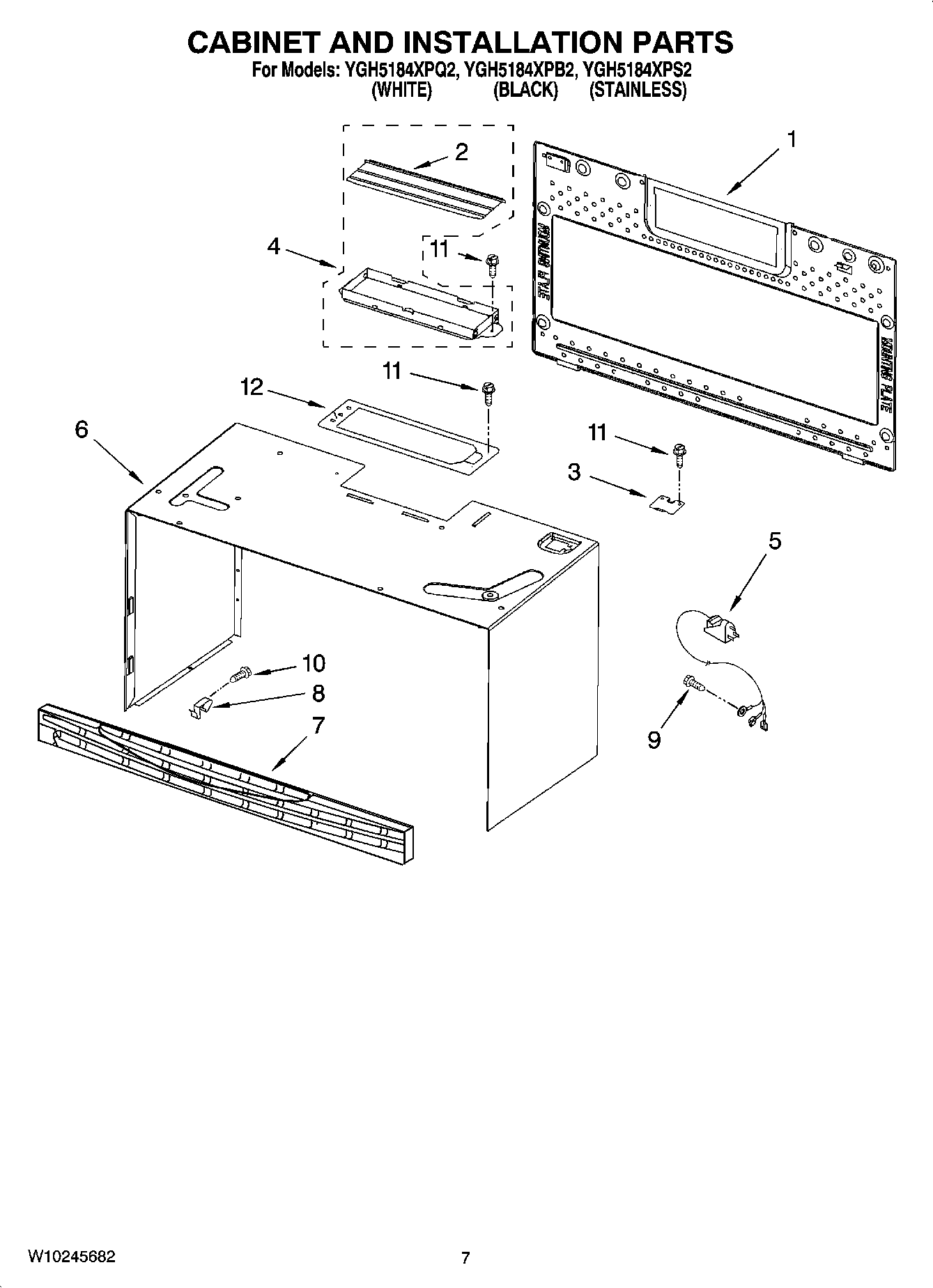

YGH5184XPS2 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	Miscellaneous
	PCBA
	Inverter, Grnd
	Cavity Thrmst 1-2
	Cavity Thrmst 2-3
	Harns-Wire Filter Capacitor
	Harns-Wire AC Line Filter
	Harns-Wire, Main
	Harns-Wire Lamp/TT
	H.V. Wire Assy
	8206185 Whirlpool Microwave Wire Harness
	WP8169704 Whirlpool Screw
	Hardware, Installation
	(Biscuit)
	W10615910 Whirlpool Microwave Wire Harness
1	WPW10269225 Whirlpool Bracket Mounting
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
5	Cord, Power
6	Case, Outer (White)
6	Case, Outer (Black & Stainless)
7	Grille, Vent (Stainless)
7	W10450172 Whirlpool Microwave Grille Vent
7	W10450187 Whirlpool Microwave Oven Vent Grille
8	W10615742 Whirlpool Microwave Clip
9	Screw
10	Screw
11	W11380570 Whirlpool Microwave Screw
12	Plate, Damper
