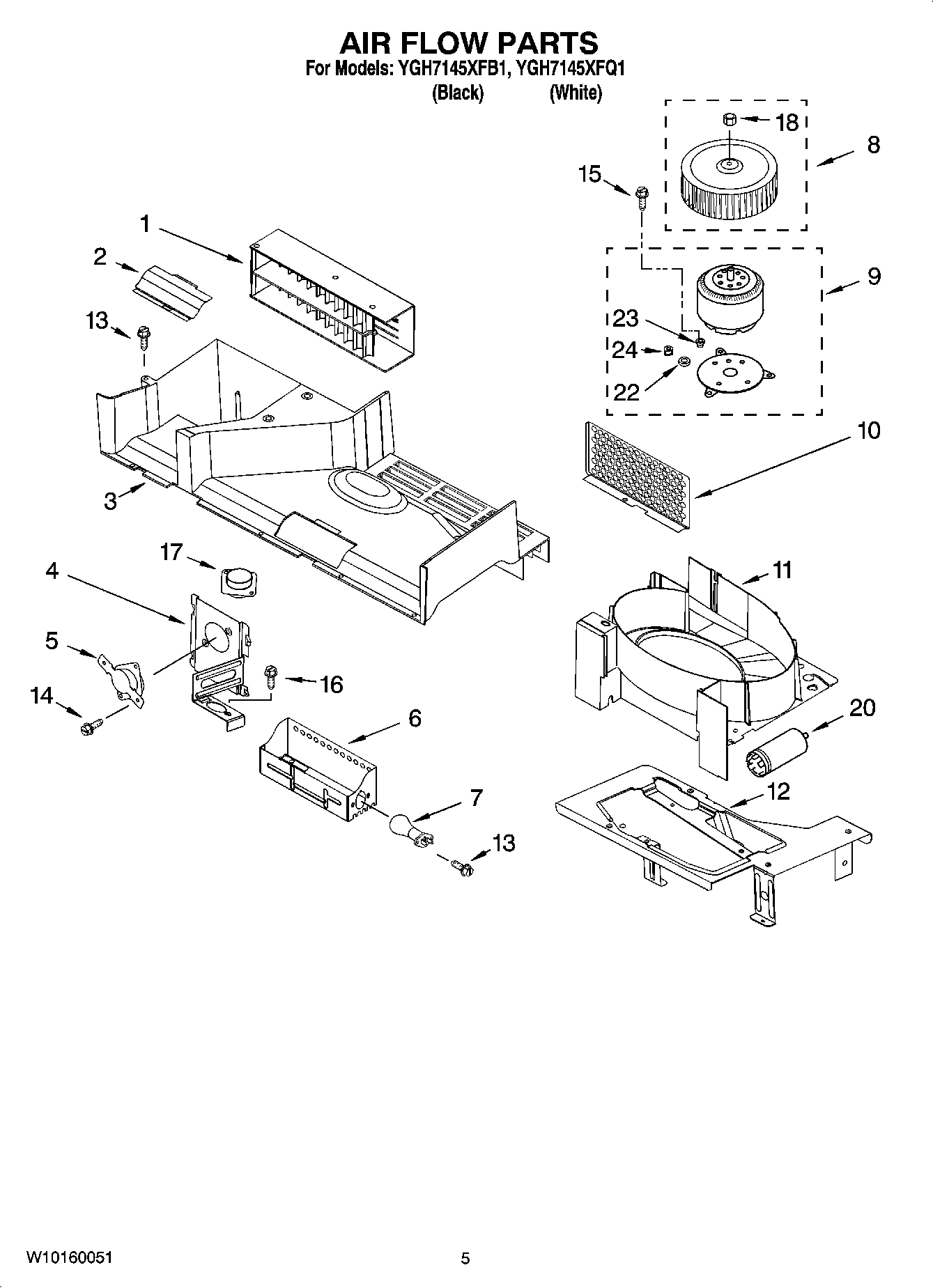

YGH7145XFB1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Reflector, Air
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Housing, Lamp
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Wheel, Fan
9	Motor, Fan
10	Shield
11	Housing, Fan
12	Bracket, Fan (Not Serviced)
13	Screw
14	Screw
15	Screw
16	Screw
17	Humidity, Sensor
18	Nut
20	Filter
22	Plate, Damper
23	Cushion, Mtr
24	Spacer, Copper Pipe
