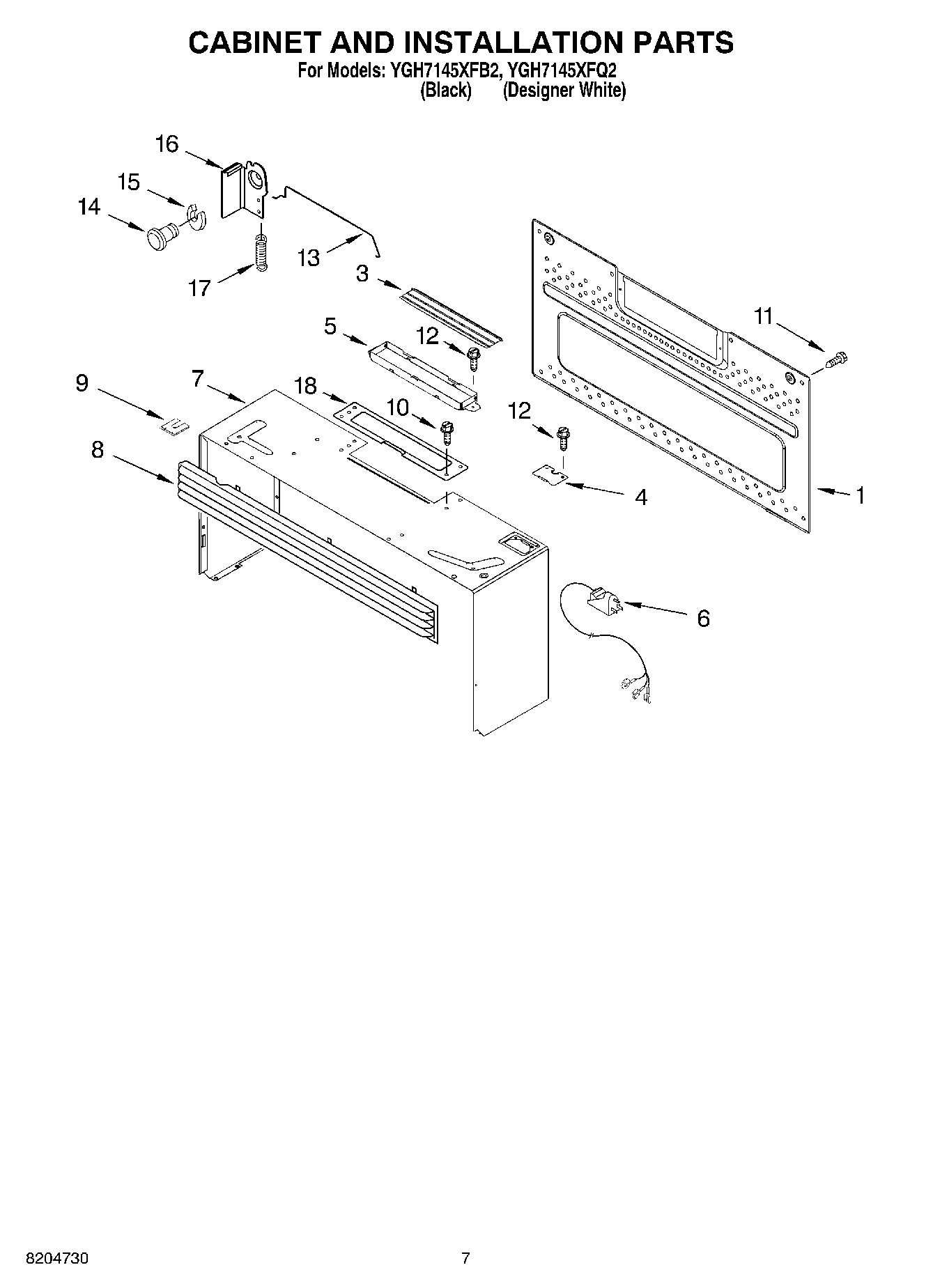

YGH7145XFB2 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	8169432 Whirlpool Microwave Power Cord
7	Case, Outer (White)
7	Case, Outer (Black)
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8183851 Whirlpool Microwave Oven Vent Grille Black
9	Lid, Power Cord
10	WP4393834 Whirlpool Microwave Screw
11	Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	Template – Upper
18	Plate, Damper
18	Miscellaneous
18	Template – Wall
18	Filler Kit
18	Rack
18	White Model
18	Hardware, Installation
18	ACCESSORY PARTS
