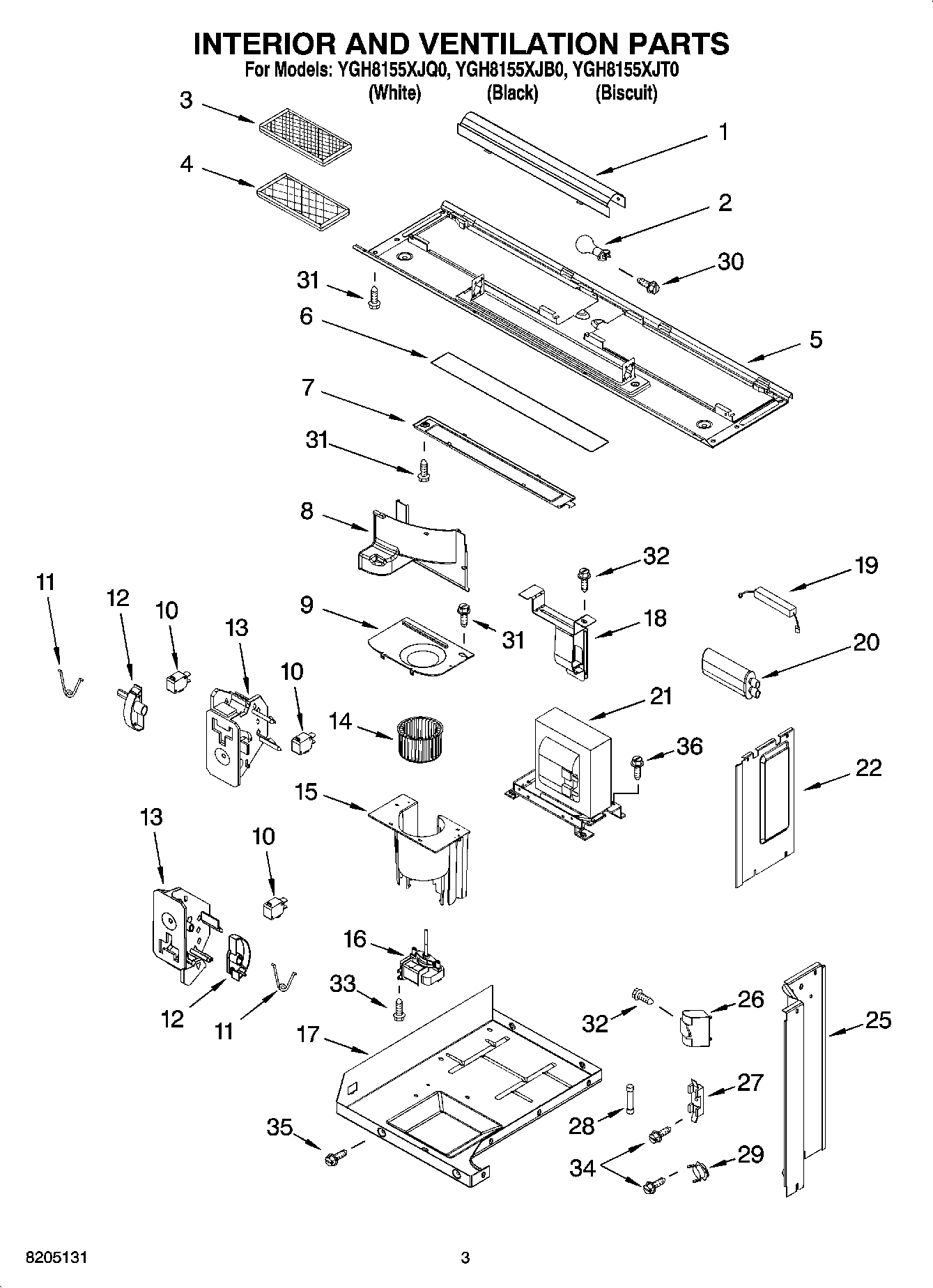

YGH8155XJQ0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	6800 Whirlpool Charcoal Filter Kit
4	6802A Whirlpool Grease Filter
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	Guide, Air (Magnetron)
9	Cover, Fan
10	W10211972 Whirlpool Microwave Switch
11	Spring, Interlock
12	Plate, Cam
13	8205572 Whirlpool Microwave Interlock
14	Wheel, Fan
15	Housing, Fan
16	Motor, Fan
17	Chassis
18	Holder, Capacitor
19	W11256462 Whirlpool Microwave Diode
20	8206562 Whirlpool Microwave Capacitor MG
21	Transformer, H.V.
22	Plate, Side (R)
25	Plate, Side (L)
26	Capacitor
27	Case, Fuse
28	FUSE-THRML
29	Thermostat
30	Screw
32	W11380570 Whirlpool Microwave Screw
33	Screw
34	Screw
35	8169479 Whirlpool Microwave Screw
36	Screw
