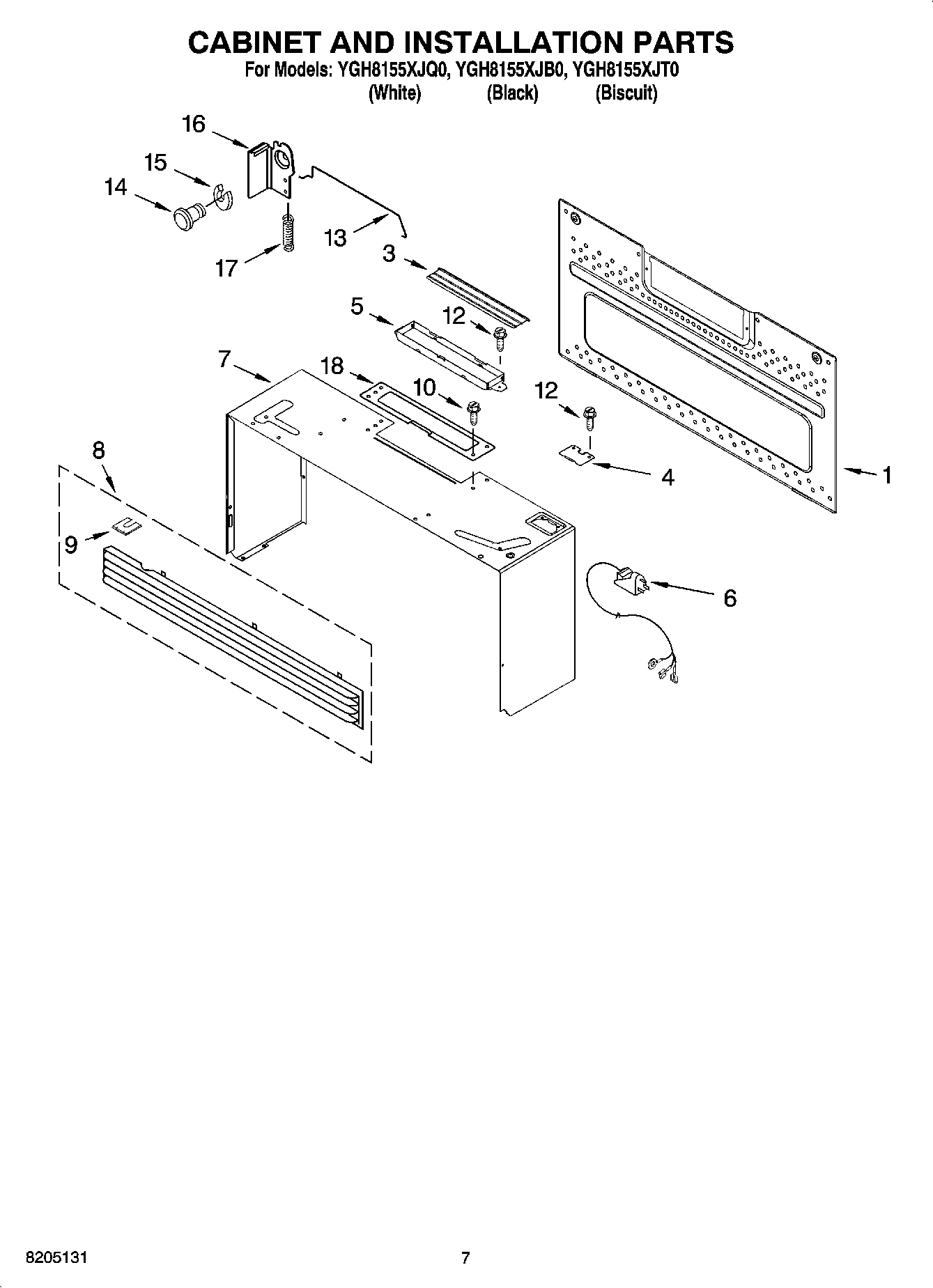

YGH8155XJQ0 06 – CABINET AND INSTALLATION PARTS

YGH8155XJQ0 06 – CABINET AND INSTALLATION PARTS

Written by

in

YGH8155XJQ0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
WP8169704 Whirlpool Screw
Miscellaneous
Upper Template
Template – Wall
Rack
Hardware, Installation
Filler Kit (Biscut)
Filler Kit (Black)
Filler Kit (White)
ACCESSORY PARTS
8205262RB Whirlpool Refrigerator Crusher Blade #2
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
68169432 Whirlpool Microwave Power Cord
7Case, Outer (White)
7Case, Outer (Black)
7Case, Outer (Biscuit)
88183948 Whirlpool Microwave Oven Vent Grille
88183852 Whirlpool Microwave Primary Vent Grille
88183851 Whirlpool Microwave Oven Vent Grille Black
98206334 Whirlpool Microwave Mounting Bracket
10Screw
12Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Plate, Damper
