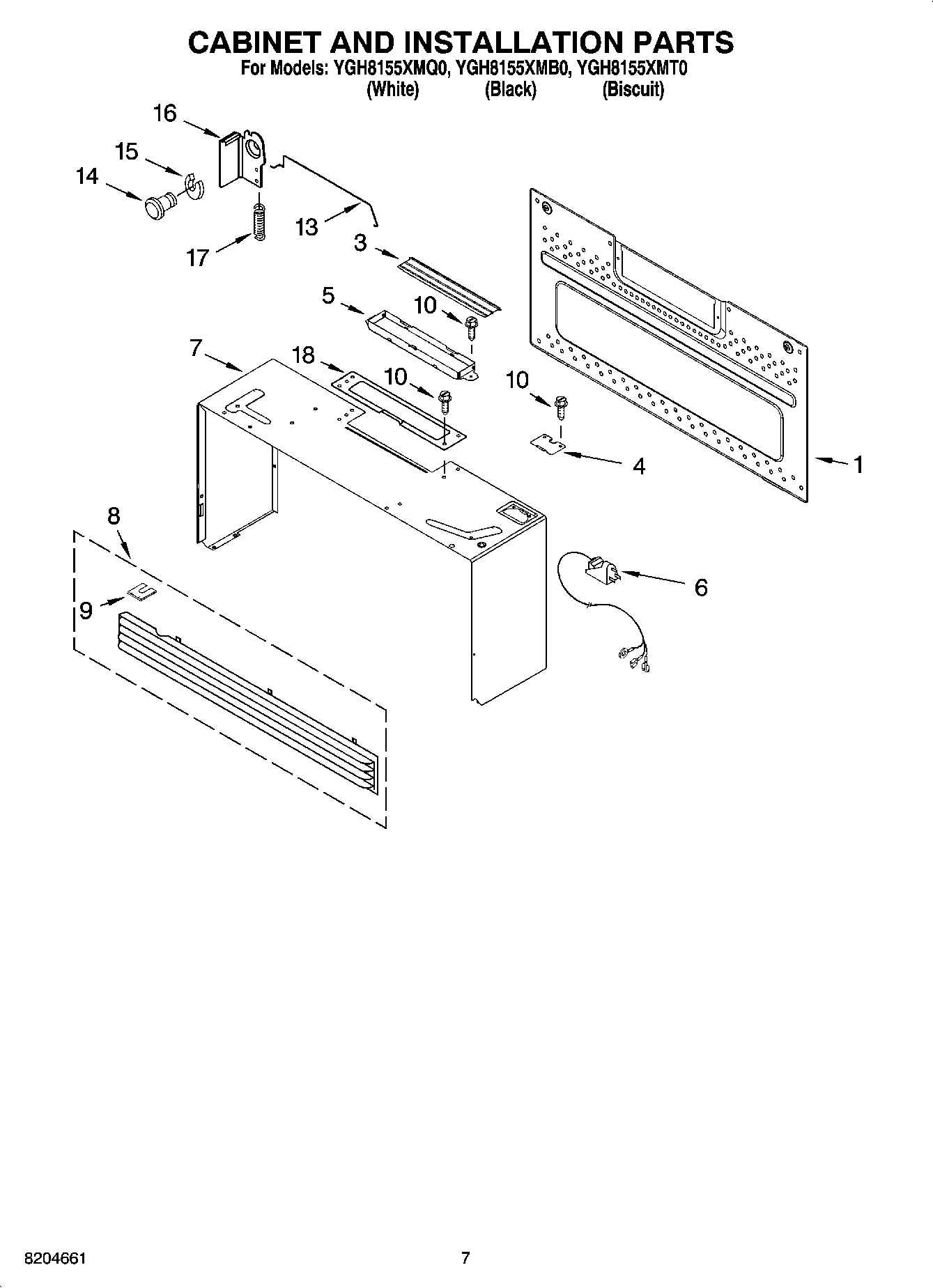

YGH8155XMB0 06 – CABINET AND INSTALLATION PARTS

YGH8155XMB0 06 – CABINET AND INSTALLATION PARTS

Written by

in

YGH8155XMB0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
WP8169704 Whirlpool Screw
Miscellaneous
Template – Upper
Template – Wall
Filler Kit (Almond)
Filler Kit (Biscut)
Filler Kit (Black)
Filler Kit (White)
Hardware, Installation
ACCESSORY PARTS
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (White)
7Case, Outer (Black)
7Case, Outer (Biscuit)
88183851 Whirlpool Microwave Oven Vent Grille Black
88183852 Whirlpool Microwave Primary Vent Grille
88183948 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Plate, Damper
