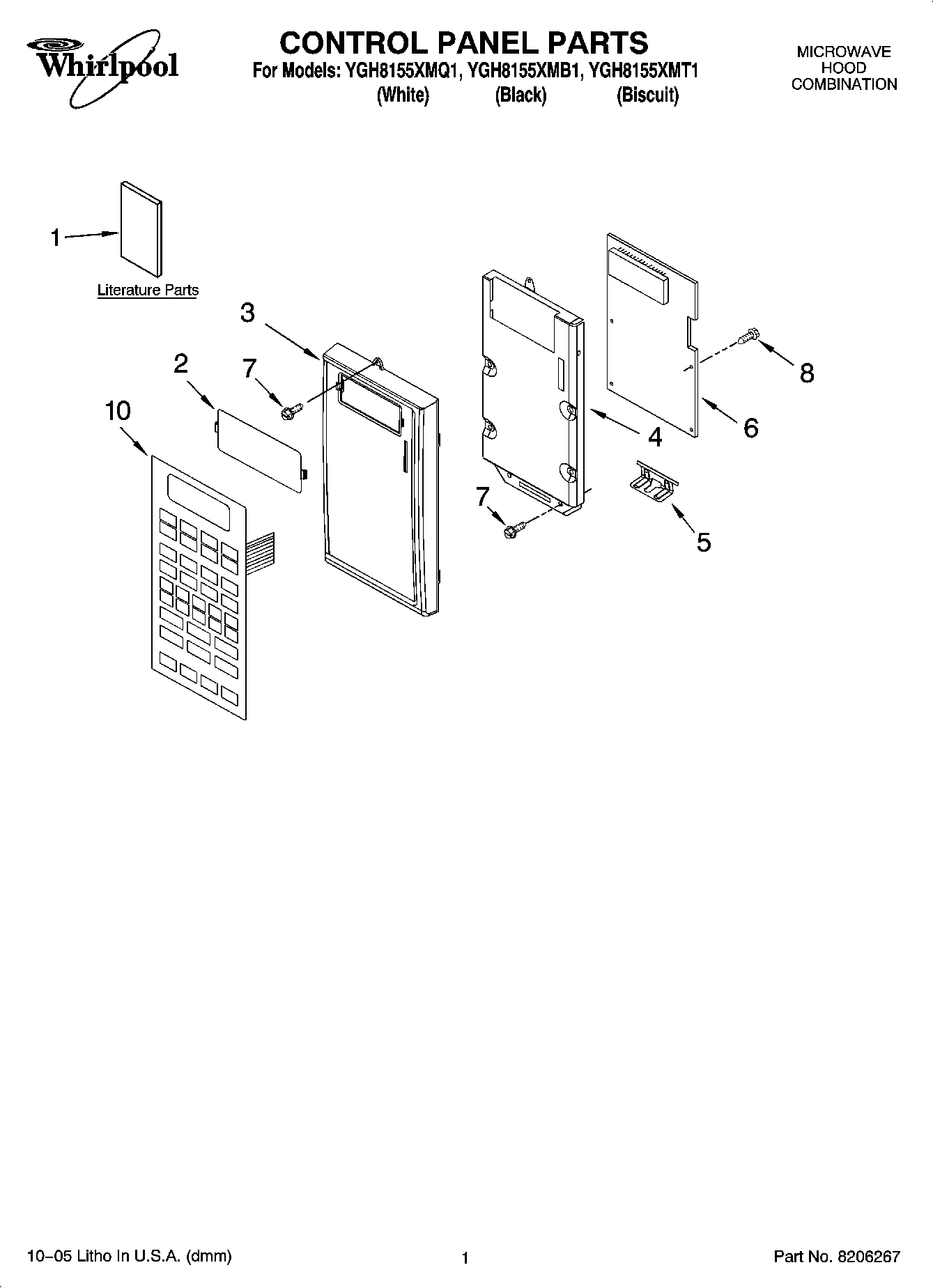

YGH8155XMQ1 01 – CONTROL PANEL PARTS

YGH8155XMQ1 01 – CONTROL PANEL PARTS

Written by

in

YGH8155XMQ1 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Use & Care Guide
1	Cooking Guide Label (French)
1	Tech Sheet
1	Cooking Guide Label (English)
1	Installation Instructions
2	Lens (B/Q Models)
2	Lens (Biscuit Model)
3	Panel, Control (Black)
3	Panel, Control (White)
3	Panel, Control (Biscuit)
4	Bracket, Control
5	Plate, Hinge
6	Microcomputer
7	Screw
8	Screw
10	Switch, Membrane (Biscuit)
10	Switch, Membrane (Black)
10	Switch, Membrane (White)
