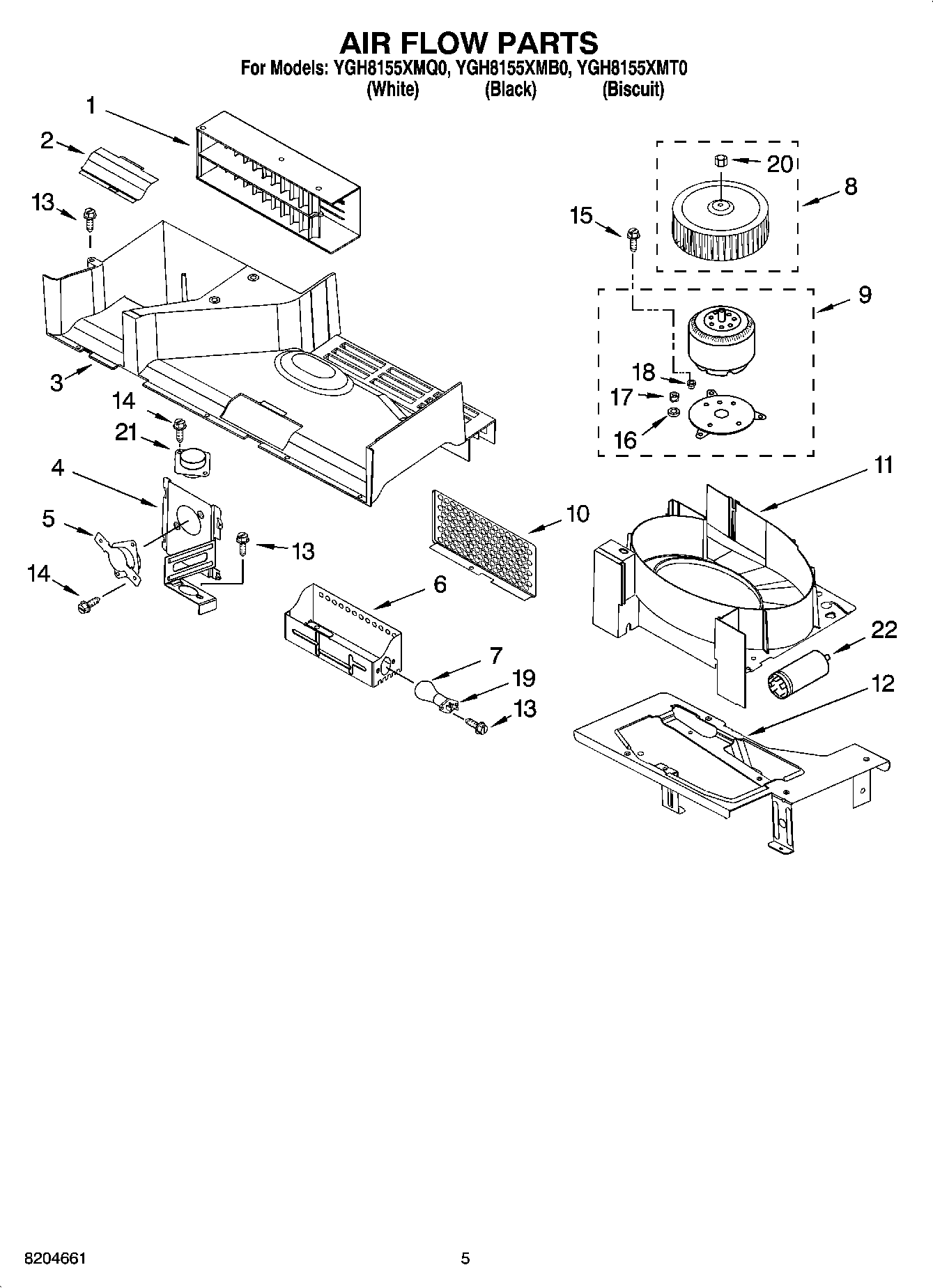

YGH8155XMT0 04 – AIR FLOW PARTS

Products

PositionProduct
1Deflector, Air
2Reflector, Air
3Duct, Air
4Bracket, Thermostat
5Thermostat
6Housing, Lamp
78206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8Wheel, Fan
9Motor, Fan
10Shield
11Housing, Fan
12Bracket, Fan (Not Serviced)
13Screw
14Screw
15Screw
16Plate, Damper
17Spacer, Copper Pipe
18Cushion, Mtr
198169539 Whirlpool Microwave Light Bulb Socket and Housing
20Nut
21Humidity, Sensor
22Filter
