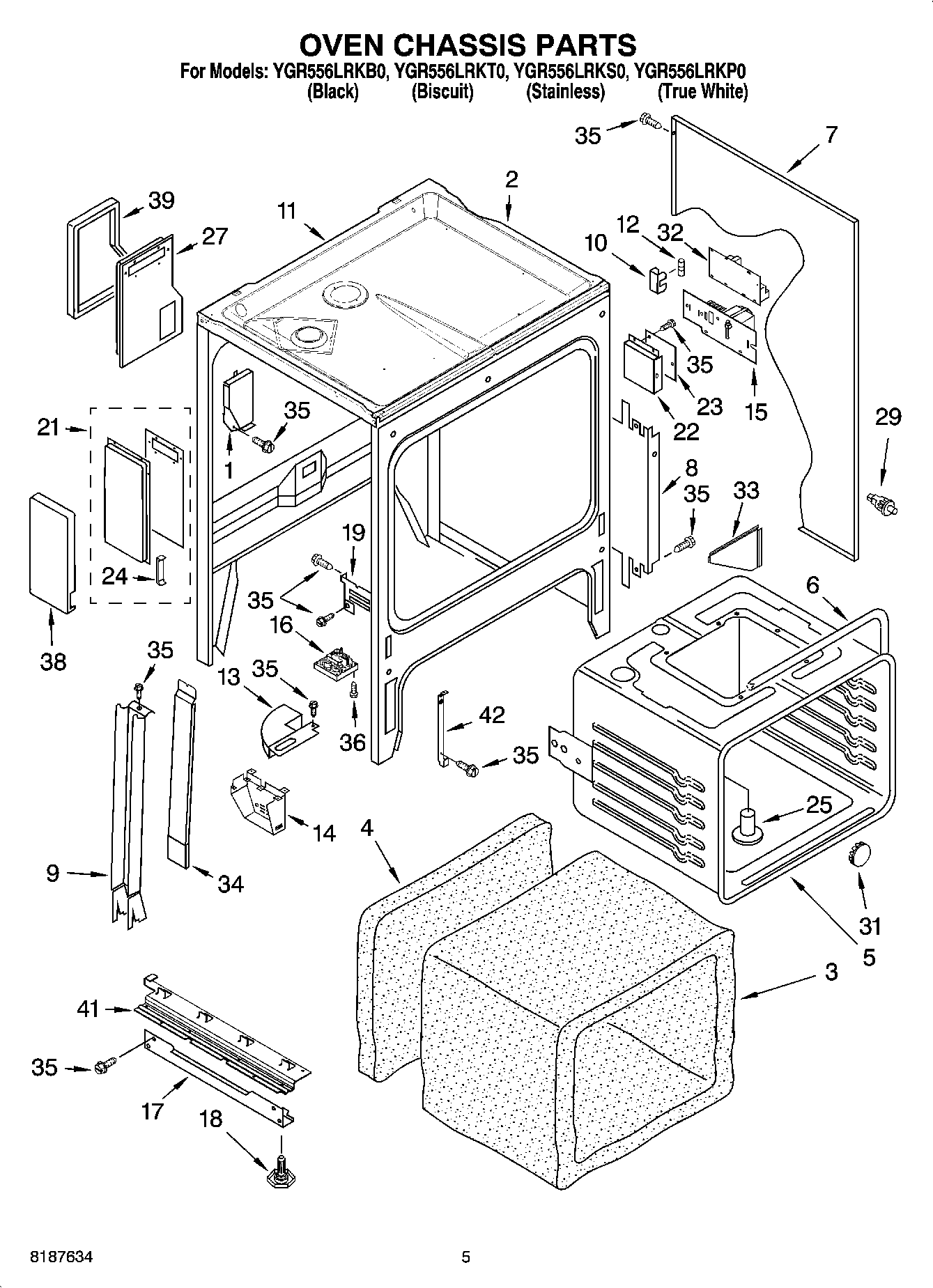

YGR556LRKS0 03 – OVEN CHASSIS PARTS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Side, Oven L or R (Black)
7	Side, Oven L or R (Biscuit)
7	Side, Oven L or R (White)
8	Shield, Insulation
9	Duct, Side Fan
10	4454949 Whirlpool Oven Fuse Block
11	Burner Box
12	WPW10017410 Whirlpool Fuse
13	Duct, Top
14	Support, Fan
15	MICROCPTR
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
21	Side Duct
22	Shield, PCB
23	Bracket, PCB
24	Gasket, Duct
25	Vent, Tube
27	Rear Duct
29	Door Switch
31	Button, Plug
32	Microcptr
33	Shield, Heat
34	Fan Duct, Cover
35	WP4159387 Whirlpool Compactor Screw
36	Screw, (3) No.8 x 1``
38	INSULATION
39	INSULATION
41	Support (Left Hand)
41	Support (Right Hand)
42	Bracket, Support
