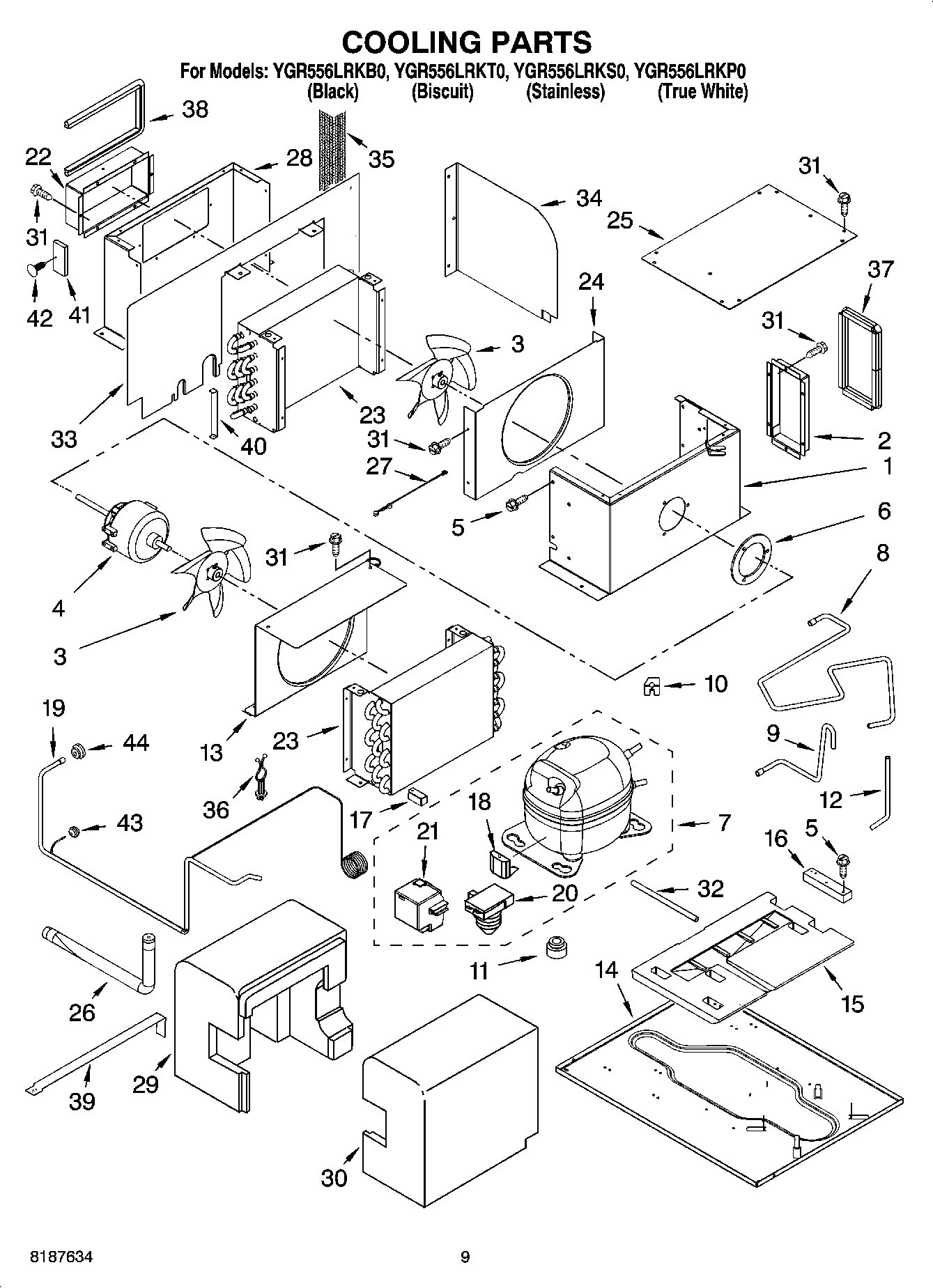

YGR556LRKS0 06 – COOLING PARTS

Products

Position	Product
1	Box, Evap (Right)
2	Box, Evap (R.H. Adapter)
3	Blade, Fan (2)
4	Motor, Fan
5	Screw
6	Spacer, Motor
7	W11735041 Whirlpool Compressor
8	Tube, Discharge
9	Tube, Discharge (W/ Dryer)
10	Clip, Compressor
11	Grommet
12	Tube, Charge
13	Housing, Fan (Condenser)
14	Plate, Base
15	Pan, Drain
16	Spacer (2)
17	Spacer, Evap
18	WP2217223 Whirlpool Refrigerator Overload Relay
19	Tube, Suction
20	WP2217224 Whirlpool Refrigerator Start Relay
21	WP2162358 Whirlpool Refrigerator Terminal Cover
22	Box, Evap (L.H. Adapter)
23	Evaporator/Cond
24	Housing, Fan (Evap)
25	Box, Evap (Top)
26	Sleeve
27	Dual Cntl, Bimetal
28	Box, Evap (Left)
29	Insulation, Rear Cooling
30	Insulation, Front Cooling Module
31	Screw
32	8186363 Whirlpool Oven Hose
33	Shield, Baffle
34	Shield, Fence
35	Shield, Fan
36	Clip, Standoff
37	Seal, Rear
38	Seal, Side
39	Bracket, Top
40	Bracket, Hold Down
41	Seal, Front Side
42	Rivet, Plastic
43	GROMMET
44	Grommet, Sq Btm
