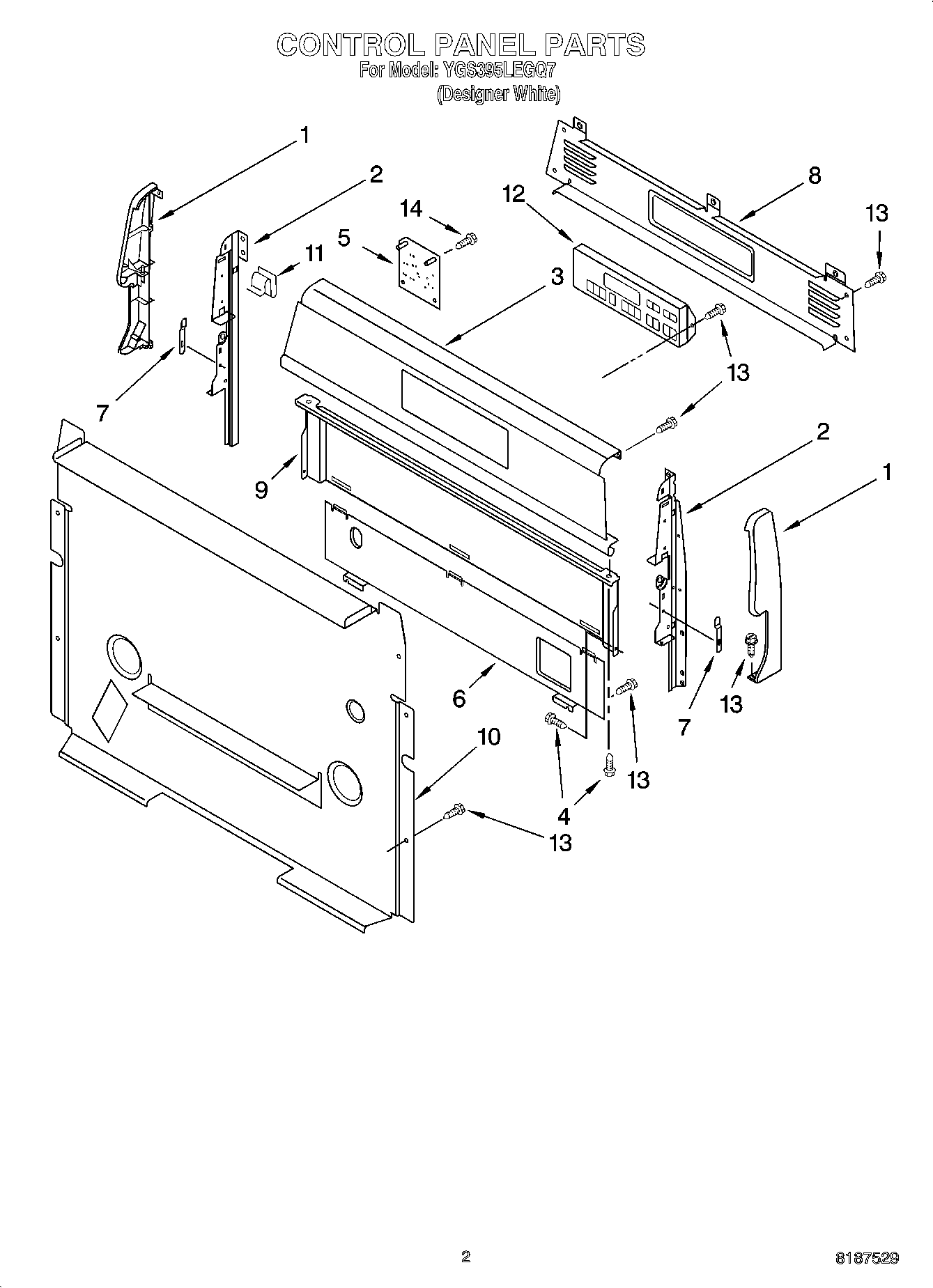

YGS395LEGQ7 02 – CONTROL PANEL PARTS

YGS395LEGQ7 02 – CONTROL PANEL PARTS

Written by

in

YGS395LEGQ7 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP8273564 Whirlpool Clip
12Control, Range
13SCREW
14WP3196557 Whirlpool Screw
