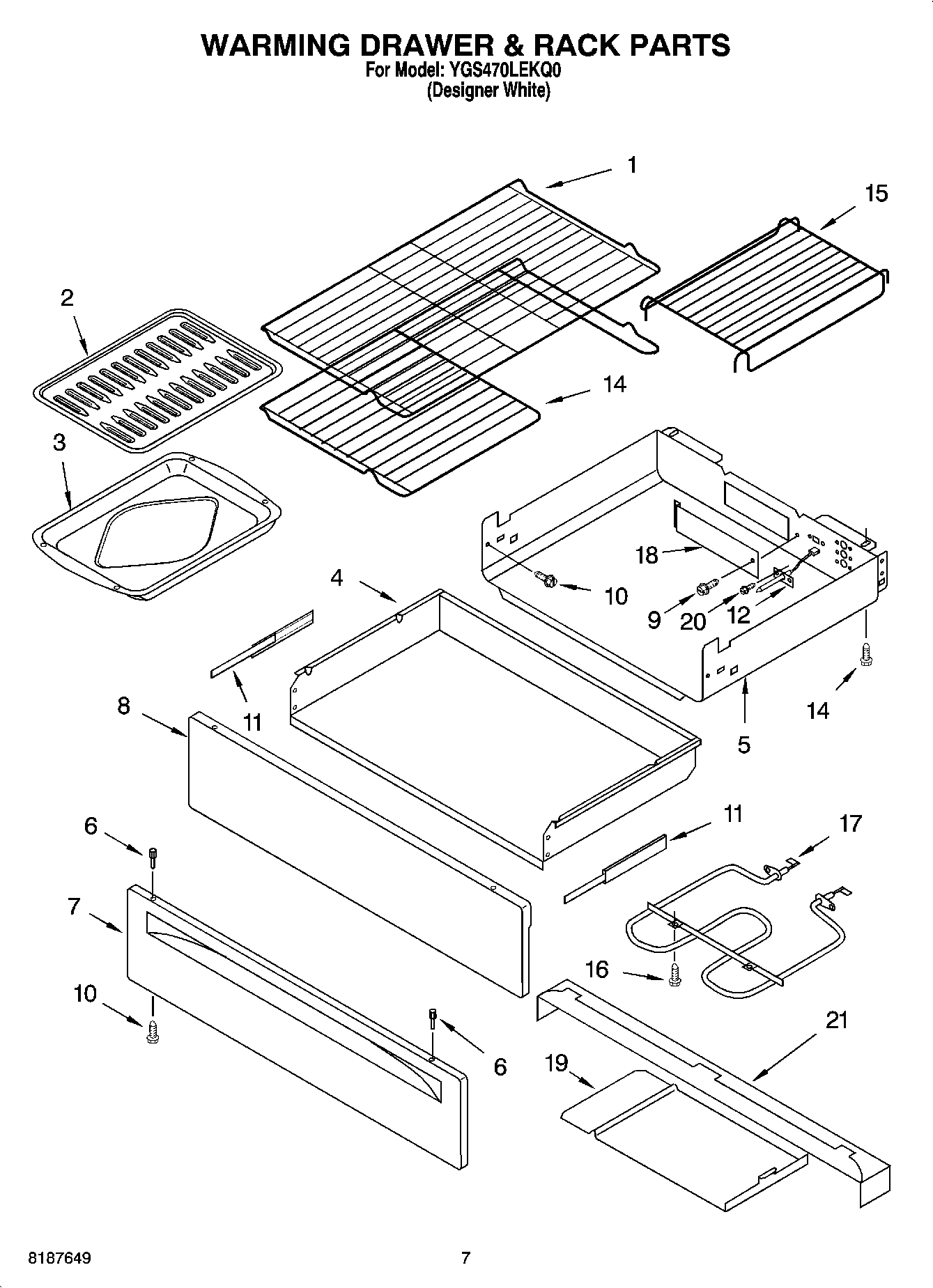

YGS470LEKQ0 05 – WARMING DRAWER & RACK PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
5Enclosure, Drawer
6WP3196814 Whirlpool Rivet
7W11230486 Whirlpool Drawer Panel
8Panel, Inner
9WPY706189 Whirlpool Stove Screw
10WP3400832 Whirlpool Screw
11Glide, Accuride (Left Hand)
11Glide, Accuride (Right Hand)
12WP8274149 Whirlpool Sensor Assembly
14WP8274021 Whirlpool Oven Rack
15WP8274022 Whirlpool Oven Rack
16SCREW
179760775 Whirlpool Oven Warm Element
18Cover, Access
19Baffle, Radiant
20WP3196170 Whirlpool Screw
21Shield, Drawer
