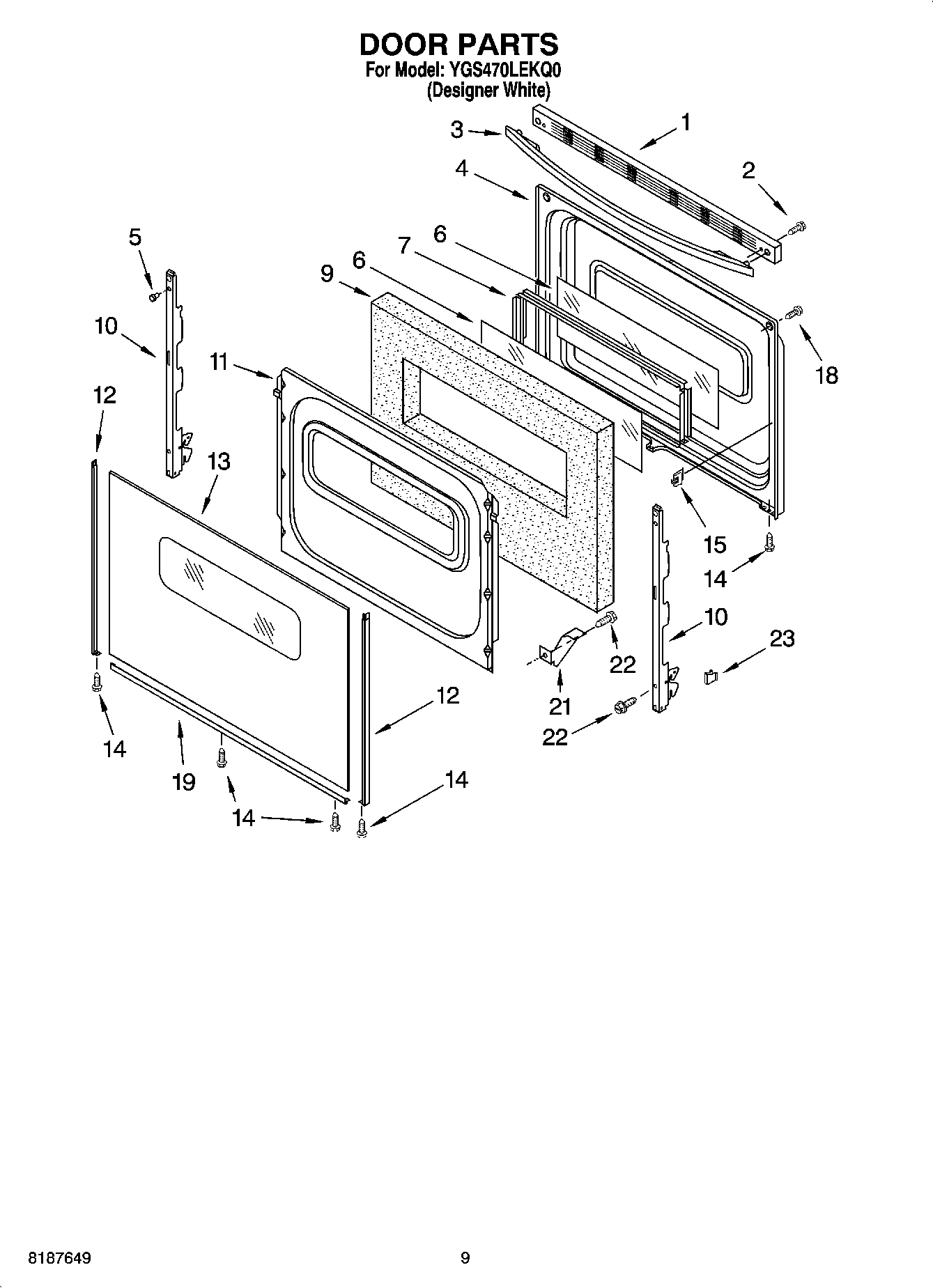

YGS470LEKQ0 06 – DOOR PARTS, MISCELLANEOUS PARTS

YGS470LEKQ0 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

YGS470LEKQ0 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI136578A
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	3196696 Whirlpool Clip
	Grease
	WPL ARI136571A
	WPL ARI136577A
	WPL ARI136576A
	WPL ARI136575A
	WPL ARI136574A
	WPL ARI136573A
	WPL ARI136572A
	WPL 8522614
	WPL 8273901
	WPL 8274195
	WPL 8053527
	3196896 Whirlpool Clip
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	WPW10208653 Whirlpool Insulation
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	799344 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Black 14 Ga.)
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	814381 Whirlpool Pin
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	Hinge, Door
11	W11539580 Whirlpool Retainer
13	WP8053834 Whirlpool Door Glass
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
