YGSC278PJB0 03 – OVEN DOOR PARTS

YGSC278PJB0 03 – OVEN DOOR PARTS

Written by

in

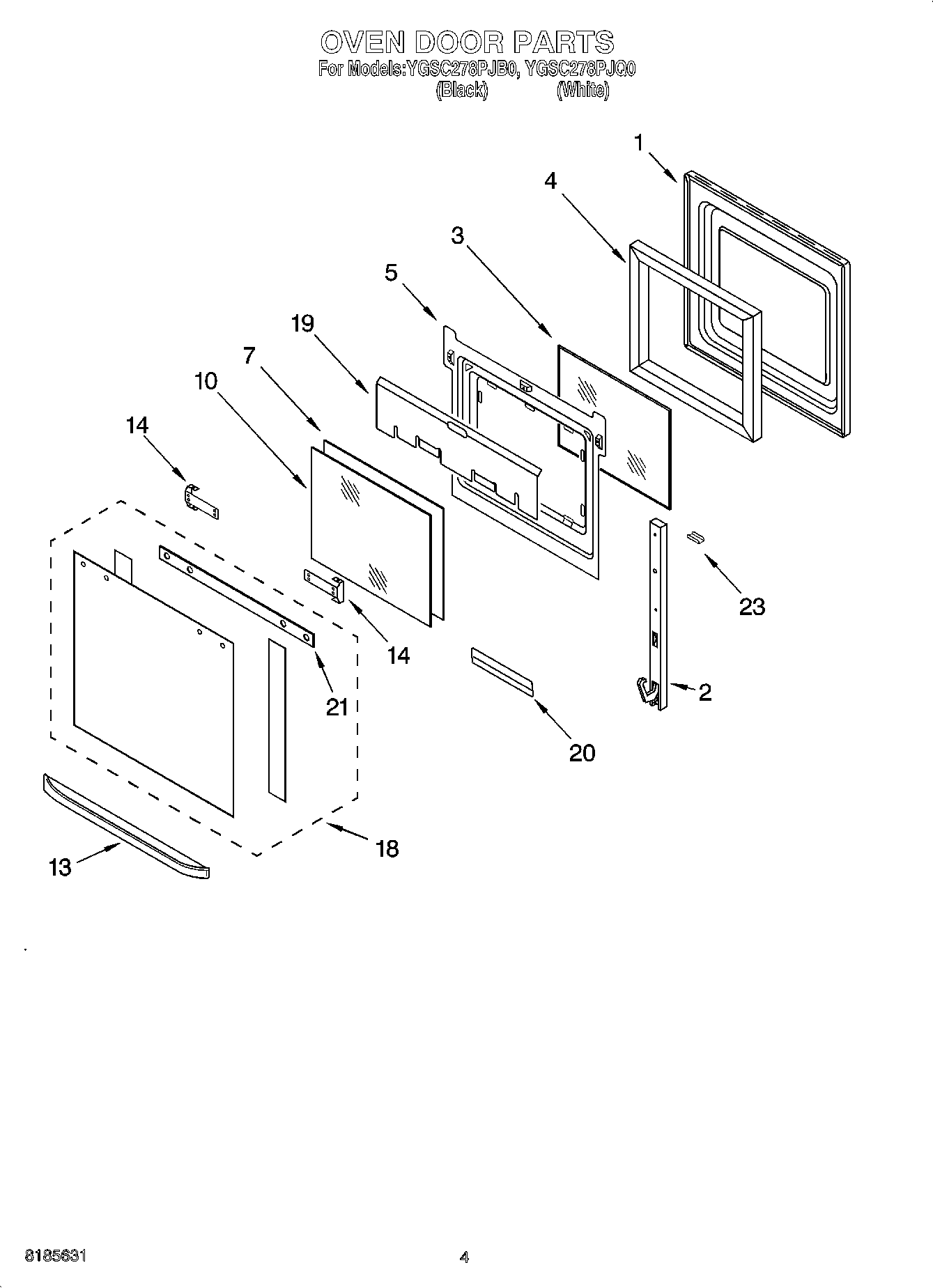

YGSC278PJB0 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
10	WP4449257 Whirlpool Door Glass
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Screw
14	Bracket, Handle
18	Door Glass Assy (Black Model)
18	Door Glass, Assy (White Model)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	WP3400832 Whirlpool Screw
