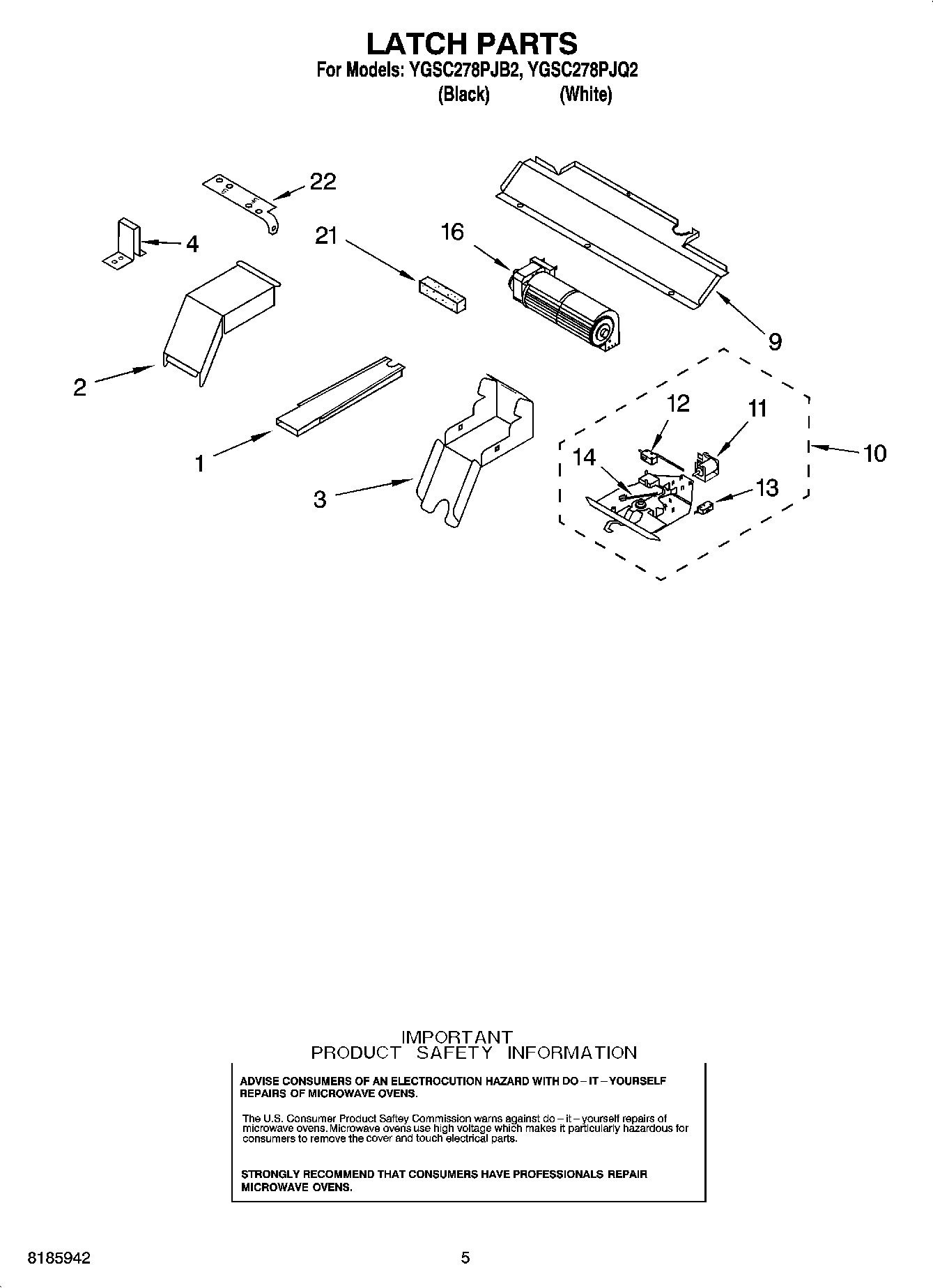

YGSC278PJB2 04 – LATCH PARTS

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	4455177 Whirlpool Oven Bottom Elbow
4	Bracket, Combo Chassis
9	WP4449809 Whirlpool Screw
9	Baffle, Rear
10	Latch Assy.
11	Solenoid
12	Microswitch N.C.
13	Microswitch
14	WP4449154 Whirlpool Screw
14	Spring, Latch
16	WPW10016550 Whirlpool Blower Cooling Fan
21	W10491987 Whirlpool Foam Seal
22	4455191 Whirlpool Oven Mounting Plate
