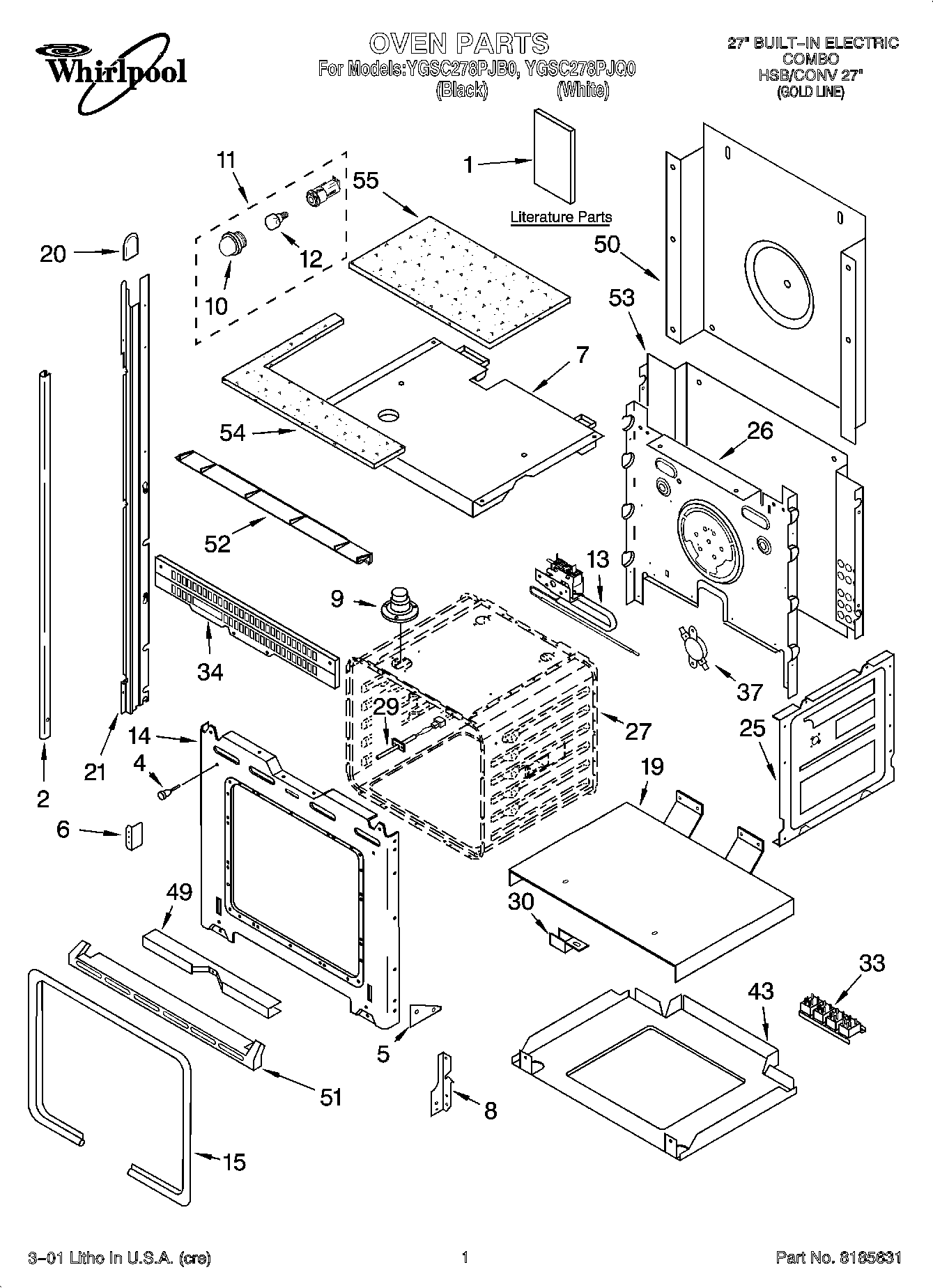

YGSC278PJQ0 01 – OVEN PARTS
Written by
in
YGSC278PJQ0 01 – OVEN PARTS
Products
Position
Product
1
Safer Cooking Tips
1
Literature Parts (Tech Sheet)
1
Literature Parts (Use & Care Guide) (Microwave)
1
Literature Parts (Use & Care Guide (Oven))
1
Cookbook, T/C Ovens
1
Literature Parts (Chart, Speed Cook (Label))
1
Literature Parts (Installation Instructions)
1
WP3400832 Whirlpool Screw
2
Trim, Side Right Hand (White)
2
Anchor, Spring (2)
2
WP694091 Whirlpool Screw
2
(Trim, Side Left Hand) (White)
2
Trim, Side Right Hand (Black)
4
4448520 Whirlpool Oven Bumper
5
WP4455509 Whirlpool Support Bracket
6
Bracket, Support
7
Top, Chassis
8
Cooktop & Bracket Assembly (Biscuit)
8
Hinge Receiver (Right Hand)
9
SCREW
9
W10861715 Whirlpool Vent Tube
10
Lens, Light
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
13
Safety Switch (Oven Temp)
14
Screw
14
Frame, Front
15
WP4455381 Whirlpool Door Gasket
19
Support, Insulation
20
Cap, Spacer
21
WP4448444 Whirlpool Grommet
21
814375 Whirlpool Oven Rail Mount
21
814376 Whirlpool Oven Rail Mount
25
Side, Chassis (R.H. & L.H.)
26
Back, Chassis
27
Liner, Oven (Not serviceable)
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
WPL 4449845
33
Bracket
33
WP9752759 Whirlpool Relay
34
WP8304106 Whirlpool Oven Vent
34
WP4450038 Whirlpool Screw
37
WP9759243 Whirlpool Thermostat
43
Base, Chassis
49
WP4448933 Whirlpool Retainer
49
WP4449154 Whirlpool Screw
50
WP4451747 Whirlpool Rear Cover
50
WP4449809 Whirlpool Screw
51
Trim, Bottom (Black)
51
Screw, (2)
51
4452152 Whirlpool Oven Mounting Bracket
51
Trim, Bottom (White)
52
Vent, Control Panel (Stainless Steel Model)
53
WPL 4451755
54
WPL 4452492
55
WPL 4452491
55
WPL 4450364
55
WPL 4449315
55
WPL ARI136603A
←
