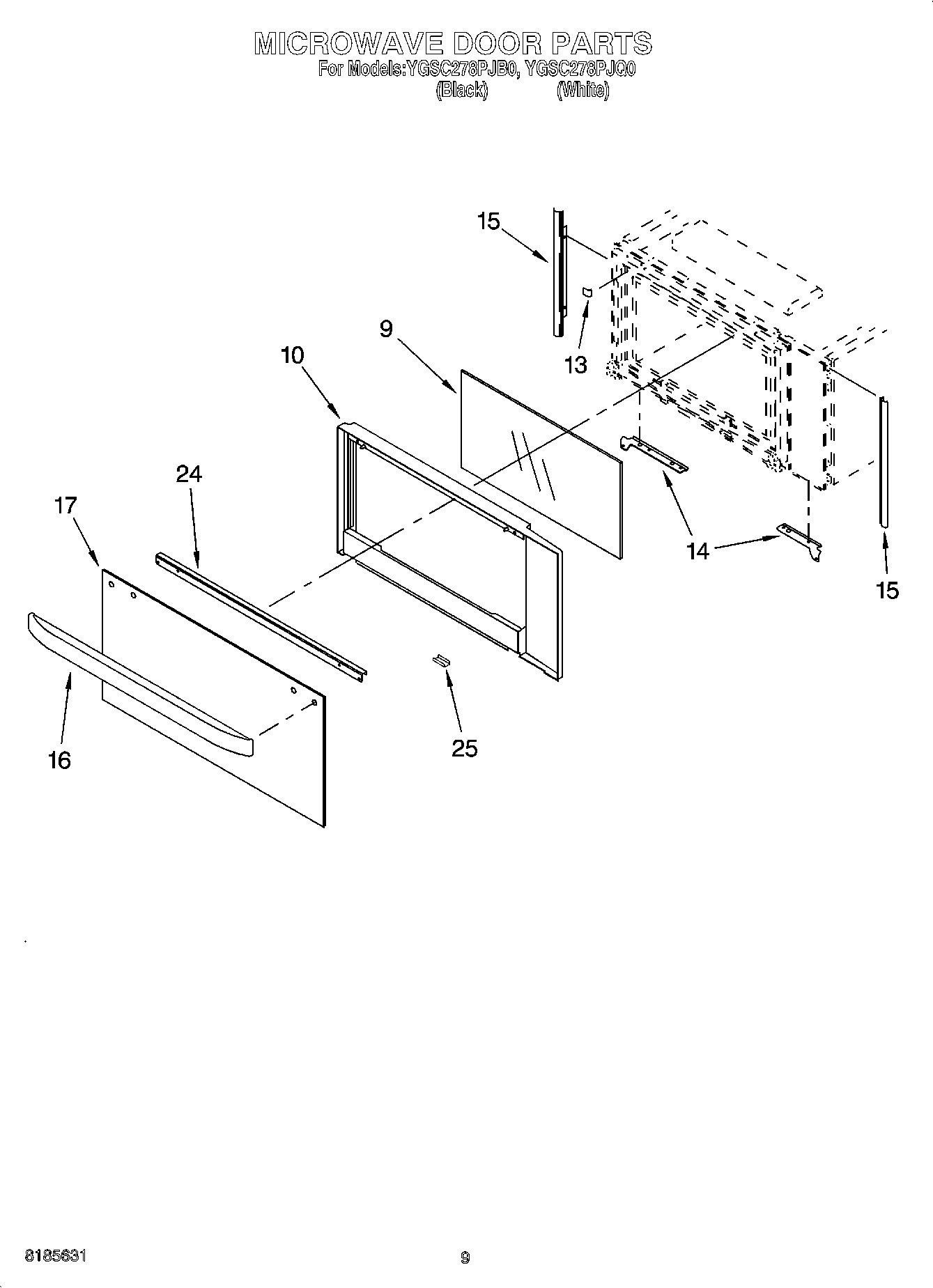

YGSC278PJQ0 07 – MICROWAVE DOOR PARTS

YGSC278PJQ0 07 – MICROWAVE DOOR PARTS

Written by

in

YGSC278PJQ0 07 – MICROWAVE DOOR PARTS

Products

Position	Product
9	Glass, Middle
10	Frame, Door
13	Tape, Foam
14	Bracket, Mounting (Left Side)
14	Bracket, Mounting (Right Side)
15	Filler, Side
15	WP4449809 Whirlpool Screw
16	Handle, Door (White Model)
16	Handle, Door (Black Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (White Model)
24	Screw
24	Bracket, Handle
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
