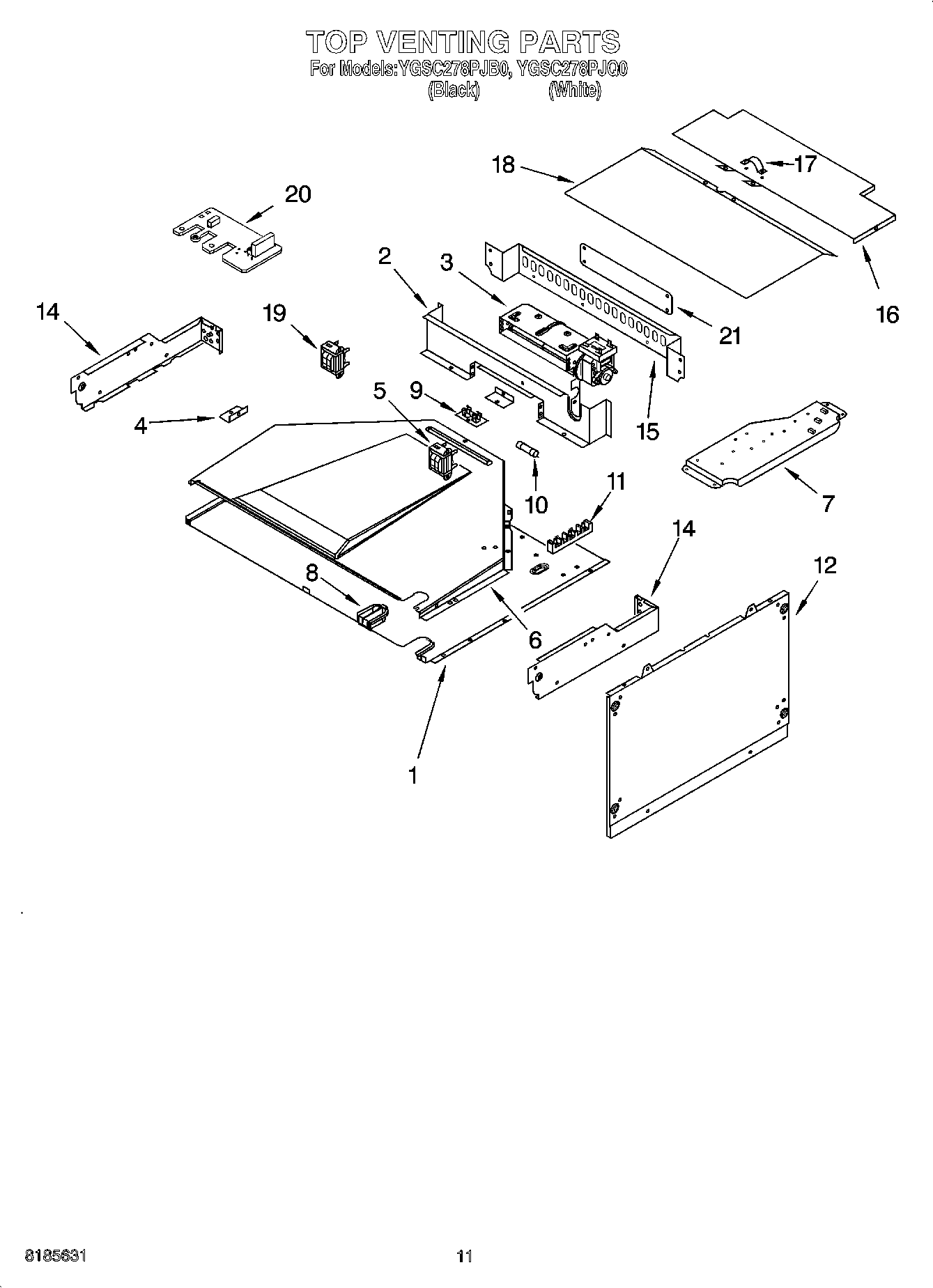

YGSC278PJQ0 09 – TOP VENTING PARTS, OPTIONAL PARTS

YGSC278PJQ0 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

YGSC278PJQ0 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI136607A
242831 Whirlpool Oven Wire
261900 Whirlpool Microwave Spray
Spacer, Harness
WPL 4454845
16515 Whirlpool Clip
Harness, Mai
4452400 Whirlpool Microwave Wire Harness
WPL ARI136604A
Wire (14 Ga. 150 c Yellow)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
WPL 591014
4450950 Whirlpool Oven Conduit
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL 4452239
Ground (M/W)
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
WP4449809 Whirlpool Screw
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
WPL ARI136605A
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WPL ARI136606A
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
Filler Kit (WH)
Filler Kit (BL)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
1Cover, Top
1WP4450118 Whirlpool Nut
2Baffle, Blower
3Blower
3489392 Whirlpool Refrigerator Screw
4Bracket, Duct
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Plate, Mounting
8WP112432 Whirlpool Nut Assembly
8Grommet
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
11WP3400016 Whirlpool Screw Assembly
12WP4450038 Whirlpool Screw
12Side, Combo
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19Transformer, Control Panel
20Suppressor
21Plate, Cover
