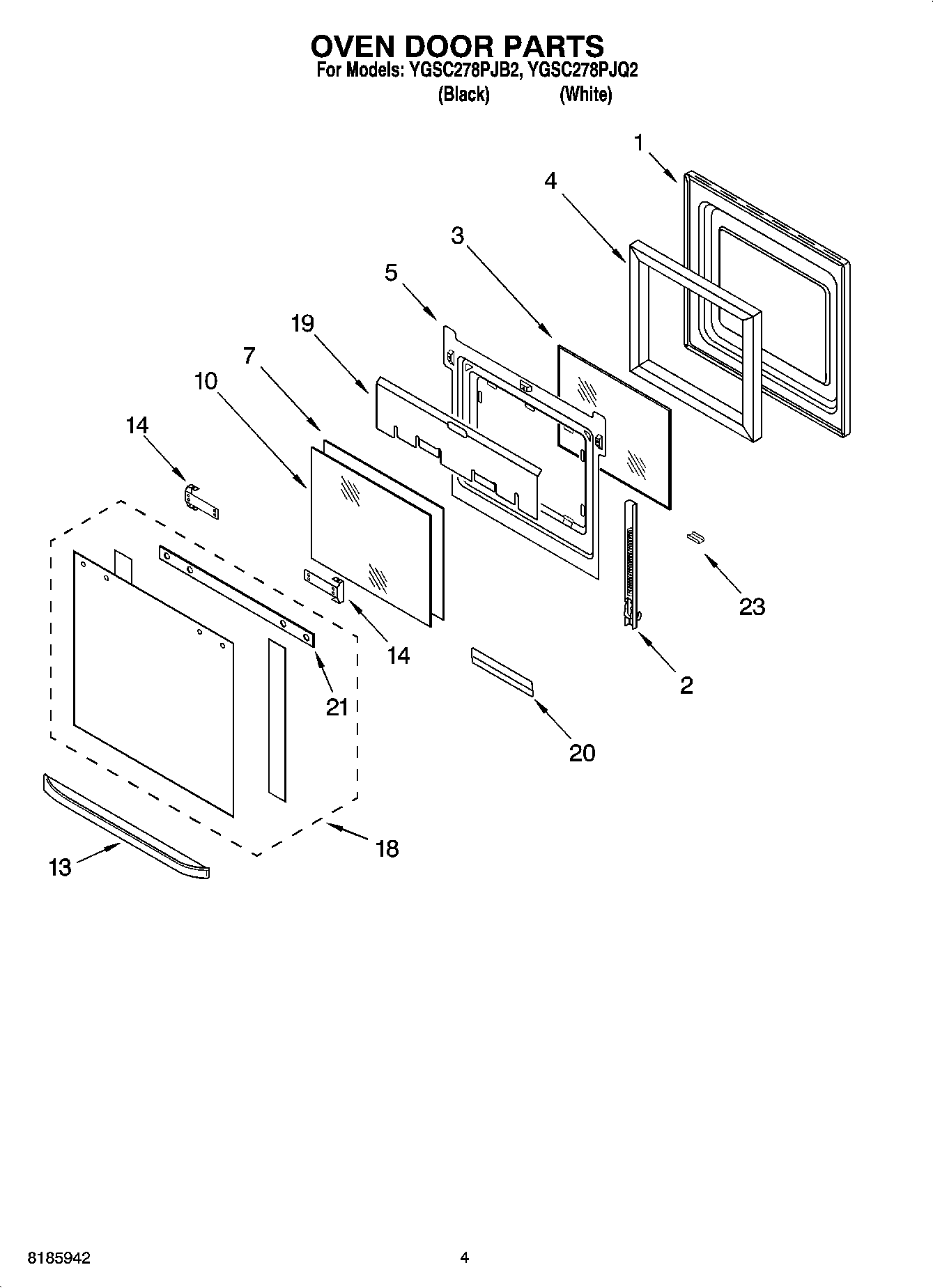

YGSC278PJQ2 03 – OVEN DOOR PARTS

YGSC278PJQ2 03 – OVEN DOOR PARTS

Written by

in

YGSC278PJQ2 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	9760569 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
10	WP4449257 Whirlpool Door Glass
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
14	Screw
14	Bracket, Handle
18	Door Glass Assy (Black Model)
18	Door Glass, Assy (White Model)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	WP4449743 Whirlpool Screw
23	Clip, Retainer (White Model)
