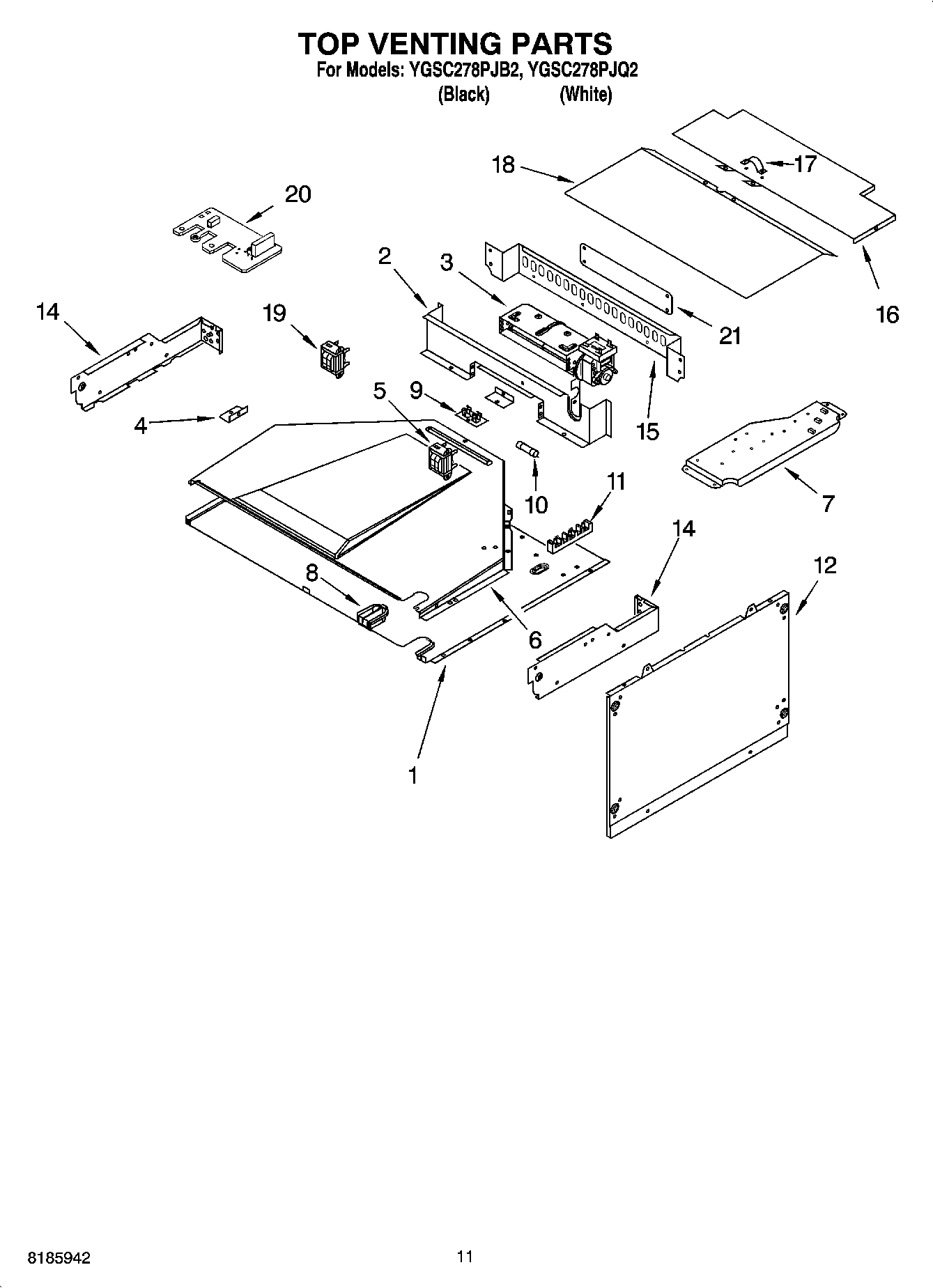

YGSC278PJQ2 09 – TOP VENTING PARTS, OPTIONAL PARTS

YGSC278PJQ2 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

YGSC278PJQ2 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI136612A
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Yellow)
Spacer, Harness
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
WPL ARI136611A
WPL ARI136610A
WPL 8300489
WPL 4454845
261900 Whirlpool Microwave Spray
4450950 Whirlpool Oven Conduit
WPL ARI136613A
WPL 591014
1
Wire (14 Ga. 200 c Brown)
WPL 4452239
Filler Kit (BL)
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
4450800 Whirlpool Oven Screw
Wire, 25“ Roll (White 14 GA.)
285006 Whirlpool Spray
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
WPW10339879 Whirlpool Wire Tie
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Ground (M/W)
Filler Kit (WH)
Wire, 25` Roll (Red 14 Ga.)
WP4449809 Whirlpool Screw
1WP4450118 Whirlpool Nut
1Cover, Top
2Baffle, Blower
3Blower
4Bracket, Duct
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Plate, Mounting
8Grommet
8WP112432 Whirlpool Nut Assembly
9WP4449154 Whirlpool Screw
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
12Side, Combo
12WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19Transformer, Control Panel
20Suppressor
21Plate, Cover
