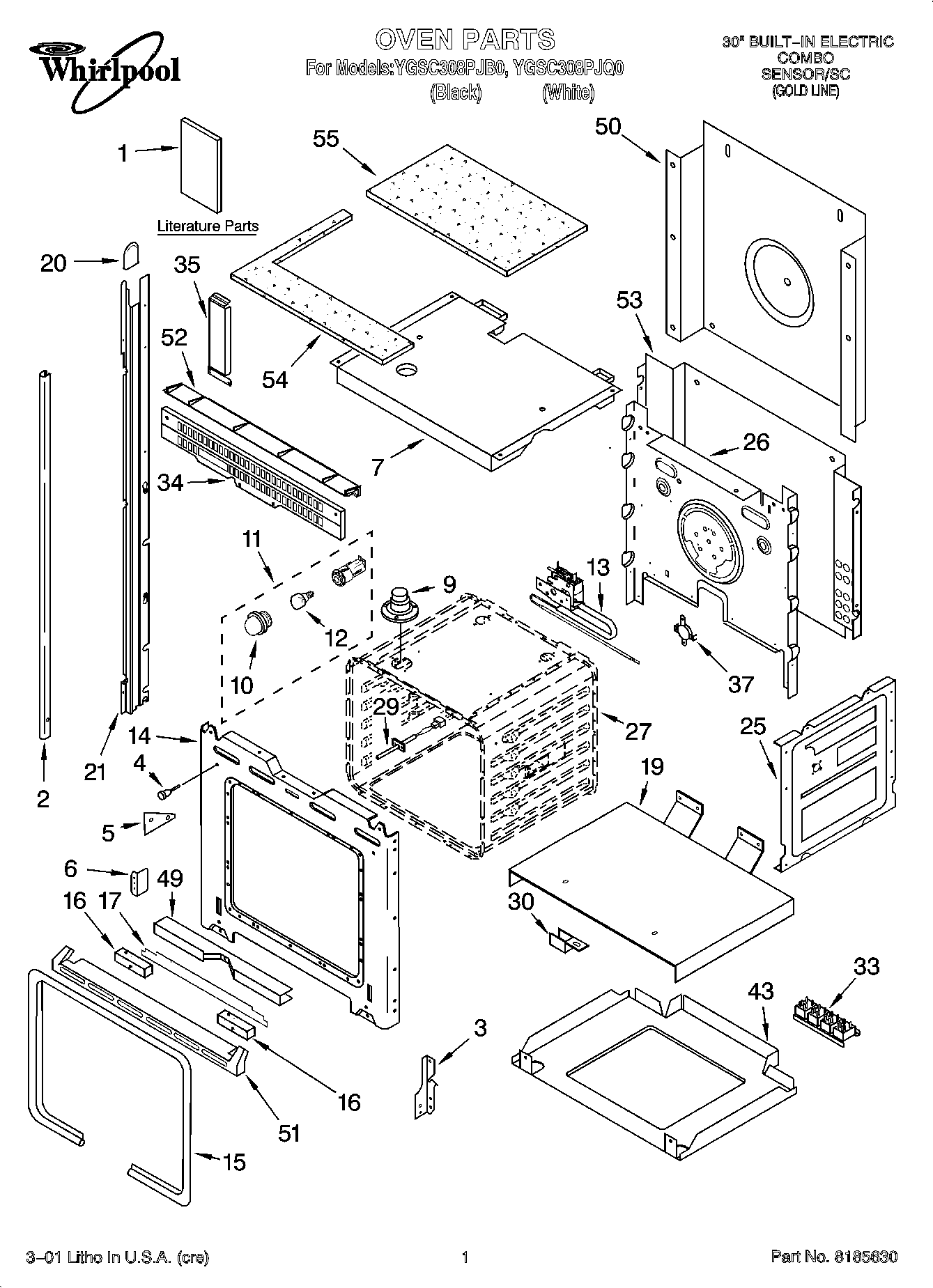

YGSC308PJB0 01 – OVEN PARTS

YGSC308PJB0 01 – OVEN PARTS

Written by

in

YGSC308PJB0 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Cookbook, T/C Ovens
1Literature Parts (Chart, Speed Cook (Label))
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide) (Microwave)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Microwave)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (White)
2WP694091 Whirlpool Screw
2Trim, Side (RH Stainless Steel)
2Trim, Side (LH Stainless Steel)
2(Trim, Side Left Hand) (Black)
2Trim, Side Right Hand (Black)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Bracket, Support
6WP3400832 Whirlpool Screw
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Safety Switch (Oven Temp)
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Bracket
33WP9752759 Whirlpool Relay
34WPL 4451667
34WP4450038 Whirlpool Screw
35Extension Filler
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455445
51Trim, Bottom (Screw)
51WPL 4455443
52Vent-Cntrl Panel
534452152 Whirlpool Oven Mounting Bracket
53WPL 4451756
54WPL 4452492
55WPL 4452491
55W11684730 Whirlpool Insulation
55WPL ARI136615A
55WPL 4450365
