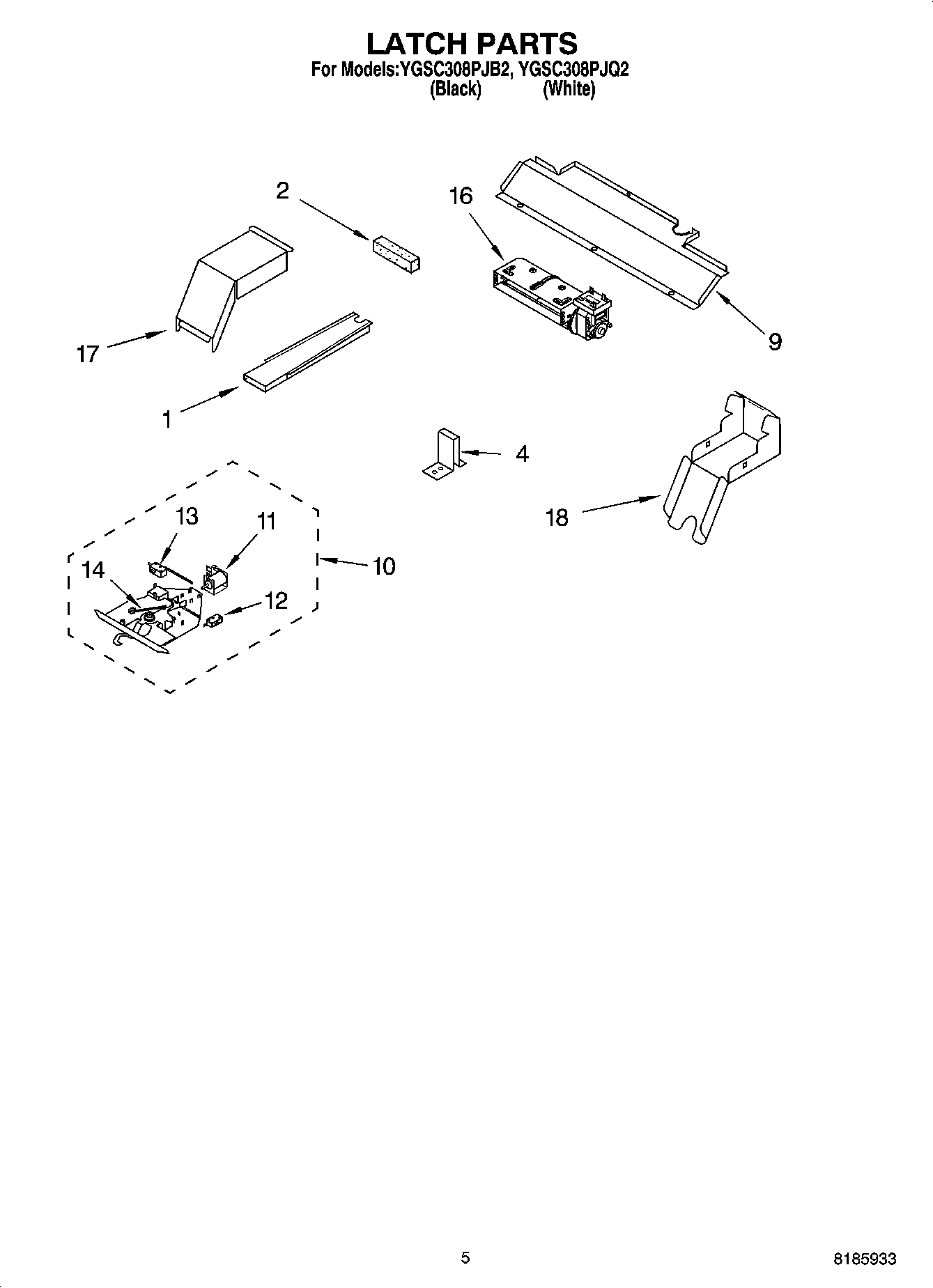

YGSC308PJB2 04 – LATCH PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	W10491987 Whirlpool Foam Seal
4	Bracket, Combo Chassis
4	WP4449809 Whirlpool Screw
9	Baffle, Rear
9	WP4449154 Whirlpool Screw
10	Latch Assy.
11	Solenoid
12	Microswitch N.C.
13	Microswitch
14	Spring, Latch
16	489392 Whirlpool Refrigerator Screw
16	Blower
17	4455178 Whirlpool Oven Top Elbow
18	4455177 Whirlpool Oven Bottom Elbow
