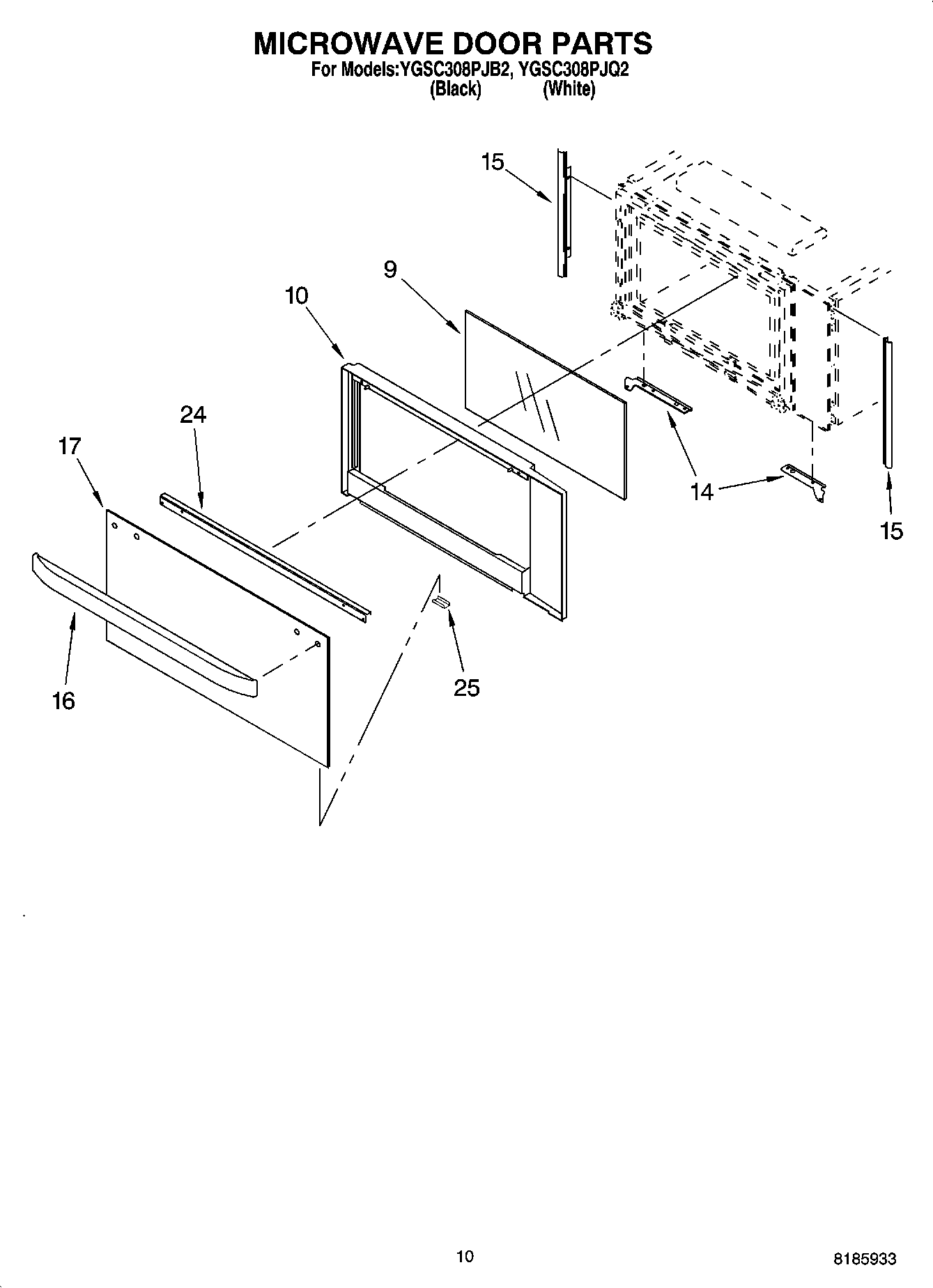

YGSC308PJB2 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
9Glass, Middle
10WP4450038 Whirlpool Screw
10WP8303556 Whirlpool Microwave Door Frame
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15WP4449809 Whirlpool Screw
15Filler, Side
15Filler, Side (Left Side)
16Door Handle (White Model)
16Door Handle (Black Model)
17Glass, Outer (Black)
17Glass, Outer (White)
24Bracket, Handle
24Screw
25Clip, Retainer (Black Model)
25Clip, Retainer (White Model)
