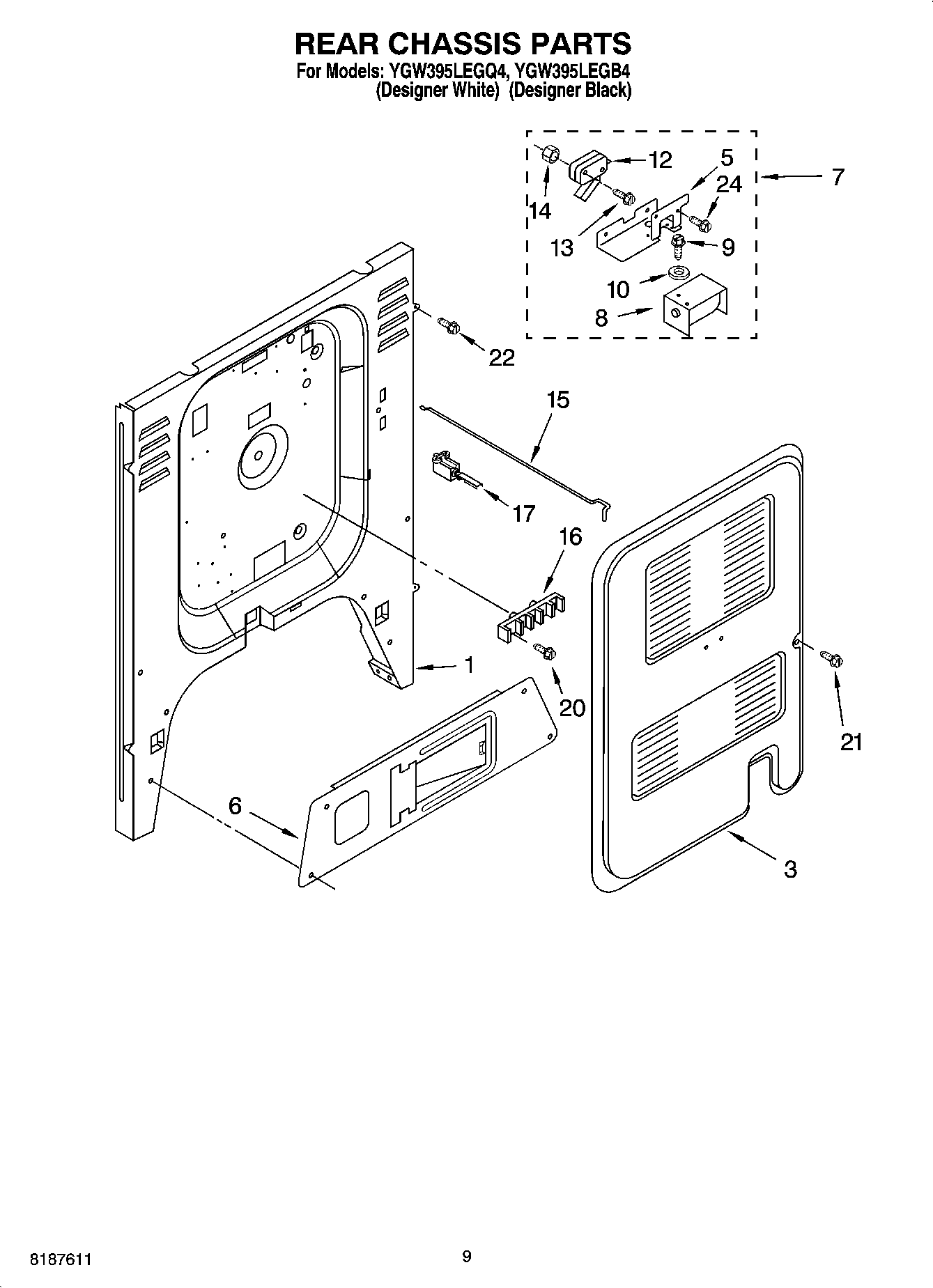

YGW395LEGB4 07 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

YGW395LEGB4 07 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Written by

in

YGW395LEGB4 07 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI136648A
WPL 9753101
WPL 9753054
WPL 9752769
WPL 9753267PW
WPL 9752717
WPL 9751868
Grease
Insulation
WPL 9750744
Insulation, Rear
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
WPL 9753158
WPL 9753267PB
WPL 9753267PT
WPL ARI136647A
WPL ARI136646A
WPL ARI136645A
WPL ARI136644A
WPL ARI136643A
WPL ARI136642A
WPL ARI136641A
WPL ARI136640A
WPL ARI136639A
WPL ARI136638A
WPL 9782125
WPL 9781055
WPL 9754013
18 Ga. 80~c Rating (Red)
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
285006 Whirlpool Spray
8528351 Whirlpool Clip
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 9751745
3400964 Whirlpool Oven Clip
Hanger, Cable
Wire, 25` Roll (Black 14 Ga.)
WA906B Whirlpool Cooktop Glass Scraper
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
242831 Whirlpool Oven Wire
Almond (Uncut)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Blue)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Green)
1Back panel, Chassis
3Panel, Rear Cover
5Bracket, Lock
6Bracket, Regulator Valve
7Oven Lock Assembly (Includes No.21)
8Solenoid
9Screw (2) 10-32 x 5/16
10Washer (2)
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
16WP8203546 Whirlpool Terminal Block
17Single Position Device (Not Serviced)
20Screw, (2) 10-16 x 1
21340184 Whirlpool Screw
22Screw (4) 10 x 3/8
24WP4159387 Whirlpool Compactor Screw
