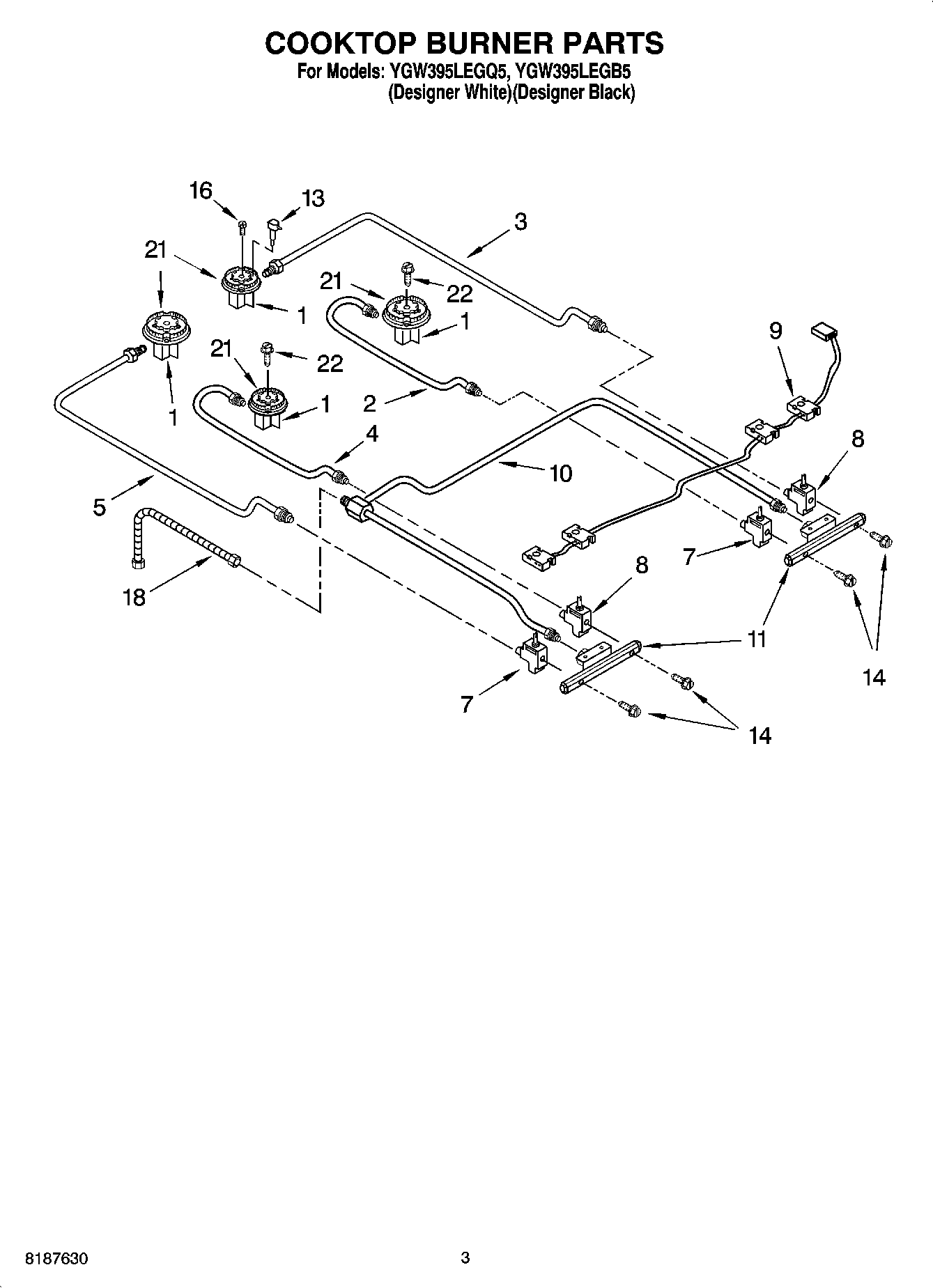

YGW395LEGB5 03 – COOKTOP BURNER PARTS

YGW395LEGB5 03 – COOKTOP BURNER PARTS

Written by

in

YGW395LEGB5 03 – COOKTOP BURNER PARTS

Products

PositionProduct
1Burner Base w/Orifice (Large (2))
1Orifice Holder (Includes Orific & Ignitor) (Auxi)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
7Valve, Burner Small (2)
8Valve, Burner Large (2)
9Spark Switch & Harness Assembly
10Tube, Manifold
11Manifold (Right Hand)
11Manifold (Left Hand)
13WP9754215 Whirlpool Surface Igniter
14Bolt (Gas Valve)
16WP9753928 Whirlpool Orifice Assembly
16WP9753929 Whirlpool Orifice
18Tubing, Flex
21WP4455979 Whirlpool Range Small Burner Head
21WP4455981 Whirlpool Burner Head
22WPW10067840 Whirlpool Screw
