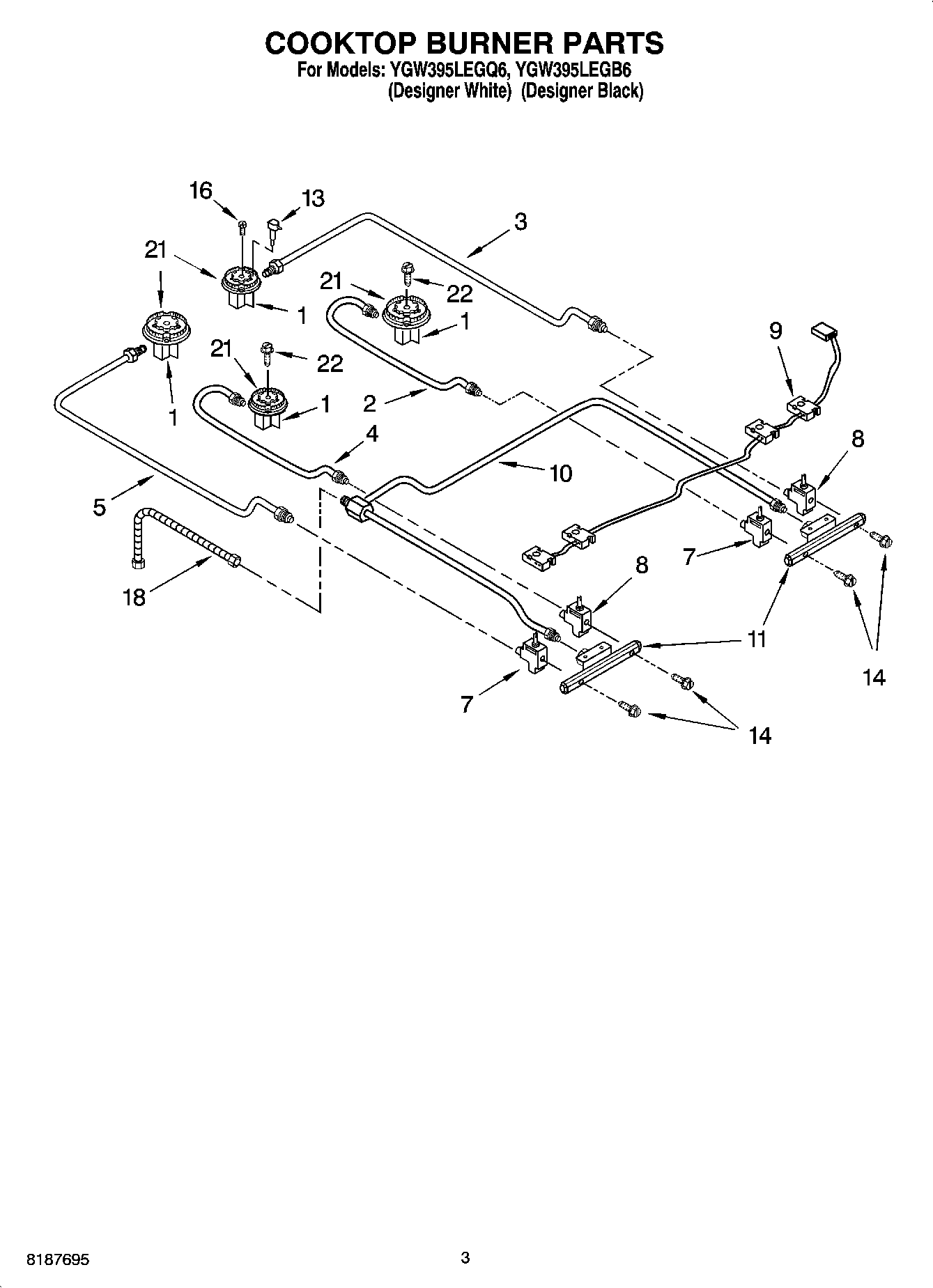

YGW395LEGB6 03 – COOKTOP BURNER PARTS

YGW395LEGB6 03 – COOKTOP BURNER PARTS

Written by

in

YGW395LEGB6 03 – COOKTOP BURNER PARTS

Products

PositionProduct
1WPW10244714 Whirlpool Orifice Holder
1Burner Base w/Orifice (Small (2))
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
7Valve, Burner Small (2)
8Valve, Burner Large (2)
9WP9755451 Whirlpool Wire Harness
10Tube, Manifold
11Manifold (Left Hand)
11Manifold (Right Hand)
13WP9782116 Whirlpool Surface Igniter
14WP3186217 Whirlpool Screw
16WP9753928 Whirlpool Orifice Assembly
16WP9753929 Whirlpool Orifice
18Tubing, Flex
21WP4455981 Whirlpool Burner Head
21WP4455979 Whirlpool Range Small Burner Head
22WPW10067840 Whirlpool Screw
