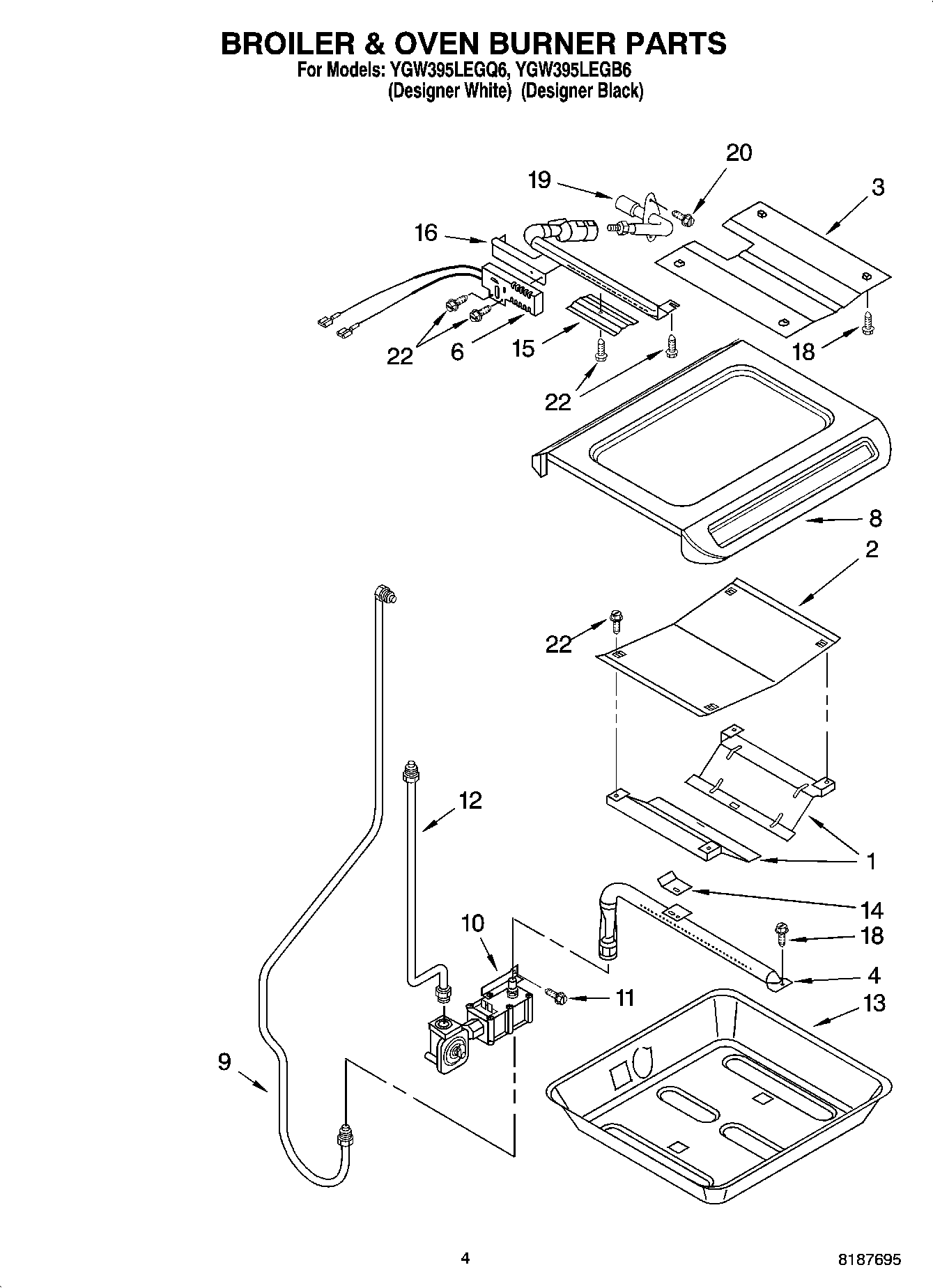

YGW395LEGB6 04 – BROILER & OVEN BURNER PARTS

Products

Position	Product
1	Shield, Oven (2)
2	Flame Shield, Bake
3	Shield, Flame
4	Burner, Bake
6	WP9782065 Whirlpool Oven Igniter
8	Pan, Oven Bottom
9	Tubing, Broil
10	WP9755424 Whirlpool Gas Valve
11	Screw. 1/4-20 x 1/2 (4)
12	Tubing, Valve
13	Pan Support, Bake
14	Bracket, Bake
15	Deflector, Broil
16	Burner, Broil
18	Screw, 10-24 x 1/2
19	Fitting, Broiler
20	WP4159387 Whirlpool Compactor Screw
22	Screw, 10 x 3/8
