YGW395LEGB6 07 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

YGW395LEGB6 07 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Written by

in

YGW395LEGB6 07 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI136670A
WPL 9753267PT
WPL 9753267PB
WPL 9753054
WPL 9753267PW
WPL 9752717
WPL 9782111
WPL 9751868
8212471 Whirlpool Oven Paint
Insulation
WPL 9750744
Insulation, Rear
WPL ARI136661A
1
WPL 9754013
WPL 9781055
WPL 9754289
WPL ARI136669A
WPL ARI136668A
WPL ARI136667A
WPL ARI136666A
WPL ARI136665A
WPL ARI136664A
WPL ARI136663A
WPL ARI136662A
WPL ARI136660A
WPL 9782454
WPL 9782345
WPL 9782344
WPL 9755256
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
350930 Whirlpool White Spray Paint
3400964 Whirlpool Oven Clip
WPL 9751745
Clip, Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WA906B Whirlpool Cooktop Glass Scraper
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
242831 Whirlpool Oven Wire
Grease
Wire (12 Ga. 150 c Black)
Almond (Uncut)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
8528351 Whirlpool Clip

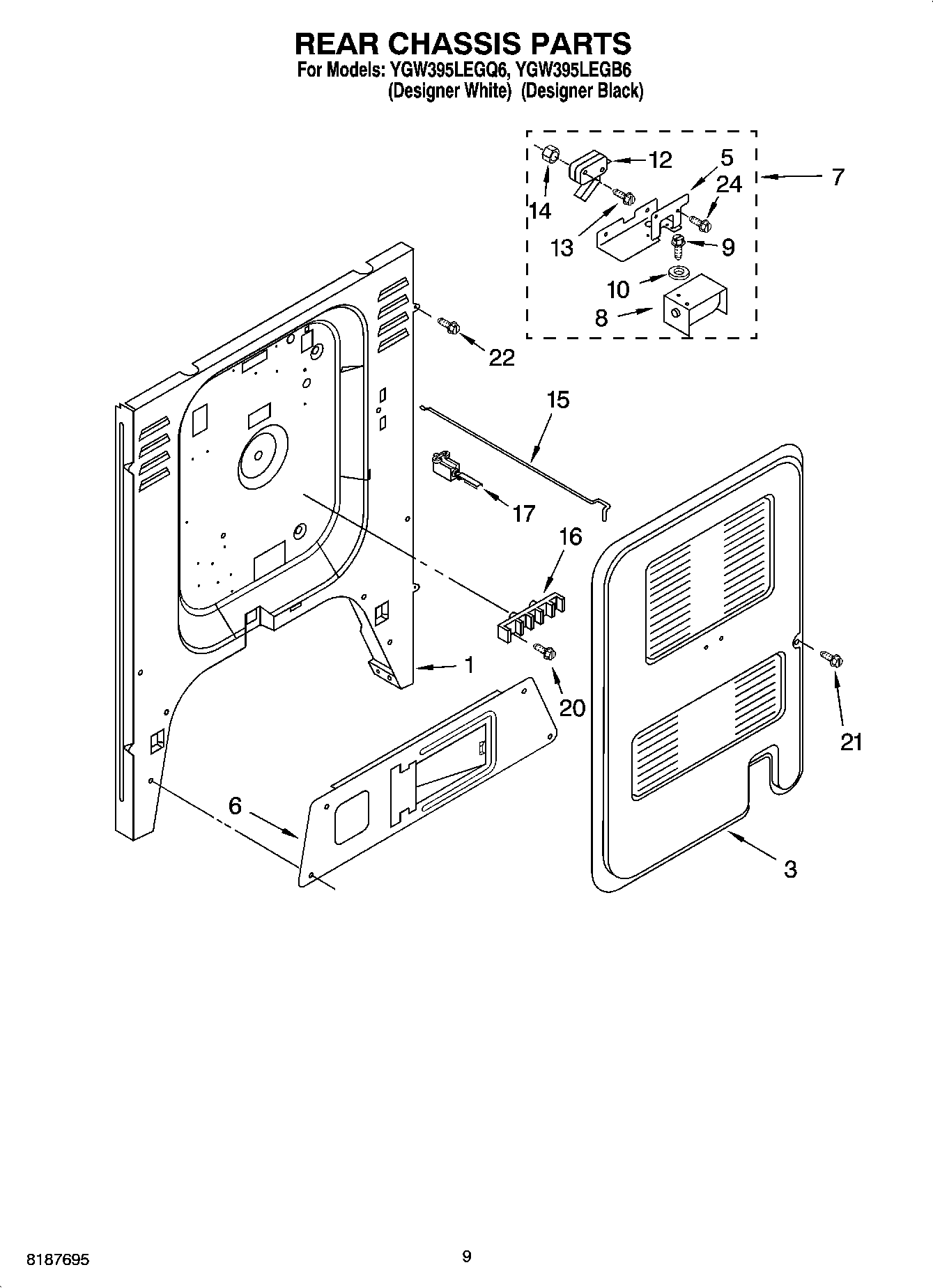

1Back panel, Chassis
3Panel, Rear Cover
5Bracket, Lock
6Bracket, Regulator Valve
7Oven Lock Assembly (Includes No.21)
8Solenoid
9Screw (2) 10-32 x 5/16
10Washer (2)
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
16WP8203546 Whirlpool Terminal Block
17Single Position Device (Not Serviced)
20Screw, (2) 10-16 x 1
21340184 Whirlpool Screw
22Screw (4) 10 x 3/8
24WP4159387 Whirlpool Compactor Screw
