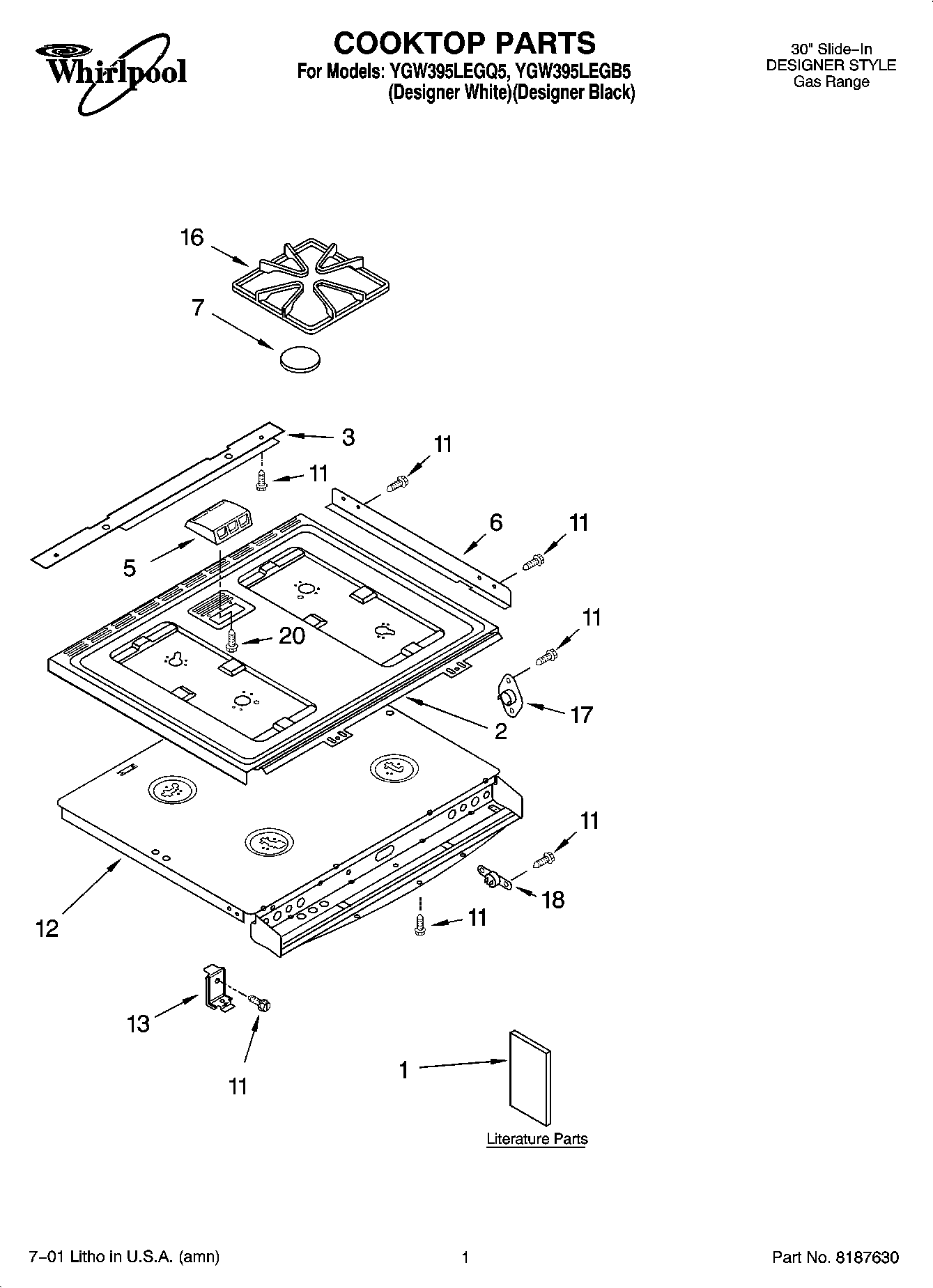

YGW395LEGQ5 01 – COOKTOP PARTS

YGW395LEGQ5 01 – COOKTOP PARTS

Written by

in

YGW395LEGQ5 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Template, Anti-Tip)
1Literature Parts (Use & Care Guide)
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions (LP Conversion))
1Literature Parts (Service Instr.)
1Literature Parts (Back Cover Install Instructions)
2Cooktop, Gas (Black)
2Cooktop, Gas (White)
3Trim, Rear
5Cap, Vent (White)
5Cap, Vent (Black)
6Trim, Side (2)
7WP3191898 Whirlpool Surface Burner Cap Black
7WP3191904 Whirlpool Burner Cap
7WP3191905 Whirlpool Burner Cap
7Cap, Burner 6K (1) (Gray)
11WP4159387 Whirlpool Compactor Screw
12Support, Cooktop
13Washer, Pivot
13Bracket, Pivot
16WPW10447925 Whirlpool Grate Kit
16WP8053456 Whirlpool Burner Grate
17WP9759944 Whirlpool Thermostat
18Thermostat SPST (205)
20Screw, 10-24 x 1/2
